Reverse/5th Switch

Reply Subscribe

Thread Tools

Search this Thread

05-19-06, 09:05 AM

#51

Pele

Right near Malloy

iTrader: (28)

Join Date: Dec 1999

Location: Behind a workbench, repairing FC Electronics.

Posts: 7,841

Likes: 1,009

Received 510 Likes on 345 Posts

7 AMPS for two light bulbs?!? That's insanity.

What else is it powering back there?

Reply Like

05-19-06, 10:13 AM

#52

Icemark

Former Moderator. RIP Icemark.

Join Date: Apr 2001

Location: Rohnert Park CA

Posts: 25,896

Likes: 0

Received 19 Likes on 19 Posts

Quote:

Originally Posted by Pele

7 AMPS for two light bulbs?!? That's insanity.

What else is it powering back there?

actually 5.8333333333 amps at 12 volts.

Remember those reverse lights are 35 watts each

Reply Like

05-19-06, 11:37 AM

#53

88rxn/a

tom port.. AKA streetport

iTrader: (6)

Join Date: Jan 2005

Location: ludlow, pa

Posts: 4,659

Likes: 0

Received 0 Likes on 0 Posts

Quote:

Originally Posted by Boostmaniac

I'm going to have to try Icemark's idea.

But could you be a little more informative about this repair because I'm not understanding the relay thing. Maybe a step by step would be more appropriate..... and I do so love pictures

search under my name and reverse lights...i got pictures but they are very out of focus..but you can tell where the harness is...the wire (for me) was baried in the harness...it splits off into 3 doferent directions...2 go to the CPU and 1 goes toward the clutch and into the engine bay..search for it in the one that goes toward the engine bay..thats where i found mine...

Reply Like

05-19-06, 11:55 AM

#54

Wankel7

Haven't we ALL heard this

Join Date: Mar 2001

Location: Indiana

Posts: 3,948

Likes: 0

Received 1 Like on 1 Post

Reply Like

05-19-06, 02:43 PM

#55

Boostmaniac

Senior Member

Join Date: Mar 2006

Location: Louisville, Ky

Posts: 675

Likes: 0

Received 0 Likes on 0 Posts

where you got that, even I have no idea.

Thanks for the info.

Reply Like

05-19-06, 05:39 PM

#56

Wankel7

Haven't we ALL heard this

Join Date: Mar 2001

Location: Indiana

Posts: 3,948

Likes: 0

Received 1 Like on 1 Post

http://i8.photobucket.com/albums/a47/S5_wiring/

Enjoy

Reply Like

02-08-07, 01:06 PM

#57

Richter12x2

Taste great, more filling

iTrader: (1)

Join Date: Feb 2005

Location: Dallas, TX

Posts: 2,012

Likes: 0

Received 0 Likes on 0 Posts

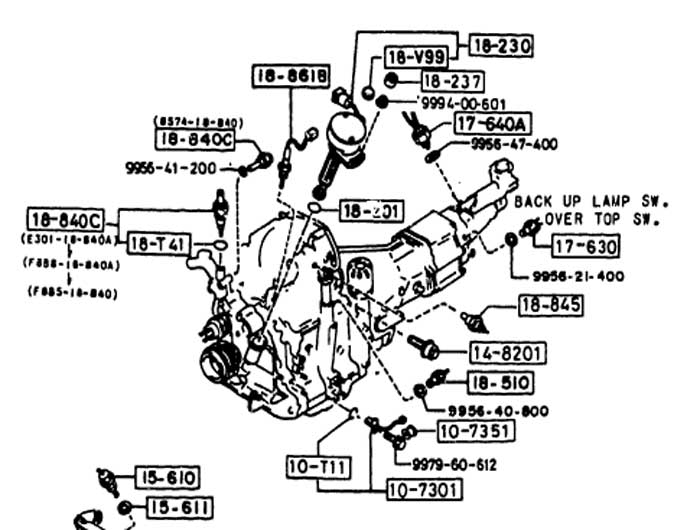

The sensors on my NA transmission are totally shot - I installed the one at the top in the picture, and that's just fine - but I'm looking for the OTHER transmission sensor for the NA transmission - two wires and mounts on the driver's side - anyone have any ideas of a source, and part number?

Again, NOT the sensor on the top, but the OTHER sensor for the NA.

Thanks in advance!

Reply Like

02-08-07, 01:59 PM

#58

Richter12x2

Taste great, more filling

iTrader: (1)

Join Date: Feb 2005

Location: Dallas, TX

Posts: 2,012

Likes: 0

Received 0 Likes on 0 Posts

I've got two part numbers from Mazda, listed as -

M502-17-640A - SWITCH,NETURAL

and

8130-17-640C - SWITCH

Any idea how to tell which one crosses to the Beck Arnley number 201-1660 above, so I can order the other one?

Reply Like

02-08-07, 02:08 PM

#59

Richter12x2

Taste great, more filling

iTrader: (1)

Join Date: Feb 2005

Location: Dallas, TX

Posts: 2,012

Likes: 0

Received 0 Likes on 0 Posts

It looks like 17-630 is the one I need, I just thought I'd use my "Ask the Audience" lifeline before I made it my final answer. Can I get a couple of "Looks right to me" 's before I place the order?
