Replacing turbo coolant feed line gasket

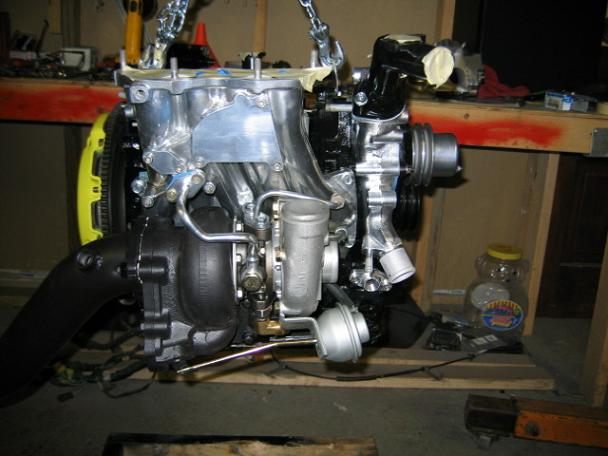

Hey guys im just wondering how i go about replacing the coolant feed line gasket as shown in the picture
I see the two bolts there but im wondering will i have to replace all the coolant as well and will the line be able to move so i can replace the gasket or do i need to take the whole turbo off.

https://www.rx7club.com/attachment.p...hmentid=101340

the far left line going to the turbo

Last edited by marshp; 12-07-06 at 03:33 PM.
Old 12-07-06, 05:47 PM
  #2
Registered Rx7 Owner

Thread Starter

marshp's Avatar

Join Date: Apr 2002
Location: Vancouver
Posts: 230
Likes: 0
Received 0 Likes on 0 Posts
note, the picture is not my engine, just an example to show you which part i mean
my engine is still in the bay
Old 12-07-06, 06:09 PM
  #3
#FakeCarEnthusaist

iTrader: (10)

Brody8877's Avatar

Join Date: Sep 2005
Location: San Francisco
Posts: 1,814
Received 9 Likes on 9 Posts
you do not need to remove the turbo to replace the coolant feedline, but you do need to drain you coolant before you do it. Otherwise there will be alot of coolant dripping down.
Also the line is able to move slightly to put in new gasket. Otherwise unbolt the banjo bolt for the coolant line.
