Replacement dash connectors and pins?
05-19-10, 08:33 PM
#1
Full Member
Thread Starter
Join Date: Jul 2002
Location: Grande Prairie AB Canada
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Replacement dash connectors and pins?
Searched a bit but could not find where to find connectors and more importantly just the pins? any leads would be a big help.
05-19-10, 08:35 PM
#2
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
you may be better off to get a harness.
I know what you are going through,and I wasn't gonna spend "20 weeks" to rewire,repin etc a Freakin Harness,..Life is too short!
I know what you are going through,and I wasn't gonna spend "20 weeks" to rewire,repin etc a Freakin Harness,..Life is too short!
05-19-10, 08:48 PM
#3
"thats a space peanut"
Join Date: Jan 2010
Location: Southern California
Posts: 45
Likes: 0
Received 0 Likes
on
0 Posts
ive seen alot of conectors, pins and such at Radio Shack(not sure what its called in Canada), you could probably try there. If they dont carry it they can direct you someplace that will....
05-19-10, 09:07 PM
#4
Full Member
Thread Starter
Join Date: Jul 2002
Location: Grande Prairie AB Canada
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts
Called the "SOURCE" now but ill check it out, just wasn't to sure if the connectors would accept a generic pin or if they had to be from a RX-7 original connector.
05-20-10, 09:00 AM
#5
Rotary Enthusiast
What specifically are you looking for? There was a thread posted about this. Read it and you should find what you need for everything but the ECU and switch gear.
https://www.rx7club.com/showthread.p...ical+terminals
Radioshack is definitely not going to have what you need. If anyone finds a source for the 2.8mm (.110) width terminals for things like the headlamp and wiper switches, Logicon, etc, please let us know.
https://www.rx7club.com/showthread.p...ical+terminals
Radioshack is definitely not going to have what you need. If anyone finds a source for the 2.8mm (.110) width terminals for things like the headlamp and wiper switches, Logicon, etc, please let us know.
05-20-10, 03:16 PM
#6
Full Member
Thread Starter
Join Date: Jul 2002
Location: Grande Prairie AB Canada
Posts: 82
Likes: 0
Received 0 Likes
on
0 Posts

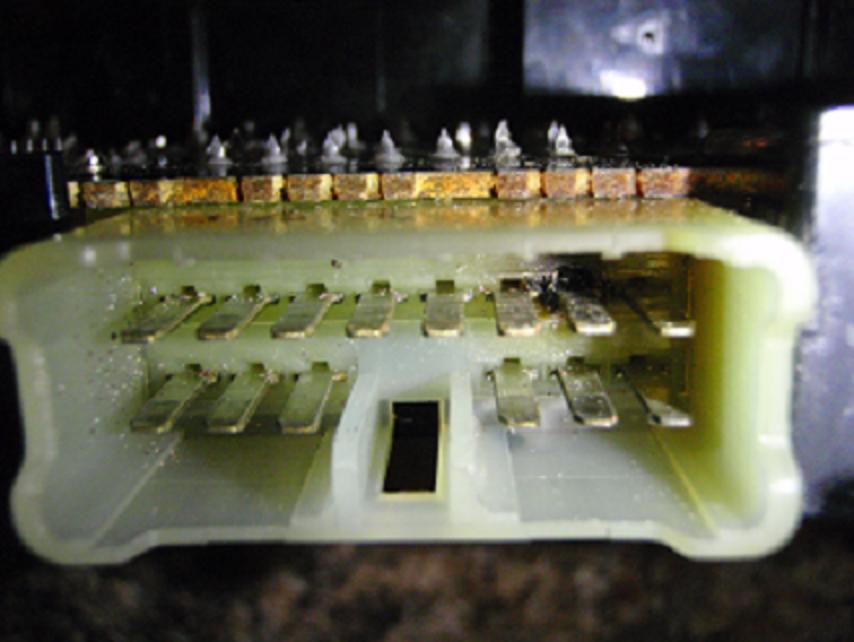

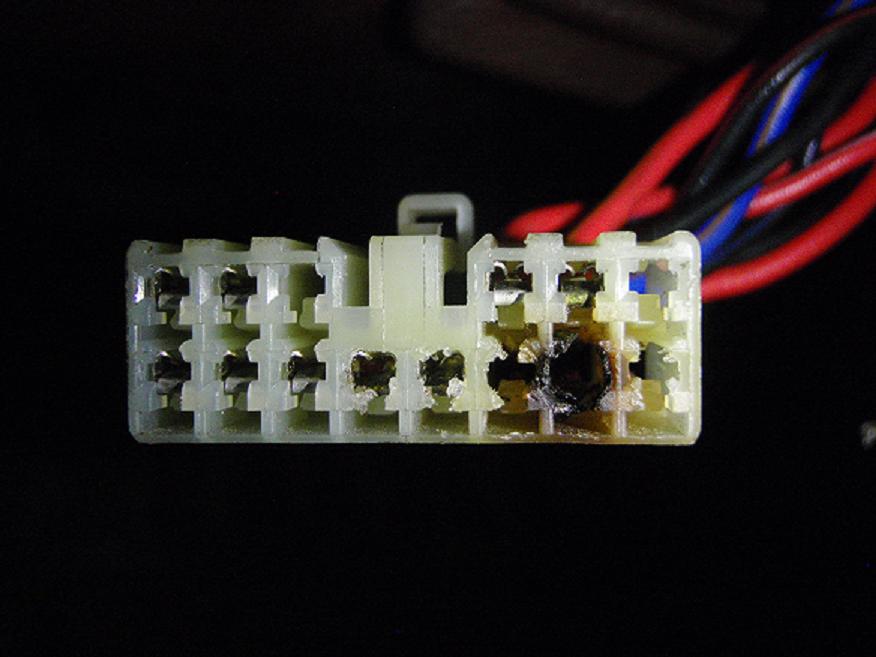

cant seam to track down a solution to this. Just need lights on original switch to pass inspection. I had taken the pins out (thrown away) and just went to a toggle switch but the inspector did not like that idea so that why they are missing.
05-20-10, 07:27 PM
#7
Rotary Enthusiast
.110, which I'm still looking for. You could salvage pins from other harnesses. When you rebuild/replace the harness, I suggest wiring in a relay to protect the harness from burning out again.
https://www.rx7club.com/2nd-gen-archive-72/heavy-duty-light-switch-operation-how-too-prevent-burnout-164931/
Also, the headlight switch may have cold solder joints, you can rebuild the switch. https://www.rx7club.com/2nd-gen-archive-72/write-up-rebuilding-your-headlight-switch-383384/
https://www.rx7club.com/2nd-gen-archive-72/heavy-duty-light-switch-operation-how-too-prevent-burnout-164931/
Also, the headlight switch may have cold solder joints, you can rebuild the switch. https://www.rx7club.com/2nd-gen-archive-72/write-up-rebuilding-your-headlight-switch-383384/
