removing s5 turbo
#1
Full Member
Thread Starter
removing s5 turbo
I'm trying to remove my turbo and so far I've removed the 4 nuts that connect the manifold to the block, the turbine outlet hose, and the hose that connects to the compressor outlet, but for some reason i still can't get the turbo to budge. Where else is the turbo secured to the car from?
#5
Senior Member
iTrader: (3)
Join Date: May 2008
Location: Los Angeles
Posts: 315
Likes: 0
Received 0 Likes
on
0 Posts
yeah it has oil and coolant lines. the coolant line connects to the LIM or below it... as for the oil u can remove it on top of the CHRA or remove the air pump and youll find a compression fitting.. id remove the air pump... oh yeah theres another oil line, the drain line.... it connects to your front cover. easy to spot
#6
Rotary Freak
iTrader: (6)

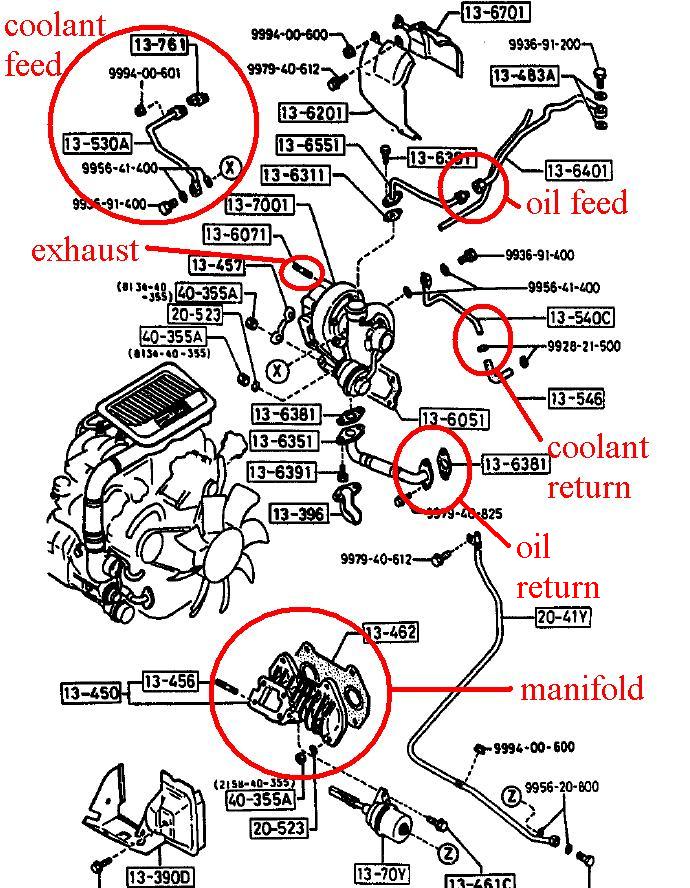

Image shows all attachments from turbo to engine. (s4 shown, s5 similar)
(coolant feed from intake manifold to turbo)
(oil feed to top of turbo attaches to feed line from driverside top of block, front iron)
(exhaust to turbo)
(coolant return line to hose)
(oil return line from bottom of turbo to bottom of block near oil metering pump)
(turbo to manifold)
(coolant feed from intake manifold to turbo)
(oil feed to top of turbo attaches to feed line from driverside top of block, front iron)
(exhaust to turbo)
(coolant return line to hose)
(oil return line from bottom of turbo to bottom of block near oil metering pump)
(turbo to manifold)
