I just got a new gauge cluster for my car. My car has 123k miles indicated by my stock odometer. The new one I got has 85k. Obviosly this isnt going to go well with the inpection station . Is it possible for me to roll the miles up by hand, or will I have to take it to Mazda or something... I hope I can just do it myself.



I'm not sure, but usually they are VERY hard to get to to change. You might be better off taking it to mazda.



Thanks, anyone else??



Its a piece of cake. Ill get some pics showing what you need to do. It will be friday before I have the time though.



OK, thanks a bunch, Id really appreciate that...



I could tell ya, but some people on the board might use it to roll back their mileage.

All you need is an AC motor, and a vacuum line



My way is a WHOLE lot easier. It took me 5 min to figure it out, take it apart, set the mileage to 000000, and put it back together.



Well I dont wanna set it to 000000, I want to set it to 123000



I did that about a year ago, don't remember exactly how I did it but I think I removed the dials, set them both, and put them back together, pretty understandable when you look at it.



Ill tell you how to do it now, but pics wont be until fri if you dont figure it out. Take the guage cluster out, and take the face off the speedo. Youll see the numbers, and there will be an e clip on one or both ends of the stack of number wheels(I dont remember which). Undo the clip, and slide the numbers off the stack one at a time, and rotate them to where you want them, and then slide it down and move onto the next one.

Its pretty intuitive once you get into it. Good luck



Im curious to how Fingers does it with a vacuum line lol.



yeah, why wouldn't you just swap 20000 miles switches and take apart and set the new one to the right mileage?? Its like a simple C clip as I remember, and very easy to do.



Icemark, read my above post. One e clip, and its ready to be changed.



Bump, its friday, awaiting pics.. I just would like to visually see what exactly to do before I try and break it... Its a S5 cluster if that matters... Thanks again..!



^^^



Lots of odometers have anti-roll back bars that fall down between the numbers and make it obvious. I guess we don't have them.

The ac motor trick just uses the vac hose to connect the armature to the speedo input and you spin the sucker at a couple hundred miles an hour for a while.



Maybe Ill try that... I didnt see any clip when I looked at the odometer, maybe I just missed it..



I didn't really look your cluster over when you showed it to me, but couldn't you just swap the whole odometer itself from the S4 to the S5 cluster? I don't know how similar they are right there, I know the other differences. But if that piece is the same on both, why not just swap the whole unit?



Rxmfn7
Humor me. What is it that the inspection station is not goin to like? Its way over my head.



The milage reading lower this year than it did last year. That looks like odometer fraud, which is a big no no..... They record the milage every time your car gets inspected. Milage reading lower this year than it did last year would raise it red flag for the state.



double post

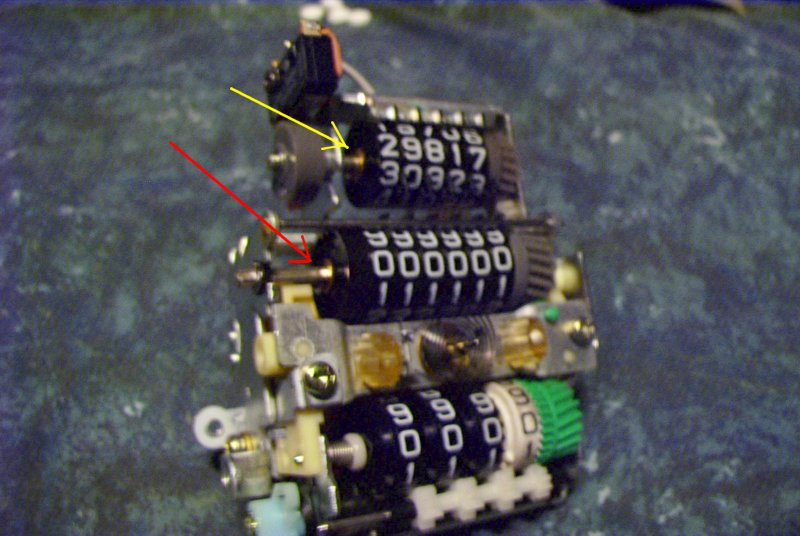

This is what you should be looking at. You remove the screws holding the speedo in the back of the guage cluster, and you remove the guage face, and youre left with this. The red arrow is the clip you need to remove to change the visible mileage. The yellow arrow points to what I believe is a secondary odometer someone could tell if the mileage was rolled back. The arrow points to the clips holding that stack of numbers in.

Changing the mileage is easy, and this goes for both of the number stacks. You remove the clip, slide the whole stack to the left, then slide the numbers to the right one at a time, turning it to the desired number. Piece of cake.



The secondary (or 20000 mile switch as it is called by the factory) should just be swapped. As I recall it just unscrews.
