rebuilt alt. still bowing main fuse

Alright let's get to the nut meat of this.....My main fuse would blow, sometimes. I would just put a new one in since needed a few days before i could do anything about it. Then the alte started snaping it's belt. Most people from the club said that the fuse blowing probem was part of the alt problem. Took the alt off. Had it rebuilt. Everything worked fine for about two weeks. Just blew the fuse again this week. Also the light on the clock dims evey now and then. Any thought's????

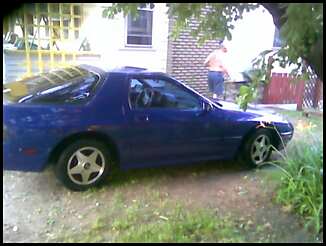

Attached Thumbnails rebuilt alt. still bowing main fuse-my-car-3.jpg
Reply
Old Oct 7, 2006 | 02:12 PM
  #2
anewconvert's Avatar
Rotary Enthusiast
Tenured Member 10 Years
iTrader: (1)

Joined: Oct 2005
Posts: 1,017
Likes: 0
From: Raleigh, NC
Sounds like you have a bad ground and you are blowing the fuse. Clean your ground on your battery


BC
Reply
Old Oct 7, 2006 | 02:30 PM
  #3
Rx7Ridah's Avatar
Senior Member
Tenured Member 15 Years
iTrader: (8)

Joined: Nov 2003
Posts: 533
Likes: 0
From: Green Bay
is it a turbo model? the problem that i have seen on a few are that the alt post wears through the boot and it hits the intercooler or motor pull hook occasionally. but it that isnt it you have something dead shorted (check between the battery-to-alt, bat-to-starter, bat-to-main fuse areas) afterwhich you will need to start diabling circuits (pulling fuses not crucial to operation) and start eliminating systems or start tearing everything apart and testing each individual relay on the main power circuit (read: most everything). when does it blow? right after starting, during starting, driving down the road?
Reply
Old Oct 7, 2006 | 10:26 PM
  #4
InABox's Avatar
Thread Starter
Full Member
Tenured Member: 20 Years

Joined: Jul 2005
Posts: 112
Likes: 0
From: Chatham ontatio
it's an na and it blows during starting
