hey after checking the fact i realized it still doesn't tell which wire is positive and which is negative can someone please clear this up for me please


What are the wire colors for adding aftermarket radio
LTBlue/Red= 12v+
LtBlue/White= +Accessory
LtBlue/Yellow= -power ant trigger
Red/Black=+ Lumination
White=Factory Amp Turn on

Ground to the body, use the 10mm bolt behind the center console front drivers access panel. Do not use the Red/Black as ground it will damage the interior light circuit and dimmer in the car

Front Speakers (maximum of a 15 watt peak from the radio):
LtGreen/Red= Left
LtGreen/Black= Left

LtGreen= Right
LtGreen/Yellow=Right

Rear Speakers (if applicable, if you have the amplified rear speakers again the Maximum of 15 watts peak is all the stock speaker amp input can handle):
Brown= Left rear
Brown/White= Left Rear

LtBlue= Right Rear
LtBlue/Orange=Right Rear

Note: as mentioned above the power antenna's trigger is ground (or - ). With all aftermarket radio's antenna output as 12 volts positive (+). To make a stock power antenna work you need a relay wired like this:

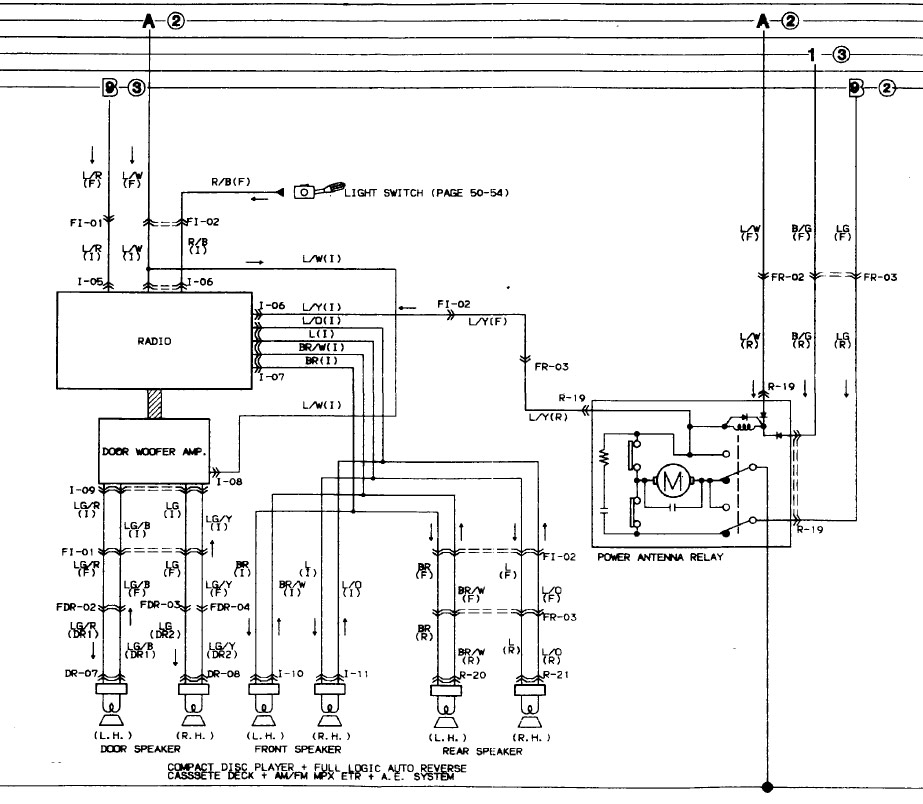

Fsm..... here ya go. Hope that helps.
