Rear Pad Install problem

ok so I am putting my brakes on the rear and the pads that I have are hawk hps brand, and on the pads it has a tab that sticks up on both the back and front pad. Now this pad hits my piston when I try to put the caliper on. Anyone have any clue WTF I do now?

Can I grind the tabs off of it? Anyone think this is a good idea?

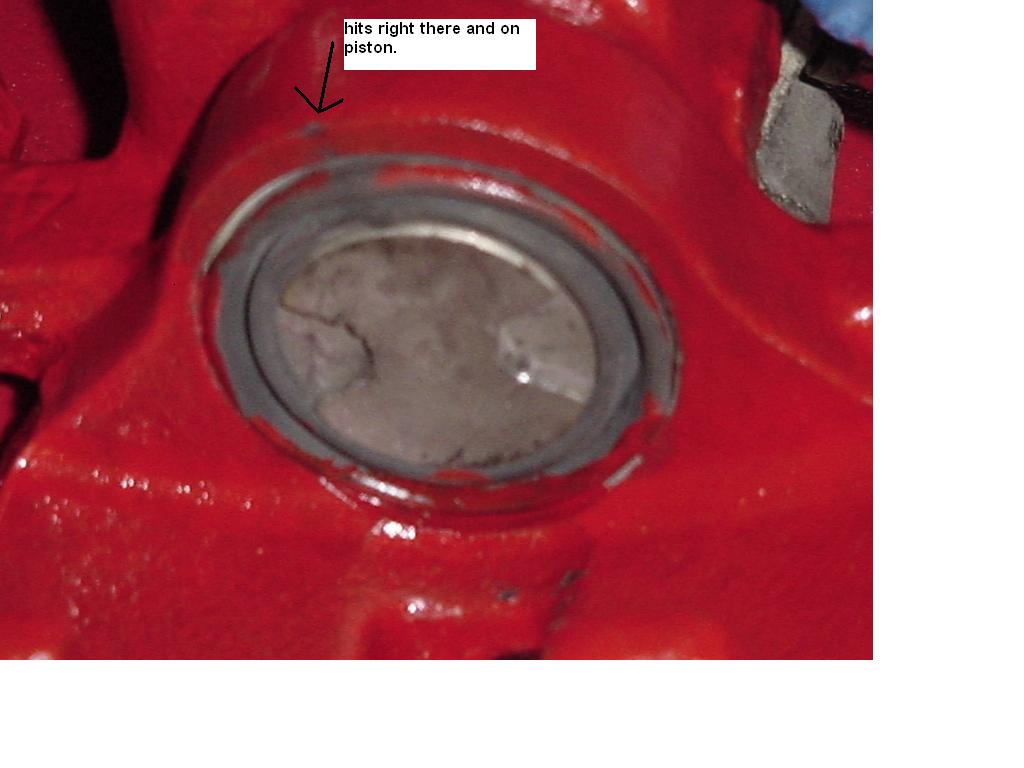

Attached Thumbnails Rear Pad Install problem-brake-tab.jpg   Rear Pad Install problem-brake-tab-contact.jpg
Reply
Old Jun 5, 2006 | 01:31 PM
  #2
90WhiteVrt's Avatar
FC4ME
Tenured Member: 20 Years

Joined: Sep 2004
Posts: 1,081
Likes: 0
From: Raleigh, NC
I would double check the pad and make sure your using the right one. Alot of guys use Hawk's on the forum and I havent heard of this problem before. If your certain that this is the right pad, then I would strongly reccomend contacting hawk before I started grinding stuff off.
Reply
Old Jun 5, 2006 | 01:45 PM
  #3
1SWEET7's Avatar
Now With 10th AE Fun!
Tenured Member 10 Years
iTrader: (1)

Joined: Jun 2005
Posts: 1,869
Likes: 1
From: CA
That tab is for the metal pad jacket to have something to hold onto, and to guide the pad onto the piston. That tab fits into the V shape on the piston I believe, but you need that jacket for it. That is how I put mine on at least.
Reply
Old Jun 5, 2006 | 03:31 PM
  #4
darksider's Avatar
Rotary Enthusiast
Tenured Member 05 Years

Joined: Aug 2005
Posts: 1,103
Likes: 0
From: OH
yeah those tabs are for the indents on the pistion. rotate the piston so that when you drop the caliper they sink with the pin type tabes.
Reply
Old Jun 5, 2006 | 03:33 PM
  #5
GXL like a mofo
Tenured Member 15 Years

Joined: Aug 2002
Posts: 125
Likes: 0
From: Milton, PA
from where it's hitting in your pics, it looks like you turned your piston too far back. the groove in the piston is supposed to line up with the tab. Turn the piston back a little counter-clockwise until it lines up. Looks like it will ony take 1/4 turn.
