rear 5 lug swap question (searched!)
#1
rear 5 lug swap question (searched!)
I'm getting ready to finish my rear 5 lug swap. I have a 5 lug rear end thats been disassembled and has questionable bearigs as well as unknown bushings. What I would like to know is if I can push the 4 lug hub off the bearing, and push the 5 lug hub on. I have a month to get the car ready for a track day so I would prefer to use my known working subframe instead of swapping the 5 lug system in and finding out bad bearings, one side dtss messed up, alignment etc etc etc.
So is it possible to press a 5 lug hub onto a 4 lug bearing?
So is it possible to press a 5 lug hub onto a 4 lug bearing?
#2
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,827
Received 2,595 Likes
on
1,843 Posts
the bearing comes apart when you press it, so not easily.
#5
Rotary Enthusiast
iTrader: (1)
Join Date: Nov 2012
Location: bloomington, mn
Posts: 1,100
Likes: 0
Received 0 Likes
on
0 Posts
so that is to say the 4 lug bearings are the same? I am doing the 5 lug conversion on mine as well, but I had already purchased brand new everything for my 4 lug in preparation to replace a stripped lug stud....
hate to purchase everything again, but it is what it is I suppose
hate to purchase everything again, but it is what it is I suppose
#6
upon searching I have located 2 Timken bearings locally to me. I dont have a problem putting them in if they come apart. I'm sure a new set of bearings would be beneficial. They have 100k miles and are 25 years old.

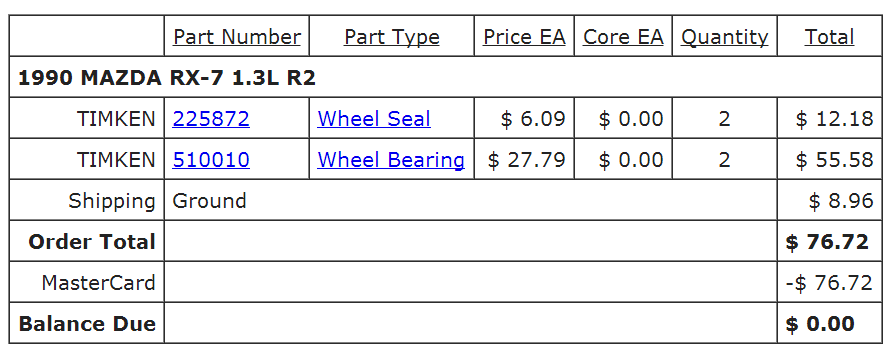

edit: i'm going to order through rockauto. Clokker, what seals do I need? and the big axle nut is one time use???
edit: i'm going to order through rockauto. Clokker, what seals do I need? and the big axle nut is one time use???
#7
Let's get silly...
iTrader: (7)
Pay close attention to the FSM on how to press the new bearings into the knuckle and the hub into the bearing or you will be doing it again in a few weeks.
I have redone rear bearings for people that where done by "reputable shops" because they pressed them together wrong.
I have redone rear bearings for people that where done by "reputable shops" because they pressed them together wrong.
Trending Topics
#8
Cake or Death?
iTrader: (2)
upon searching I have located 2 Timken bearings locally to me. I dont have a problem putting them in if they come apart. I'm sure a new set of bearings would be beneficial. They have 100k miles and are 25 years old.
edit: i'm going to order through rockauto. Clokker, what seals do I need? and the big axle nut is one time use???
edit: i'm going to order through rockauto. Clokker, what seals do I need? and the big axle nut is one time use???
The axle nut is staked after tightening, so yes, it's one time use.
I got mine from Mazdatrix, @$9 apiece.
