Random Relay wired in dash
So I bought a black s5 dash and am working on putting it in my s4. I was running through all the wiring to make sure it was all good and matched up and I noticed at the driver side main blue plugs a relay is wired in, it is obviously not factory cause all the electrical tape. Its not to important cause I can just remove it and rewire the crap but does anyone by chance know what purpose this might serve?
#2
Former Moderator. RIP Icemark.
probably either a supplemental relay for the parking lights or relay for an aftermarket alarm
What color wires are hooked up to what pins
What color wires are hooked up to what pins
#3
Rotary Enthusiast
Thread Starter
iTrader: (9)
Join Date: Sep 2006
Location: Nashville, TN
Posts: 1,003
Likes: 0
Received 0 Likes
on
0 Posts
red with green stripe and red with black stripe are cut and running directly into relay, Plain red and black with green stripe are spliced into but circuit is not interupted.
#4
Former Moderator. RIP Icemark.
R/G and R/B are for the dash lights and running lights.
Can you list the pins? The should be numbered 87 (top), 87a (middle), 30 (bottom), 86 (left) 85 (right).
Sounds like the wired the relay in to turn on the parking lights or dash lights... perhaps the light switch or light switch harness has failed or is burnt???
Can you list the pins? The should be numbered 87 (top), 87a (middle), 30 (bottom), 86 (left) 85 (right).
Sounds like the wired the relay in to turn on the parking lights or dash lights... perhaps the light switch or light switch harness has failed or is burnt???
#5
Rotary Enthusiast
Thread Starter
iTrader: (9)
Join Date: Sep 2006
Location: Nashville, TN
Posts: 1,003
Likes: 0
Received 0 Likes
on
0 Posts
I removed the relay and reconnected the stock wiring, I did not observe what pins they were coming from before I put it in. I guess I will just find out if it works when I finish my interior work.

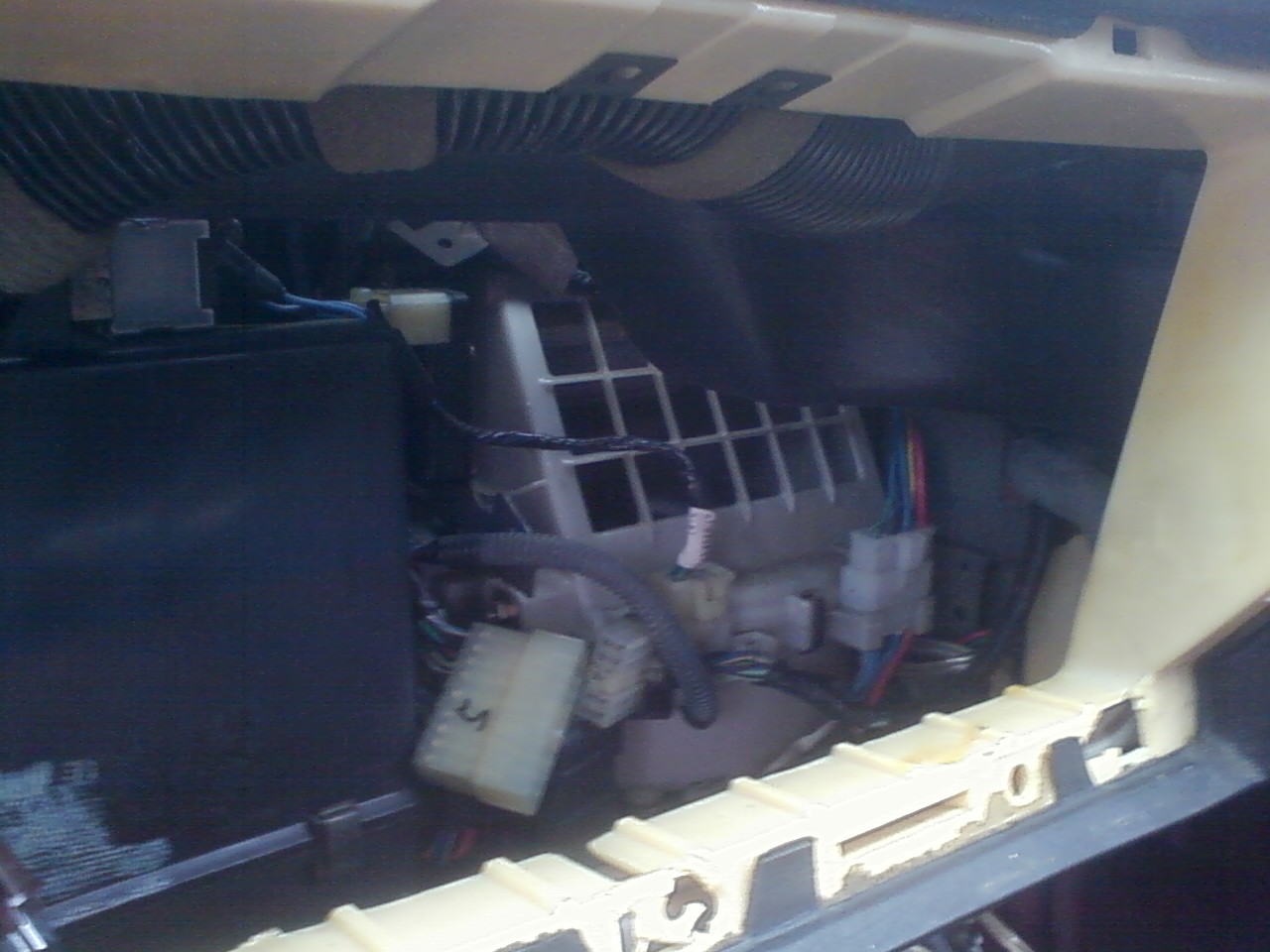

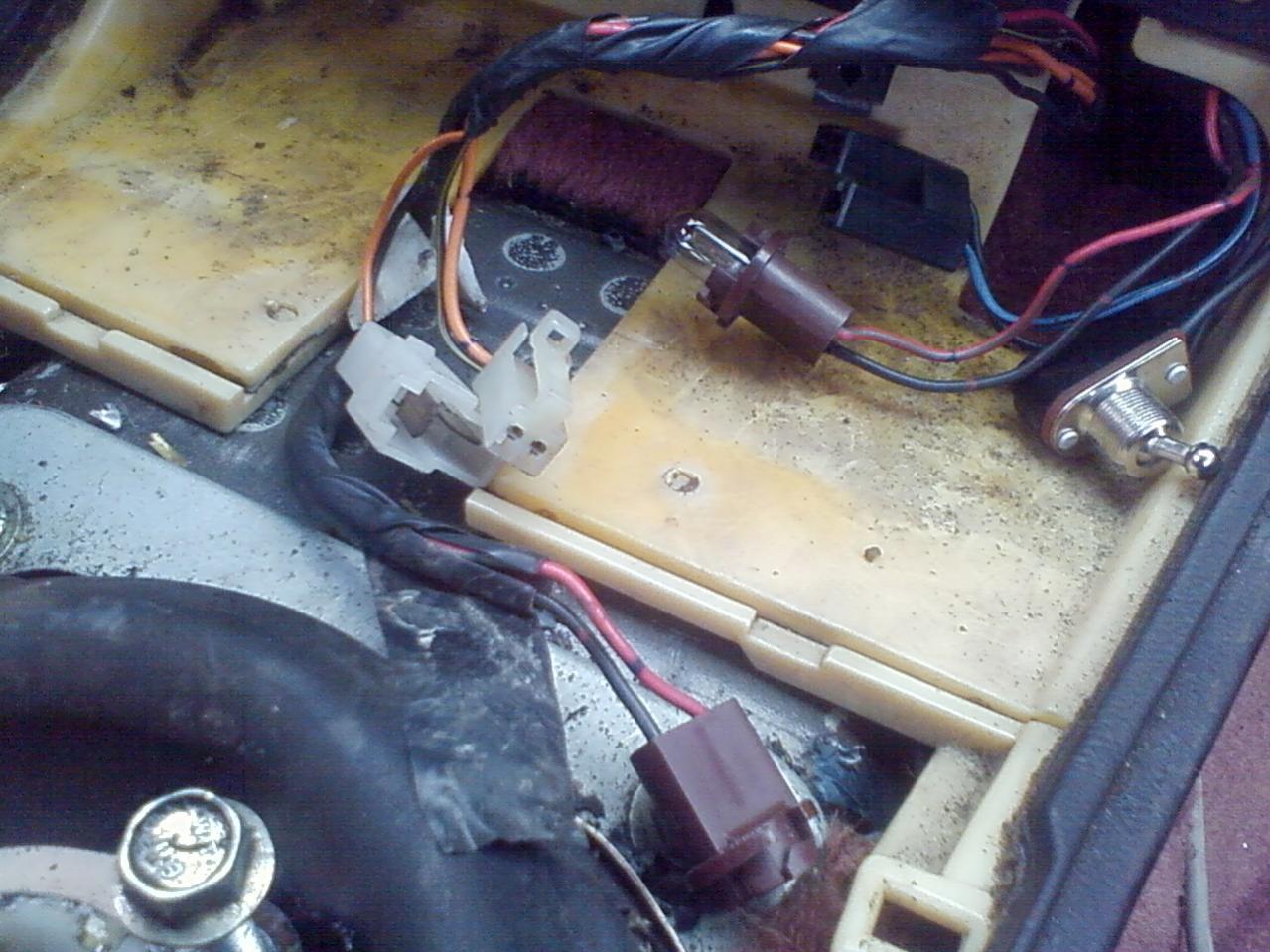

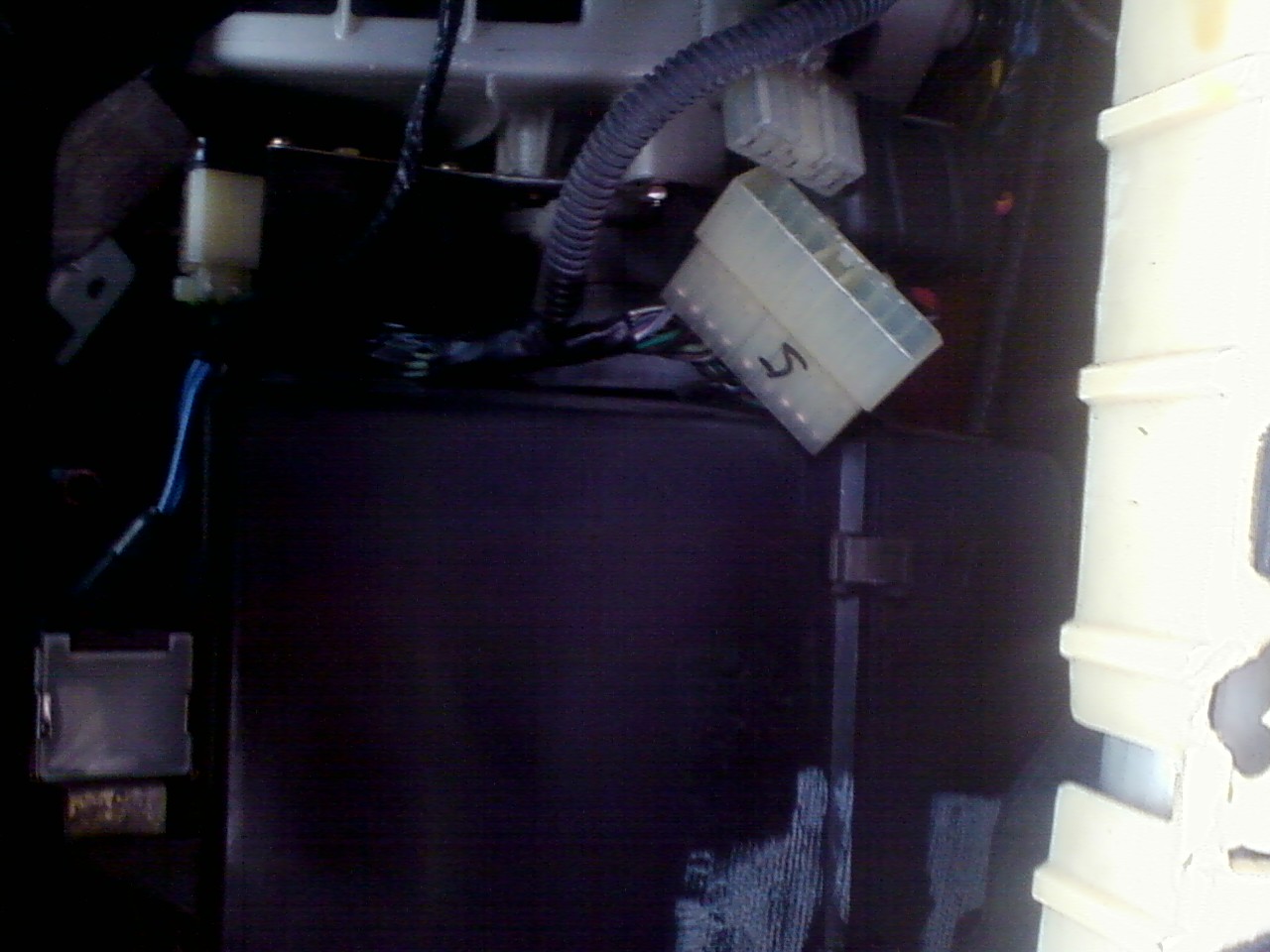

Problem now is trying to figure out where a few plugs go. Two are behind the glove box both are white/clear plugs. The others are near the shifter. Here are the pictures.
Icemark thanks for all the help.
Problem now is trying to figure out where a few plugs go. Two are behind the glove box both are white/clear plugs. The others are near the shifter. Here are the pictures.
Icemark thanks for all the help.
