racing beat race mid pipe studs snapped!
03-03-12, 05:31 AM
#1
racing beat race mid pipe studs snapped!

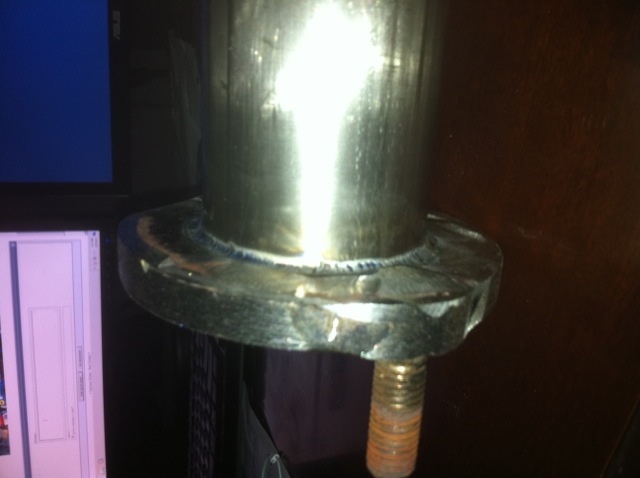

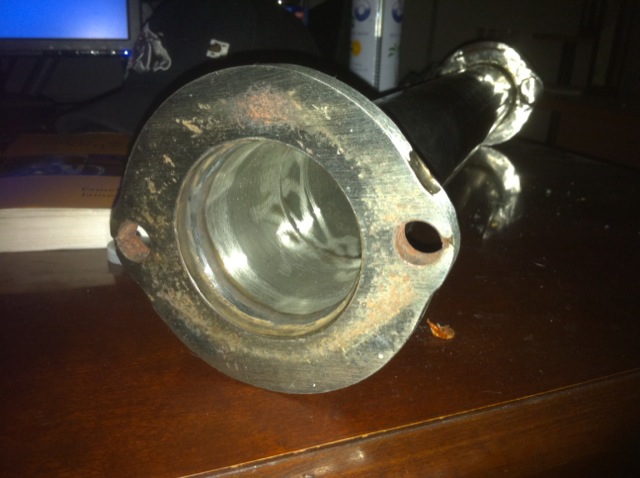

tonight while going to take off the catback my racing beat midpipe's studs sheered off. they seemed to tighten both ways, and i couldnt tell if something is reverse threaded or just cross threaded. are these studs replacable? anyone know the size, pitch, thread? id like to fix it ASAP. <3 Russ
03-03-12, 10:15 AM
#3
Driving RX7's since 1979
iTrader: (43)
Join Date: Aug 2001
Location: So Cal where the OC/LA/SB counties meet
Posts: 6,096
Likes: 0
Received 8 Likes
on
8 Posts
I had this happen to me, so I took it to RB for repair.
The studs mount from behind the flange. So to replace them you need to first cut off the flange, then press out the old stud, press in the new, and weld the flange back on.
The studs mount from behind the flange. So to replace them you need to first cut off the flange, then press out the old stud, press in the new, and weld the flange back on.
03-03-12, 10:38 AM
#4
Hometown Hero
Join Date: Oct 2009
Location: Illinois
Posts: 50
Likes: 0
Received 0 Likes
on
0 Posts
I got mine with the studs broken off. I drilled out the old studs and tapped the mid pipe. I bought some threaded rod and used that for new studs. I haven't had any problems with it.
