Quick Vacume line question with picture

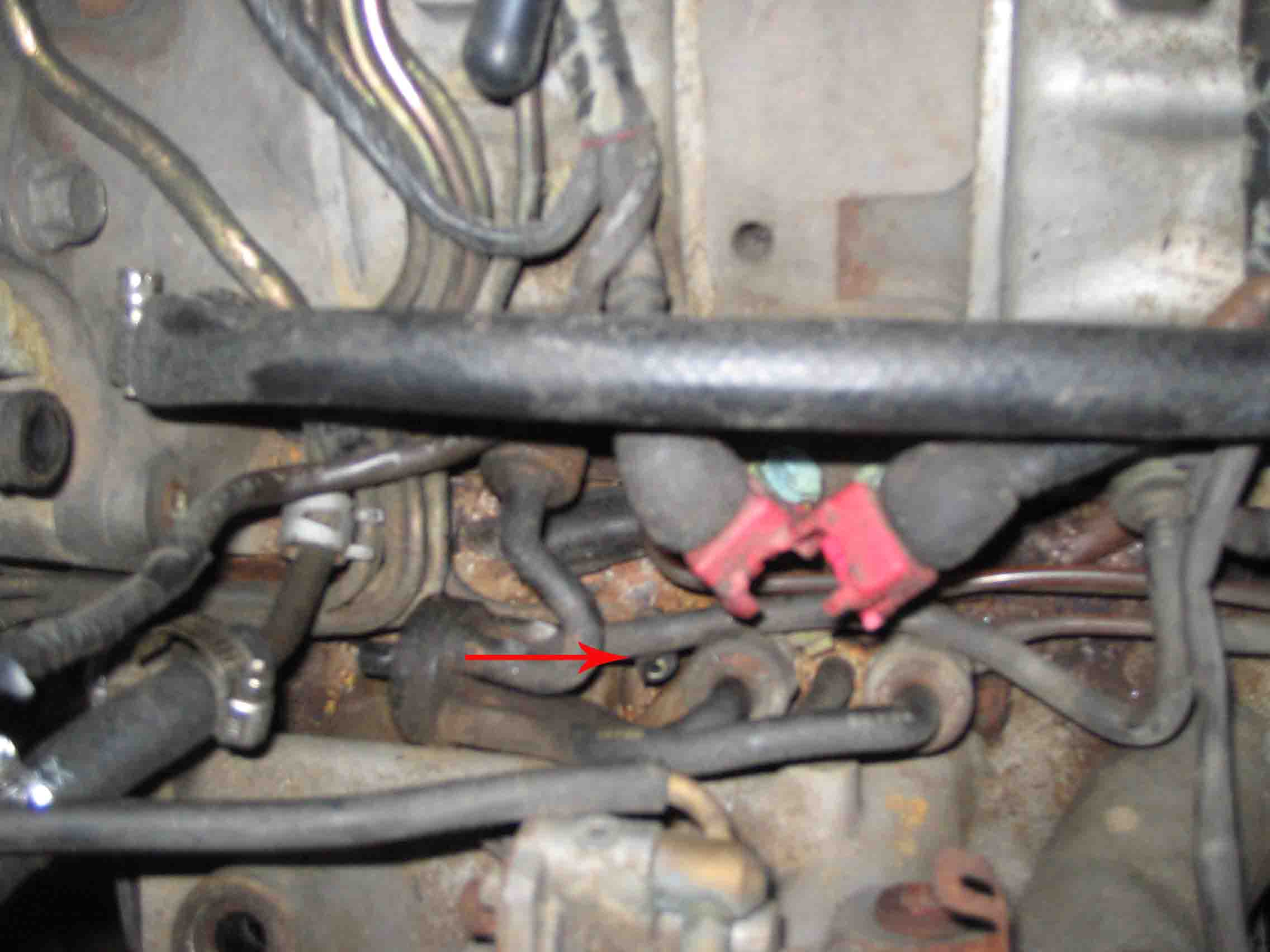

I have the manuel but I can't seem to see where this plugs into since it broke off. Anyone know?
Thanks in advance
Stefan
88T2
Thanks in advance
Stefan
88T2
07-28-09, 11:16 AM
#2
Rotary Freak
That's the primary fuel injector air bleed supply. You connect a hose to it and then run the other end of that hose to the TOP nipple on the back of the throttle body. NEVER to the lowest nipple back there.
I meand the row of four nipples, one above the other back there.
I meand the row of four nipples, one above the other back there.
07-28-09, 01:05 PM
#3
In Atlanta? Hit me up.
Thread Starter
Nice thanks Hailers2 thats a great pic. I wish I had some more pics like that. Some of the Vacuum diagrams in the manual suck, well at least for me they do..
