2nd Generation Specific (1986-1992) 1986-1992 Discussion including performance modifications and technical support sections.

Question for you guys running 17" rims

Thread Tools

Search this Thread

Old Dec 28, 2005 | 05:02 AM
  #1
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA
Question for you guys running 17" rims

Anyone running a 225/45/17 with the factory 40mm offset? If so is your car lowered at all and is there any rubbing?

Looking at going to 225/45's but want to make sure they will fit. 215 looks too small. My 91T has RB springs and adjustable shocks.
My new rims are waiting for rubber.
Reply
Old Dec 28, 2005 | 07:11 AM
  #2
hIGGI's Avatar
Moderator
Tenured Member: 25 Years
iTrader: (7)

Joined: Feb 2001
Posts: 4,988
Likes: 18
From: Czech Republic [www.rx7cz.net]
what size of rim?

7,5x17 ET35 might and might not rub 225/45/17 front, depends on tire (if not rubbing, its very close)
with ET40, i am pretty sure it will not work

ideal setup for 7,5x17 seems to be ET30 (225/45/17) no problem then, might go even wider probably
Reply
Old Dec 28, 2005 | 09:44 AM
  #3
Icemark's Avatar
Former Moderator. RIP Icemark.

Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
I am running 225/45-17 on my vert for street driving on 17x7 w/40ET offset with no clearance issues.

In fact at one point I had some 215/45-17 on a 17x7 w/ a 48ET offset and they still cleared.

Stock vert height though. Don't know how much clearance there is if the car is lowered any futher than what verts are already from the factory.

Last edited by Icemark; Dec 28, 2005 at 09:47 AM.
Reply
Old Dec 28, 2005 | 09:55 AM
  #4
Meterman0's Avatar
Full Member
Tenured Member 05 Years

Joined: Dec 2005
Posts: 75
Likes: 0
From: Texas
Wheels 17''

I have the stock 10ae rims ... anyone know what the larget width tire I can run is? and still have a low profile??
Reply
Old Dec 28, 2005 | 09:58 AM
  #5
Aaron Cake's Avatar
Engine, Not Motor
Tenured Member: 20 Years
iTrader: (1)

Joined: Feb 2001
Posts: 29,798
Likes: 128
From: London, Ontario, Canada
I'm running 215/45ZR17 and have not had any issues with rubbing.
Reply
Old Dec 28, 2005 | 10:01 AM
  #6
gxlbiscuit's Avatar
DONT FEED THE NOOBS
Tenured Member 15 Years

Joined: Mar 2001
Posts: 1,270
Likes: 0
From: land of slow hondas .... TULSA, OK
i have 225 45 17 all the way around car lowered no rubbing at all i have ground control coilover sleeves
Reply
Old Dec 28, 2005 | 11:10 AM
  #7
Icemark's Avatar
Former Moderator. RIP Icemark.

Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
Originally Posted by Meterman0
I have the stock 10ae rims ... anyone know what the larget width tire I can run is? and still have a low profile??
225/50-16 will give you the same profile
Reply
Old Dec 28, 2005 | 11:17 AM
  #8
hondahater's Avatar
spending too much money..
Tenured Member 10 Years
iTrader: (2)

Joined: Dec 2002
Posts: 10,116
Likes: 1
From: louisiana
I've got 215/45zr17's up front and 255/40zr17's in the back with no rubbing problems.
Reply
Old Dec 28, 2005 | 02:38 PM
  #9
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA
Originally Posted by Icemark
I am running 225/45-17 on my vert for street driving on 17x7 w/40ET offset with no clearance issues.
In fact at one point I had some 215/45-17 on a 17x7 w/ a 48ET offset and they still cleared.
Stock vert height though. Don't know how much clearance there is if the car is lowered any futher than what verts are already from the factory.

Thanks Icemark. If I remember right it is a 17x7 but for sure it is a 40 offset.
My TII don't sit that low but does have a set of rb springs so who knows if it rally even lowered the car.
Reply
Old Dec 28, 2005 | 03:35 PM
  #10
Dinnercoat's Avatar
Caramelldansen
Tenured Member 10 Years

Joined: May 2005
Posts: 1,182
Likes: 0
From: SF Bay Area, California
If you run larger than stock wheel sizes does it throw off your speedometer readings?
Reply
Old Dec 28, 2005 | 04:16 PM
  #11
Icemark's Avatar
Former Moderator. RIP Icemark.

Joined: Apr 2001
Posts: 25,896
Likes: 24
From: Rohnert Park CA
Originally Posted by MHopkins
If you run larger than stock wheel sizes does it throw off your speedometer readings?
Yes and no.

The tire calculator (http://www.miata.net/garage/tirecalc.html) will get you a rough idea, but with my vert the gearing is off from factory anyway, so the slightly larger tire my speedo is actually more accurate than with a smaller tire (but is is still off by about 10% at 110 MPH- one of these days I need to change the speedo gear in the tranny).
Reply
Old Dec 28, 2005 | 06:22 PM
  #12
digitalsolo's Avatar
RX-347
Tenured Member 15 Years
iTrader: (2)

Joined: May 2003
Posts: 2,115
Likes: 1
From: Fort Wayne, IN
225x45x17s on a 17x8" wheel up front. Stock fenders and suspension, no rubbing.
Reply
Old Dec 28, 2005 | 06:35 PM
  #13
57bronco's Avatar
Full Member
Tenured Member 05 Years

Joined: Jun 2005
Posts: 236
Likes: 0
From: Gainesville, Georgia
I'm running Mustang Cobra R's 17X9.00 with 245X45X17 and if I hit a large dip I have inner fender rub. I have an 87 with stock suspension.
Reply
Old Dec 28, 2005 | 08:07 PM
  #14
Dinnercoat's Avatar
Caramelldansen
Tenured Member 10 Years

Joined: May 2005
Posts: 1,182
Likes: 0
From: SF Bay Area, California
Originally Posted by digitalsolo
225x45x17s on a 17x8" wheel up front. Stock fenders and suspension, no rubbing.
Are TII and NA wheel wells the same? My friend thinks 17s might be too big for my front fenders.

Then again theres probably no good reason for having 17s on my GXL aside from simply filling out the wells...
Reply
Old Dec 29, 2005 | 02:50 AM
  #15
Ni5mo180SX's Avatar
White Comet
Tenured Member 05 Years

Joined: Jan 2002
Posts: 2,145
Likes: 0
From: Orange County
Im using 235/40/17 RA1s on a 17x8 wheel with a 3mm spacer in front. Clearance is fine. I just rolled in the lip of the front fenders and have no issues now. I'd like to go 17x9 front with spacers and a 255 in the future.
Reply
Old Dec 29, 2005 | 05:09 AM
  #16
nyc_scorpio's Avatar
R.I.P. Monte Negro FD
Tenured Member 05 Years
iTrader: (1)

Joined: Feb 2004
Posts: 1,099
Likes: 0
From: NYC & Davie, FL

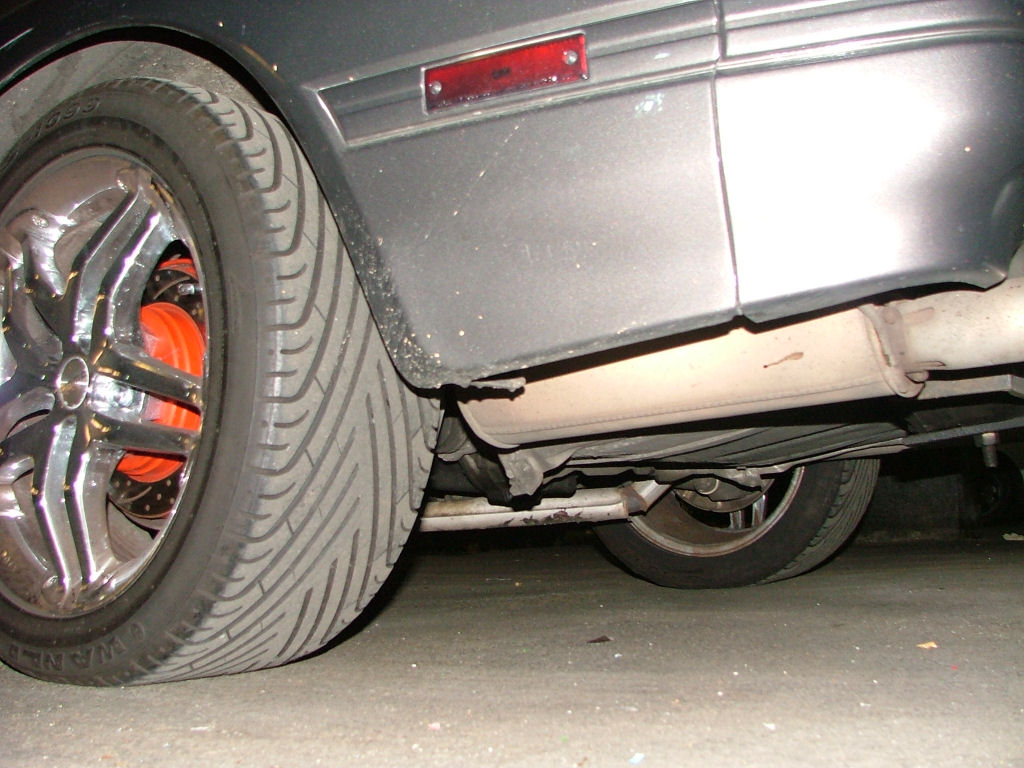

i am running 245/45/17 rear 225/45/17 front with no issues
Attached Thumbnails Question for you guys running 17" rims-rx7hitch-002.jpg
Reply
Old Dec 29, 2005 | 09:40 AM
  #17
digitalsolo's Avatar
RX-347
Tenured Member 15 Years
iTrader: (2)

Joined: May 2003
Posts: 2,115
Likes: 1
From: Fort Wayne, IN
Originally Posted by MHopkins
Are TII and NA wheel wells the same? My friend thinks 17s might be too big for my front fenders.

Then again theres probably no good reason for having 17s on my GXL aside from simply filling out the wells...
Yes, they are identical. My car was originally a 1986 Luxury Coupe.
Reply
Old Dec 29, 2005 | 01:27 PM
  #18
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA
Originally Posted by nyc_scorpio
i am running 245/45/17 rear 225/45/17 front with no issues

Are your rims 7" wide with a 40 off set? That rear look great with the 245.
I think the 245 in the rear of my TII would be great so when I finally decide to hook up my T04.
Also what brand of tires are those.
Thanks
Reply
Old Dec 29, 2005 | 03:14 PM
  #19
nyc_scorpio's Avatar
R.I.P. Monte Negro FD
Tenured Member 05 Years
iTrader: (1)

Joined: Feb 2004
Posts: 1,099
Likes: 0
From: NYC & Davie, FL
Originally Posted by Fire85GSLSE
Are your rims 7" wide with a 40 off set? That rear look great with the 245.
I think the 245 in the rear of my TII would be great so when I finally decide to hook up my T04.
Also what brand of tires are those.
Thanks
7.5 wide rims momo sports. off set, i really dont know. the tires are wanlli s-1099 i got them really cheap brand spanking new off of ebay. all 4 shipped to my door for 298.00 thread pattern is really nice, for winter they suck though lol. then again, i dont frive my car in the winter.
Reply
Old Dec 29, 2005 | 05:25 PM
  #20
CoRDiTe's Avatar
Full Member
Tenured Member: 20 Years

Joined: Aug 2005
Posts: 187
Likes: 0
From: Tampa
im running 225/45z/17 and 235/55z/17 in the back Not sure if there is a z in the back ones but I know the front ones has the z. I have no rubbing. But when I had the 235's in the front I had rubbing So I put those in the back and got some 225's for the front. and They are dong very good. No rubbing or nothing.
Reply
Old Dec 29, 2005 | 05:26 PM
  #21
CoRDiTe's Avatar
Full Member
Tenured Member: 20 Years

Joined: Aug 2005
Posts: 187
Likes: 0
From: Tampa
edit: dong = doing
ps. I have stock suspension
pss I have no spacers.
Reply
Old Dec 30, 2005 | 02:21 PM
  #22
Fire85GSLSE's Avatar
Thread Starter
Chad Carson
iTrader: (29)

Joined: Nov 2001
Posts: 7,010
Likes: 0
From: South of Nashville TN. USA
Originally Posted by CoRDiTe
im running 225/45z/17 and 235/55z/17 in the back Not sure if there is a z in the back ones but I know the front ones has the z. I have no rubbing. But when I had the 235's in the front I had rubbing So I put those in the back and got some 225's for the front. and They are dong very good. No rubbing or nothing.

And are you running a 40mm off set? And is the rim 7" or 7.5" wide?
BTW - You have alot of rotary help in Tampa...... I sure do miss being home (Brandon). The rotary scene up here is getting better but I don't think it will ever be like FL.
Chad
Reply
