monterx7

iTrader: (1)

hey whats up everyone, im needing some help. i pieced together a QM twin plate clutch 7.25" setup but ran into a problem when it came down to the flywheel. seems the only flywheel they make is for non-turbo(part # 506521). after talkn with QM they have told me that they do NOT make a tii flywheel, so i didnt get sent the wrong flywheel by mistake. so my question is, is there anyone running their clutch setup and if so what flywheel are you running?


ps - QM did have me call Fidanza to get a flywheel from them. but they dont have any instock and the quote for them to make 1 was $1000-$1200. so thats def out of the question.



thanks for any info that anyone is able to pass on.

arghx

iTrader: (3)

twin plate clutch setups are not cheap. sounds like you need a bigger budget

D Walker

iTrader: (1)

Well, I dunno about the QM you have, but the Tiltons can use a modified flex plate so as to use thier clutch. You need a competent machinist to index and machine the flexplate, but its not rocket science.

monterx7

iTrader: (1)

not really. my budget is big enough but i def spend my money wisely. just tryn to see if anyone else ran into this problem and what their outcome was before sending it back and buyn another setup. im stationed in england and shipping things to and from can be risky at times, but thanks for your input.

monterx7

iTrader: (1)

have you done this?

scathcart

Tilton used to offer a turbo 7.25" flywheel through Mazda Comp.
Part Number: 0000-02-9205-TL
Might be worth looking into.

monterx7

iTrader: (1)

hey thanks for that. just emailed tilton to see if they still carry that part number. wasnt able to find it using their website so hopefully ill find out something

thanks again

monterx7

iTrader: (1)

"we no longer produce the steel flywheel for the mazda 13bt" - Kirk Skaufel from Tilton.



FML



thanks for tryn to help though.

DAVIDP

iTrader: (1)

I called Quartermaster about purchasing a 7.25" twin plate clutch and they told me I could mount it to my stock flywheel. You could probably mount it to a lightweight steel flywheel also if you're looking to save weight. Racing beat sells one. Customer service also told me I would need a different release bearing. I'm still thinking about the 7.25" clutch but I really wanted something with a sprung hub so I haven't decided yet.

monterx7

iTrader: (1)

did they explain how you can do this? the stock clutch is wider than 7.25", so that would place the mount holes in the middle of the stock flywheel where there are no bolt holes, unless im missing something

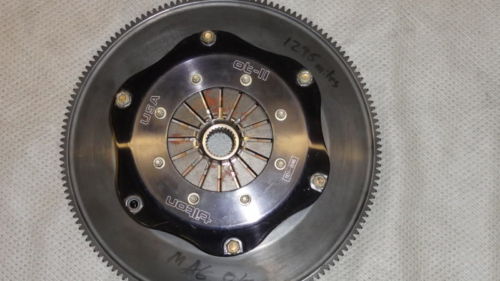

this pic is of a tilton but still has the same 6 bolt mounting pattern as the 7.25" QM

D Walker

iTrader: (1)

Yes I have.

FWIW I have a OS Giken and it works just fine. Was not cheap, but it works and just keeps working. I would rather have a Tilton, but the OS is fine for now.

Turblown

iTrader: (12)

Off topic, but have you ran your setup yet ?

monterx7

iTrader: (1)

i just installed a very USED os giken today, until i figure out if i will be able to run a QM setup. im using a stock throwout/release bearing and can not get into gear at all, just grinds and grinds. did you have to use a special release bearing?

monterx7

iTrader: (1)

yes i have. let me tell you, they love the sound of my car at WOT!!! holds good at 10 psi too. just gotta get this twin plate issue cleared up. cant wait to run my kaaz 2-way diff!!

DAVIDP

iTrader: (1)

Sorry for not explaining, you'll have to drill the holes yourself or have a machine shop do it for you. I've been in the machine shop business for 32 years so I really didn't even think about it when I responded.

monterx7

iTrader: (1)

hhmmmm i am about 500 yards from a machine shop....good thing i threw my stock flywheel away


fml

D Walker

iTrader: (1)

No I did not, but you can over-center an OS Giken and it will do what you described.

monterx7

iTrader: (1)

would anyone like to mod a turbo flywheel for a QM 7.25" clutch setup for me??????

D Walker

iTrader: (1)

If you shoot me a pic and/or part# I will shoot it over to a machinist I know and see if he would do it for you. He may not, but you can always ask.

monterx7

iTrader: (1)

need better pics?

monterx7

iTrader: (1)

http://www.racingclutches.com/produc...=40&cat_key=82

#218500

Turblown

iTrader: (12)

Look harder gotta be someone local who can do this.. Now post some engine bay photos

monterx7

iTrader: (1)

haha i guess i could post some pics sometime....but with exchange rates i'd figure ill see how much to get this work done in the states

D Walker

iTrader: (1)

I will speak to John tomorrow.

Evil Aviator

My car has the following:
- Mazda Comp Billington NA-sized flywheel for a 5.5" clutch
- Quarter Master 5.5" 2-disk clutch pack (TII-spline disks)
- TII transmission milled to allow the starter to engage the smaller-diameter flywheel

You could probably do the same with the 7.25" setup if a local shop can modify your transmission accordingly. Mazda Comp should be able to help you find a NA-sized flywheel that works with a 7.25" clutch.
