Pulsation Dampener replacement with Mitsubishi bolt
#1
Likes to swear....alot
Thread Starter
iTrader: (3)
Join Date: Dec 2002
Location: Kitchener Ontario Canada
Posts: 3,791
Likes: 0
Received 3 Likes
on
3 Posts
Pulsation Dampener replacement with Mitsubishi bolt
Hey, I found a thread a long while ago with a Mitsubishi part number for a banjo bolt that replaces the Pulsation Dampener in the primary fuel rail.
I bought a couple from the Mitsu dealer and they worked great, they were the right thread, right length, right diameter. Only cost $10 with new copper washers.
I just cant find any receipts for them and I dont know the part number. I have another S4 N/A with a leaking pulsation dampener, so I'm going to replace it with the Mitsu Banjo bolt.
If anyone can find the thread or knows the part number off hand and could let me know, it'd be greatly appreciated!
Thanks
Joe
I bought a couple from the Mitsu dealer and they worked great, they were the right thread, right length, right diameter. Only cost $10 with new copper washers.
I just cant find any receipts for them and I dont know the part number. I have another S4 N/A with a leaking pulsation dampener, so I'm going to replace it with the Mitsu Banjo bolt.
If anyone can find the thread or knows the part number off hand and could let me know, it'd be greatly appreciated!
Thanks
Joe
#2
Likes to swear....alot
Thread Starter
iTrader: (3)
Join Date: Dec 2002
Location: Kitchener Ontario Canada
Posts: 3,791
Likes: 0
Received 3 Likes
on
3 Posts
Well I went down to the Mitsu dealer and looked around in their stock room and found the bolt and copper washers needed.
Banjo bolt part number is #MS650013
Copper washers #MF66064
More expensive than I thought....total was $23.50
Banjo bolt part number is #MS650013
Copper washers #MF66064
More expensive than I thought....total was $23.50
#6
Former Moderator. RIP Icemark.
Many people with blown motors may not attribute a missing PD with a fuel issue.
The debate is that some people claim there is not an issue replacing it with a banjo bolt. The draw back is that it forces the soft fuel lines and the Fuel pressure regulator to act as the PD.
Thus, there may be specific RPMs where you may have a harmonic in the fuel rail that does not have the PD and that harmonic could cause a un-desired and uncontrolled lean or rich situation.
No one has been able to prove one way or the other adverse effects, but based on fluid dynamics there will be adverse effects if there is not a PD; regardless of how many people say there is not on their car.
Originally Posted by RotorRex
So does this work? any downside to doing away with the dampener? I just need to get this thing running. Mazda wanted $175 for a new dampener. ouch.
Thus, there may be specific RPMs where you may have a harmonic in the fuel rail that does not have the PD and that harmonic could cause a un-desired and uncontrolled lean or rich situation.
No one has been able to prove one way or the other adverse effects, but based on fluid dynamics there will be adverse effects if there is not a PD; regardless of how many people say there is not on their car.
Trending Topics
#8
rawr
iTrader: (2)
Join Date: Feb 2001
Location: Silver City, NM
Posts: 2,331
Likes: 0
Received 0 Likes
on
0 Posts
Engine fire vs possible changes in AFR's, makes the decision an easy one imo. Unless there is a drastic change in the AFR's, which is more worrisome for the TII owners, its not really a big deal. Could always get an S5 primary rail too.
Last edited by Agent_D; 12-19-08 at 11:47 PM.
#9
Former Moderator. RIP Icemark.
No one has been able to prove one way or the other adverse effects
#10
Former Moderator. RIP Icemark.
#13
rawr
iTrader: (2)
Join Date: Feb 2001
Location: Silver City, NM
Posts: 2,331
Likes: 0
Received 0 Likes
on
0 Posts
Maybe I've been lucky then, I have never had a single S5 PD leak on me. But every single S4 PD I've had has leaked uncontrollably, until I got sick of it and JB welded the entire end of that PD while I searched for an S5.
Also, I have never seen a thread in the 9 or 10 years I've been on the forum saying "I had an engine fire from an S5 PD leak." I don't browse every single day or every single thread, but I've yet to see a thread that starts with such.
You're the last person I would contradict mark cause you are the person I would normally ask for anything, so don't think I'm trying to say you're wrong, just that I've not seen it.
So again it comes down to, would you prefer an engine fire or possibly some weird AFR's, whatever fuel rail you have. If there is a proper fix for the S4 PD that will allow it to never have a leaking problem then that would be great, but as far as I am aware there is not.
Also, I have never seen a thread in the 9 or 10 years I've been on the forum saying "I had an engine fire from an S5 PD leak." I don't browse every single day or every single thread, but I've yet to see a thread that starts with such.
You're the last person I would contradict mark cause you are the person I would normally ask for anything, so don't think I'm trying to say you're wrong, just that I've not seen it.
So again it comes down to, would you prefer an engine fire or possibly some weird AFR's, whatever fuel rail you have. If there is a proper fix for the S4 PD that will allow it to never have a leaking problem then that would be great, but as far as I am aware there is not.
#14
Full Member
Join Date: Dec 2008
Location: new zealand
Posts: 66
Likes: 0
Received 0 Likes
on
0 Posts
ok, so lets weigh this up,,,, who here has seen blown fuel lines in a rx7? compared to who has seen a fire in a rx7 due to pd. reply with fire or lines
lastly do japspec s4 rx7 svannah have a pd?
lastly do japspec s4 rx7 svannah have a pd?
#15
Full Member
Join Date: Aug 2004
Location: Crosby, Tx
Posts: 134
Likes: 0
Received 0 Likes
on
0 Posts
I bought a car for 200 bucks that had a PD leak. The engine had just been rebuilt by rotary perfomance in Plano, Tx. The owner probably opted not to have it changed. He spent $2600, and ended up with a glob of molten plastic covering a nicely rebuilt block. I cleaned it up, and have been driving with it in my car for 2 years. 115 psi both rotors, and I got my 200 back selling parts on Ebay. Yeehaw
#16
S4 is sexay!
Join Date: Jun 2004
Location: East Central MN
Posts: 326
Likes: 0
Received 0 Likes
on
0 Posts
I bought a car for 200 bucks that had a PD leak. The engine had just been rebuilt by rotary perfomance in Plano, Tx. The owner probably opted not to have it changed. He spent $2600, and ended up with a glob of molten plastic covering a nicely rebuilt block. I cleaned it up, and have been driving with it in my car for 2 years. 115 psi both rotors, and I got my 200 back selling parts on Ebay. Yeehaw
#17
Former Moderator. RIP Icemark.

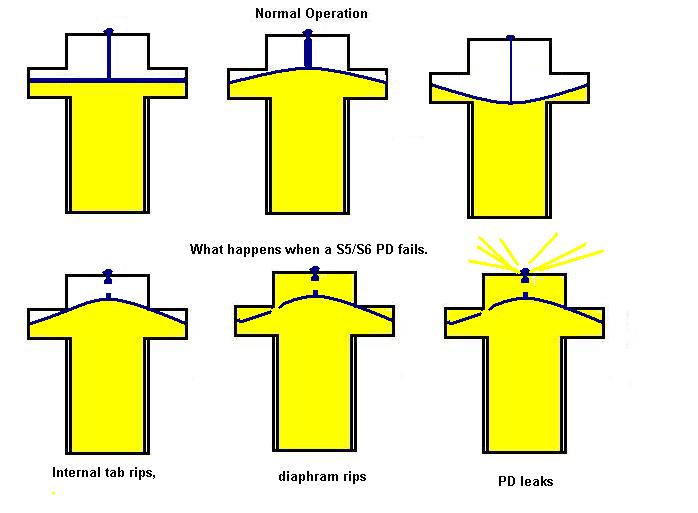

This is how the S5 and S6 ones work:
lastly do japspec s4 rx7 svannah have a pd?
Let me ask the non believer's (who for some reason think this is something to argue over), why do manufactures put a PD on every fuel injected car from the factory? Don't you think that if the manufacture could get away with a 50 cent bolt instead of a $75 pulsation Dampener they would?? Especially on the S5 model which had some many short cuts and cots cuts it's not even in the same ball park as a S4. So why didn't they use a bolt? I guess so you car can burn down after 20 years of neglect when one fails (or 10 years on a S6). Could it be that they are needed to stop the hammer effect of the harmonic. You can duplicate this same effect in your own home by turning a faucet all the way on, then closing it as fast as you can. You will hear a nice Bang to the pipe when you do this. This is the same thing that happens in the fuel rail, with only the FPR, PD and rubber fuel lines to absorb. If our lines were solid copper or brass, it might not be a concern (other than of course for how the injectors have to deal with it.
So, you can use a bolt, if you want... I personally will never- there are enough tuning issues when you build up one of these motors, and I don't want to band aid anything, or you can use a PD. $150 for a new PD that should last for the next 10 years or 100,000 miles is hardly a cost that can even be considered and one less thing to worry about.
Now if you are an idiot and have not changed the PD at 100,000 miles or 10 years, then your lack of maintenance is the issue, when one leaks, not a old worn out part.
#18
rawr
iTrader: (2)
Join Date: Feb 2001
Location: Silver City, NM
Posts: 2,331
Likes: 0
Received 0 Likes
on
0 Posts
So have you or anyone you know actually purchased a brand new PD and not had any problems for years? I realize 20 years of wear is a lot, but how does a brand new one cut down on the screw working its way out and leaking on an S4 PD? Could loctite be used on that screw to keep it from working its way out? Or would the heat and fuel just break down the loctite?
#19
Former Moderator. RIP Icemark.
So have you or anyone you know actually purchased a brand new PD and not had any problems for years? I realize 20 years of wear is a lot, but how does a brand new one cut down on the screw working its way out and leaking on an S4 PD? Could loctite be used on that screw to keep it from working its way out? Or would the heat and fuel just break down the loctite?
It is cheap insurance to just replace it and using the S4 fuel rails you can just unscrew and replace the PD and not have to replace the whole fuel rail.
There is loctite on the screw threads from the factory on new ones. Remember that screw needs to move up and down when it is attached to the plate inside, so that is why you don't want to glue them or cover them so that they can't move.
I think it is more the long term vibration that kills the loctite on the screw. Remember that screw is moving in and out every time an injector closes to help absorb the shock wave in the fuel rail.
But the screw is only half the story. It serves the same purpose as the rubber tab in the S5 PD diagram, that it keeps the membrane from over or under extending. So without the screw, the membrane can over/under extend and eventually rip. Of course putting the screw back in too far also does the same thing.
This is why I think the PD is important. Because all the movement in the rail. Sure there have been people (like Ted for example) that advocate the use of a banjo bolt (and have done so and ran cars with out PDs for years), but what is happening to all the movement that the PD normally helps absorb? What if it causes a low pressure moment at 4500 RPM because of the timing of the injectors closing... that low pressure suddenly could mean a lean condition. Most people wouldn't expect that to cause a blown motor... and I am not saying that it can result in one... there is just the possibility... a possibility that for spending $150 I am not willing to take.
#21
Banned. I got OWNED!!!
I don't understand why kids don't listen to people twice thier age with 10x the experience. Are you not getting enough attention at home?
Do a little research on fluid dynamics and maybe you'll understand why a PD is necessary. Here's a little expeiment to. Ever been in an old house and turn the water off and here the pipes shake? Now imagine doing that as many times as an injector does at fuel rail pressures and tell me that PD is useless.
You do realize that most new homes have a PD on things like washing machines and dishwashers right? In old homes if you have the shaking pipe problem the first thing you do is put a PD on whatever appliance/faucet is making the rattle and it goes away. Much easier than tearing a wall down
Stupid kids
#23
Senior Member
iTrader: (2)
I don't understand why kids don't listen to people twice thier age with 10x the experience. Are you not getting enough attention at home?
Do a little research on fluid dynamics and maybe you'll understand why a PD is necessary. Here's a little expeiment to. Ever been in an old house and turn the water off and here the pipes shake? Now imagine doing that as many times as an injector does at fuel rail pressures and tell me that PD is useless.
You do realize that most new homes have a PD on things like washing machines and dishwashers right? In old homes if you have the shaking pipe problem the first thing you do is put a PD on whatever appliance/faucet is making the rattle and it goes away. Much easier than tearing a wall down
Stupid kids
The comment about fuel line damage is really laughable, injector bounce is the only reasonable claim anyone can make, but that is a long stretch too. I have only seen injector bounce on one car and the injectors were close to being maxed out at WOT.... that problem was remedied by replacing the stock injectors with larger more appropriate sized units.
#24
Banned. I got OWNED!!!
EVERY SINGLE PRODUCTION EFI CAR PRODUCED TODAY HAS A PD FROM THE FACTORY.
Cars that don't have PD's are owned by people that take them off becuase they don't have the intelligence of factory engineers.
#25
I fix planes...
Join Date: Jan 2004
Location: Murica
Posts: 559
Likes: 0
Received 0 Likes
on
0 Posts
It simple terms, yes your car will run without a PD, just like it would run without a lot of things. What it comes down to is this, the Pulsation dampener serves a purpose as stated above. Yes you could run it forever and not have a single issue, or you could end up blowing your motor because you ended up running lean or something similar. Some people will argue that the PD does nothing and some argue the opposite in the end its up to whether or not you want to believe in the R&D of the manufacturers or someone on a forum.
If you want to take that chance power to you, I'd prefer to have one myself because its that extra bit of reliability that you can get. Yeah sure it does break and end up leaking but thats why you should check your car daily (this applies to any car really).
If you want to take that chance power to you, I'd prefer to have one myself because its that extra bit of reliability that you can get. Yeah sure it does break and end up leaking but thats why you should check your car daily (this applies to any car really).
