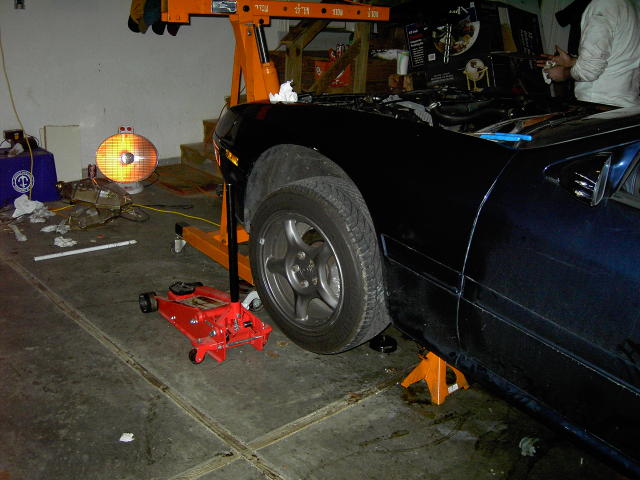

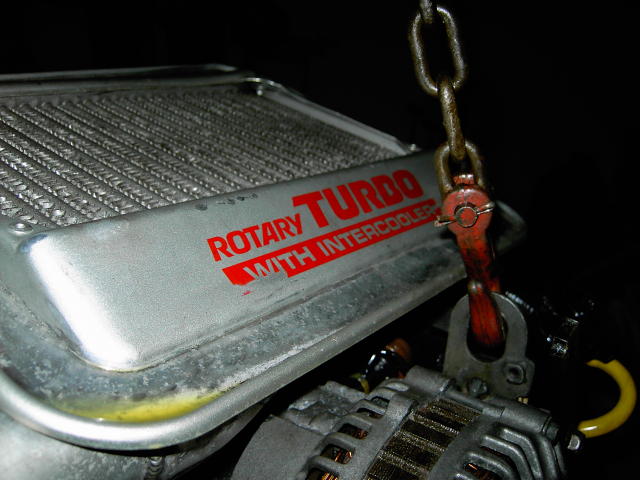

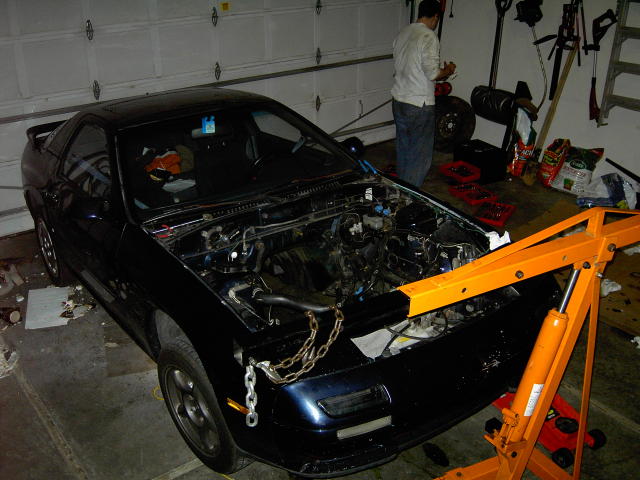

progress on my series5 turboII swap
Trending Topics
12-31-03, 03:24 PM
#9
RX-7 Bad Ass
iTrader: (55)
Originally posted by jacobcartmill
if i had a friggin wiring harness i'd have mine done... why does no one on this planet have a s5 TII wiring harness?
if i had a friggin wiring harness i'd have mine done... why does no one on this planet have a s5 TII wiring harness?
If you have an S5 NA and are swapping in an S5 TII engine (which it seems like you're doing) you can use the NA harness. If emissions are a concern, there might be some problems, never tried it with getting the emissions going.
The NA harness will literally plug right in to all the right spots on the TII motor. The only exception is the knock sensor - you'll have to run a new wire from the knock sensor to the ECU. Get a shielded wire from Radio Shack.
And, yes, the car will actually start and run with the NA ECU and NA AFM - been there, done that. We never drove the car with that setup (it was SUPER rich, too) - swapped in the turbo ECU, turbo AFM, and turbo boost sensor, and the car ran like a champ.
This method can be used to some extent with the S4 NA's, but you'll likely have to unwrap and re-route some of the underhood portion of the harness, shorten the wiring for the BAC, etc.
Dale
12-31-03, 04:07 PM
#10
Originally posted by dcfc3s
If you have an S5 NA and are swapping in an S5 TII engine (which it seems like you're doing) you can use the NA harness. If emissions are a concern, there might be some problems, never tried it with getting the emissions going.
The NA harness will literally plug right in to all the right spots on the TII motor. The only exception is the knock sensor - you'll have to run a new wire from the knock sensor to the ECU. Get a shielded wire from Radio Shack.
And, yes, the car will actually start and run with the NA ECU and NA AFM - been there, done that. We never drove the car with that setup (it was SUPER rich, too) - swapped in the turbo ECU, turbo AFM, and turbo boost sensor, and the car ran like a champ.
This method can be used to some extent with the S4 NA's, but you'll likely have to unwrap and re-route some of the underhood portion of the harness, shorten the wiring for the BAC, etc.
If you have an S5 NA and are swapping in an S5 TII engine (which it seems like you're doing) you can use the NA harness. If emissions are a concern, there might be some problems, never tried it with getting the emissions going.
The NA harness will literally plug right in to all the right spots on the TII motor. The only exception is the knock sensor - you'll have to run a new wire from the knock sensor to the ECU. Get a shielded wire from Radio Shack.
And, yes, the car will actually start and run with the NA ECU and NA AFM - been there, done that. We never drove the car with that setup (it was SUPER rich, too) - swapped in the turbo ECU, turbo AFM, and turbo boost sensor, and the car ran like a champ.
This method can be used to some extent with the S4 NA's, but you'll likely have to unwrap and re-route some of the underhood portion of the harness, shorten the wiring for the BAC, etc.
12-31-03, 04:24 PM
#11
Eat, sleep, work, mod.
Join Date: Jun 2001
Location: Long Island
Posts: 2,517
Likes: 0
Received 0 Likes
on
0 Posts
the motor will run on an NA AFM but I wouldn't try running the car on an NA ECU...ebay my friend
or try www.teamfc3s.org forums
or try www.teamfc3s.org forums
