pro photos of my turbo 'vert
07-04-03, 04:58 AM
#1
ACBron Motorsport
Thread Starter
pro photos of my turbo 'vert
hey guys I managed to suck up to Ben from MazdaRotary.net to take some decent shots of my car
this is just a handfull. the acrual pics are super hi res and look even better than these smaller ones. If anyone wants a larger version send me a Email and the pic name and i will forward it on.
Even though the car is very much a work in progress I'm very pleased with the photos. I can't wait for Ben to take some more when ive got the next round of mods done. I Hope you enjoy them too. (May be slow loading on dial up, 7 pics)
Current specs:
1987 RX-7 Series 4 Turbo Convertable
Jap import, Factory 13bt, Auto KYB adjustable shocks, LSD, BBS rims.
Mods:
Microtech MTX8L, Turbosmart 2 stage boost controller(8/15PSI), Oddesy battery (relocated behind seats), Saas Steering wheel, sony CD player & DSP, Alarm , central locking, Throttle body mod, Strut tower bar. hybrid hiflow turbo (S5 wastgate, S4 front with TO4 wheel and back cut exhaust wheel)
Stezza
6" infinty spilts, Boston Neo tweeters Soundstream SPL12 subwoofer.
3 RF series Rockford Fosgate amps, sony head unit, Alpine Sub level controller, Jaycar/Dick Smith Cabeling,
Oddesy battery, custom sub box, Flash-Tac deadend doors.
COMMING SOON (already have the parts)
Modded and rebuilt auto, 3500 RPM hi stall convertor
Pedders Sports ryder coils all round.
Racing Beat DTSS eliminator bushes and rear camber adjustor
Adam
this is just a handfull. the acrual pics are super hi res and look even better than these smaller ones. If anyone wants a larger version send me a Email and the pic name and i will forward it on.
Even though the car is very much a work in progress I'm very pleased with the photos. I can't wait for Ben to take some more when ive got the next round of mods done. I Hope you enjoy them too. (May be slow loading on dial up, 7 pics)
Current specs:
1987 RX-7 Series 4 Turbo Convertable
Jap import, Factory 13bt, Auto KYB adjustable shocks, LSD, BBS rims.
Mods:
Microtech MTX8L, Turbosmart 2 stage boost controller(8/15PSI), Oddesy battery (relocated behind seats), Saas Steering wheel, sony CD player & DSP, Alarm , central locking, Throttle body mod, Strut tower bar. hybrid hiflow turbo (S5 wastgate, S4 front with TO4 wheel and back cut exhaust wheel)
Stezza
6" infinty spilts, Boston Neo tweeters Soundstream SPL12 subwoofer.
3 RF series Rockford Fosgate amps, sony head unit, Alpine Sub level controller, Jaycar/Dick Smith Cabeling,
Oddesy battery, custom sub box, Flash-Tac deadend doors.
COMMING SOON (already have the parts)
Modded and rebuilt auto, 3500 RPM hi stall convertor
Pedders Sports ryder coils all round.
Racing Beat DTSS eliminator bushes and rear camber adjustor
Adam
07-04-03, 06:15 AM
#7
ACBron Motorsport
Thread Starter
Originally posted by EvilWankel
Why did you decide to keep the auto tranny? Also, no aero mirrors?
Why did you decide to keep the auto tranny? Also, no aero mirrors?
The auto is due to me having a badly broken wrist nearly 4 years ago, that hasent and wont heal.
The standard auto although very tied isent too bad,it is by no means slow, but you loose alot of that "driving spirt" I cant wait to get the rebuilt auto in and the high stall converter.
Adam
Trending Topics
07-04-03, 06:48 AM
#8
We come with the Hardcore
iTrader: (2)
Join Date: Nov 2001
Location: Springfield, MO
Posts: 2,456
Likes: 0
Received 0 Likes
on
0 Posts
You should throw in an Electric Fan while you're at it to get rid of what little engine-bay clutter there is. Also, that snorkel isn't doing any good w/o the airbox, and w/ that much space between it and the filter.
Very very clean though! Wonderful example of a Savannah RX-7
Very very clean though! Wonderful example of a Savannah RX-7
07-04-03, 12:29 PM
#13
Rotary Enthusiast
Join Date: Sep 2002
Location: Daytona beach
Posts: 1,351
Likes: 0
Received 0 Likes
on
0 Posts
Alright questions.......
Why did you go with the micotech? How does it perform?
What are you putting at the wheel?
Was it diffiult putting the TII engine with turbo and did you have to cut the frame?
What size injectors are you running?
Did you use the stock manifold?
Do you have pics of the subwoofer box?
Are there too many questions? :-)
Why did you go with the micotech? How does it perform?
What are you putting at the wheel?
Was it diffiult putting the TII engine with turbo and did you have to cut the frame?
What size injectors are you running?
Did you use the stock manifold?
Do you have pics of the subwoofer box?
Are there too many questions? :-)
07-04-03, 01:06 PM
#14
Former Moderator. RIP Icemark.
Originally posted by ERAUMAZDA
Was it diffiult putting the TII engine with turbo and did you have to cut the frame?
Was it diffiult putting the TII engine with turbo and did you have to cut the frame?
07-04-03, 09:35 PM
#18
ACBron Motorsport
Thread Starter
Thanks for the replys guys
An E-fan is on the list as too(ecu controlled) is a eletric water pump setup, but way down the list.
The snorkel will be comming off ASAP ive only just got the pod on there and just havent gotten around to removing it. Ive still got to add on parts so me BOV will plumb back.
Microtech offer the best value for money ECU around, they have everything you need in them. i fully installed and tuned it myself (will be dyno tuned when the new auto is in). before i had any mod's with just the microtech fitted, i found the car to have a little more power (unexpected) and fuel economy was improved (expected).
The car is quicker than i thought it would be, but i would hate to guess its power, if i get 270hp+ at the wheels i will be happy. Most other cars around here with the same type of setup make betwwen 270 and 300 at the wheels. Ii'm assumeing the auto will sap more than a 5 seed though
As the other guys pointed it out it is a factory turbo. This means it has the turbo rear end too. the inlet manifols is STD S4 and the turbo manifold is a S5 item as the turbo is a mix of s4/s5 with a to4 front wheel.
the injectors are stock, but recently cleaned, no doubt they will be on there upper limits when the car is dyno'ed, if its to close to leaning out i will increse the the fuel pressure (aftermarket reg) before changing the injectors. I'm also running the std fuel pump but it is rewired to see 13.8 volts constanly. The injectors should outflow the fuel pump in theory

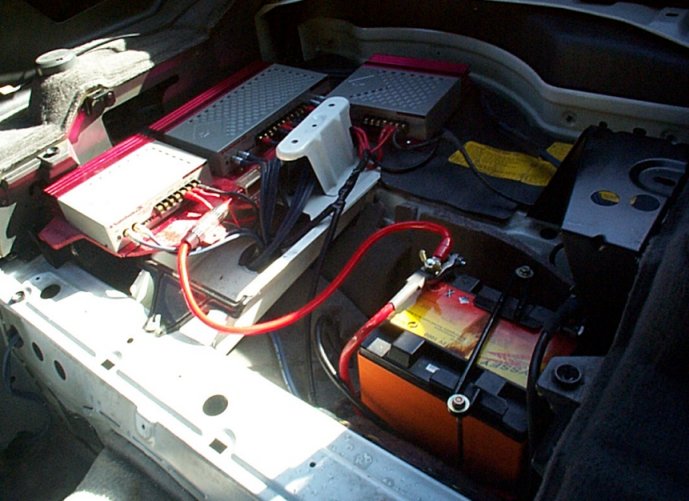

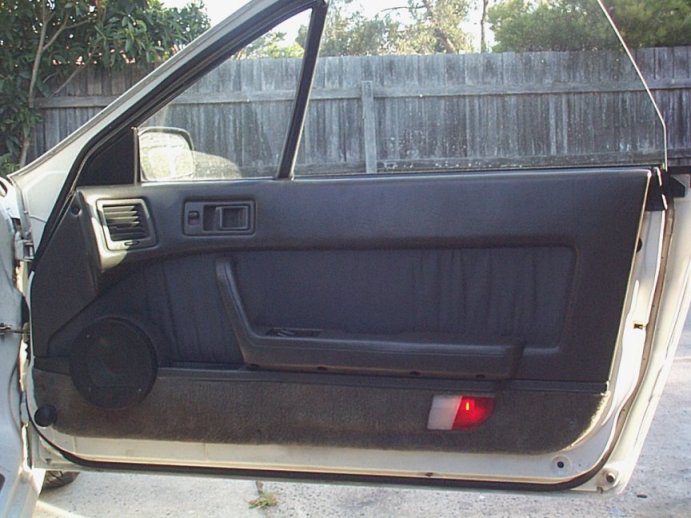

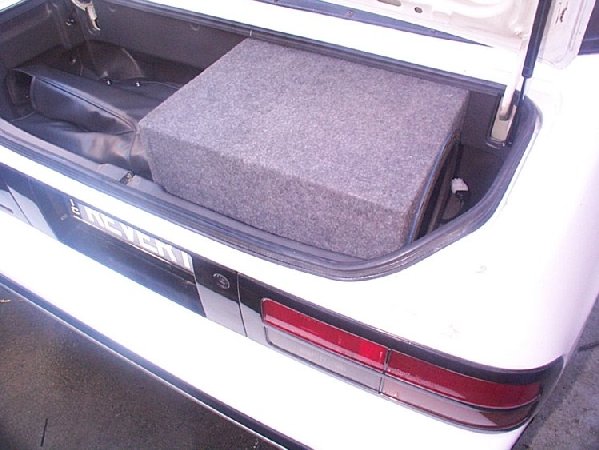

heres the sub and amps and some older shots..

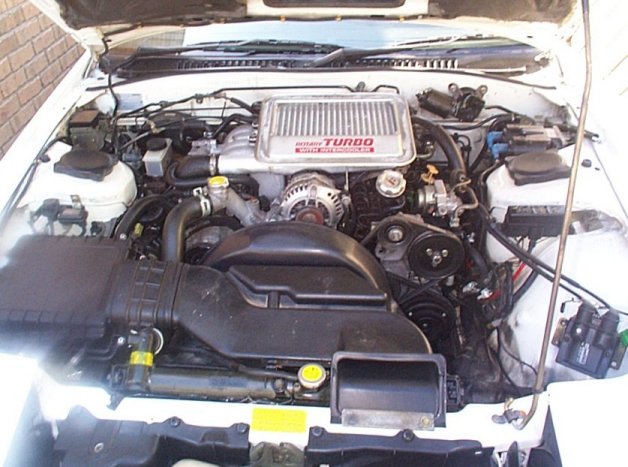

and the engine bay when i 1st got it
Originally posted by Liquid Anarchy
You should throw in an Electric Fan while you're at it to get rid of what little engine-bay clutter there is. Also, that snorkel isn't doing any good w/o the airbox, and w/ that much space between it and the filter.
Very very clean though! Wonderful example of a Savannah RX-7
You should throw in an Electric Fan while you're at it to get rid of what little engine-bay clutter there is. Also, that snorkel isn't doing any good w/o the airbox, and w/ that much space between it and the filter.
Very very clean though! Wonderful example of a Savannah RX-7
The snorkel will be comming off ASAP ive only just got the pod on there and just havent gotten around to removing it. Ive still got to add on parts so me BOV will plumb back.
Originally posted by ERAUMAZDA
Alright questions.......
Why did you go with the micotech? How does it perform?
What are you putting at the wheel?
Was it diffiult putting the TII engine with turbo and did you have to cut the frame?
What size injectors are you running?
Did you use the stock manifold?
Do you have pics of the subwoofer box?
Are there too many questions? :-)
Alright questions.......
Why did you go with the micotech? How does it perform?
What are you putting at the wheel?
Was it diffiult putting the TII engine with turbo and did you have to cut the frame?
What size injectors are you running?
Did you use the stock manifold?
Do you have pics of the subwoofer box?
Are there too many questions? :-)
The car is quicker than i thought it would be, but i would hate to guess its power, if i get 270hp+ at the wheels i will be happy. Most other cars around here with the same type of setup make betwwen 270 and 300 at the wheels. Ii'm assumeing the auto will sap more than a 5 seed though
As the other guys pointed it out it is a factory turbo. This means it has the turbo rear end too. the inlet manifols is STD S4 and the turbo manifold is a S5 item as the turbo is a mix of s4/s5 with a to4 front wheel.
the injectors are stock, but recently cleaned, no doubt they will be on there upper limits when the car is dyno'ed, if its to close to leaning out i will increse the the fuel pressure (aftermarket reg) before changing the injectors. I'm also running the std fuel pump but it is rewired to see 13.8 volts constanly. The injectors should outflow the fuel pump in theory
heres the sub and amps and some older shots..
and the engine bay when i 1st got it
Last edited by Adsy01; 07-04-03 at 09:39 PM.
07-05-03, 05:46 AM
#25
ACBron Motorsport
Thread Starter
thanks for all your comments guys
the std alt is working fine with the oddessy battery and all my add on's, i think it will cope with even more load from a EWP and E-fans as they are other very efficent power wise. if not i would go for a S5 alt as the FD ones are hard to get over here.
theres a bit of a story to the blue.. the short version is they were already badly painted in a silver when I bought the car and i had to replace one of the panels. That ment I had to paint all those parts so they would match each other.
I choose the blue as i had it already again it is a work in progress, the blue will become more of a theme with time rather than just a few "odd" bits as it is now, i dont expect every one to like it, but its my thing i guess
the pressure sensor is there so my factory boost gauge works, the one next to it is for the auto (cuts out the lock up convertor) and is needed until the rebuilt auto goes in.
LOL thanks, we never got them here either, it is only recently we can import them under a 15 year old rule we have.
Being the JDM version it has even less stuff in it than normal 'verts and the car dosent really feel as heavy as people would lead you to think.
I really want to get it onto a weightbridge one day.
thanks
i will take some pics when the new BOV goes on soon. my factory one is leaking above 10 PSI so i got a simple but good quality plumb back type to replace it with.
Originally posted by 1Revvin7
Better get an FD alternator..... Very, very nice, but I don't care for that blue..
Better get an FD alternator..... Very, very nice, but I don't care for that blue..
the std alt is working fine with the oddessy battery and all my add on's, i think it will cope with even more load from a EWP and E-fans as they are other very efficent power wise. if not i would go for a S5 alt as the FD ones are hard to get over here.theres a bit of a story to the blue.. the short version is they were already badly painted in a silver when I bought the car and i had to replace one of the panels. That ment I had to paint all those parts so they would match each other.
I choose the blue as i had it already
again it is a work in progress, the blue will become more of a theme with time rather than just a few "odd" bits as it is now, i dont expect every one to like it, but its my thing i guess
Originally posted by silverrotor
Nice detailed pics..
With the use of the LT8, why are keeping the stock sensors In place? Get them out of there!
Nice detailed pics..
With the use of the LT8, why are keeping the stock sensors In place? Get them out of there!
Originally posted by introVert
I must merely admire and be jealous of your FACTORY turbo vert- Darn those japanese for not importing them here!!! Very clean!!
I must merely admire and be jealous of your FACTORY turbo vert- Darn those japanese for not importing them here!!! Very clean!!
Being the JDM version it has even less stuff in it than normal 'verts and the car dosent really feel as heavy as people would lead you to think.
I really want to get it onto a weightbridge one day.
Originally posted by 1SxyRXy
mmmm i like the way you did your TID and nice car
mmmm i like the way you did your TID and nice car
i will take some pics when the new BOV goes on soon. my factory one is leaking above 10 PSI so i got a simple but good quality plumb back type to replace it with.
