power brake booster line?
I have an 87 Turbo II, I was wondering where the power brake booster line goes to?
It comes out of the Booster and goes to a hard line then it runs along the fire wall, and then i'm not sure where from there... any help?
It comes out of the Booster and goes to a hard line then it runs along the fire wall, and then i'm not sure where from there... any help?
10-11-09, 09:50 AM
#2
Senior Member
iTrader: (18)
Join Date: Apr 2008
Location: Pennsylvania
Posts: 499
Likes: 0
Received 0 Likes
on
0 Posts
Hope this helps (this is a n/a engine but i assume it should help your search)
[IMG]<a href="http://s589.photobucket.com/albums/ss333/Jreed624/?action=view¤t=SDC11564.jpg" target="_blank"><img src="http://i589.photobucket.com/albums/ss333/Jreed624/SDC11564.jpg" border="0" alt="Brake Booster Line"></a>[/IMG]
[IMG]<a href="http://s589.photobucket.com/albums/ss333/Jreed624/?action=view¤t=SDC11564.jpg" target="_blank"><img src="http://i589.photobucket.com/albums/ss333/Jreed624/SDC11564.jpg" border="0" alt="Brake Booster Line"></a>[/IMG]
10-11-09, 10:39 AM
#3
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
The TII lower has a threaded port on the rear runner where a little bent pipe bolts on with a banjo bolt. That's the location of the brake booster line. Similar to the NA.
10-11-09, 11:28 AM
#7
OneThreeRotary
Thread Starter
Join Date: May 2006
Location: Vermont
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Really I just need to know where is an acceptable vacuum source. I Bought a 3ft length of power brake booster line so I can re-route...
(I mounted my FPR in the path of the old hard line because that was the only place I could fit it...
So I have to remount the hard line up a little higher above the firewall.)
(I mounted my FPR in the path of the old hard line because that was the only place I could fit it...
So I have to remount the hard line up a little higher above the firewall.)
Trending Topics
10-11-09, 01:31 PM
#9
OneThreeRotary
Thread Starter
Join Date: May 2006
Location: Vermont
Posts: 111
Likes: 0
Received 0 Likes
on
0 Posts
Thanks man you come through again for me!!!
There are a couple of nipples that look to be the right size... on up top pointing strait up... and the other strait out towards the fire wall, Does it matter which one???
There are a couple of nipples that look to be the right size... on up top pointing strait up... and the other strait out towards the fire wall, Does it matter which one???
10-12-09, 10:27 AM
#11
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts

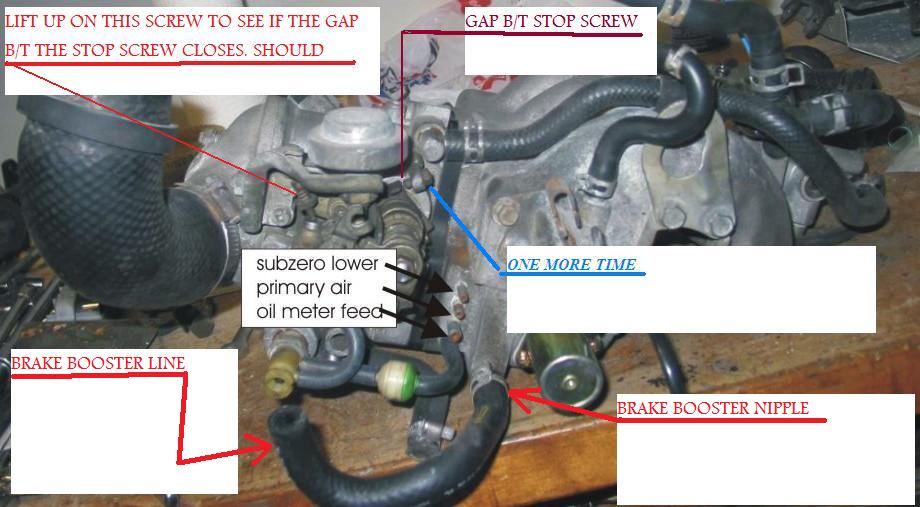

The booster "nipple" is actually a large pipe coming off the lower (I guess Jspec only) or upper (apparently North American) manifold. It's a pipe of about a 3/8" diameter which connects to a threaded hole in the manifold via a banjo bolt. It is the only threaded hole in that are of the manifold.

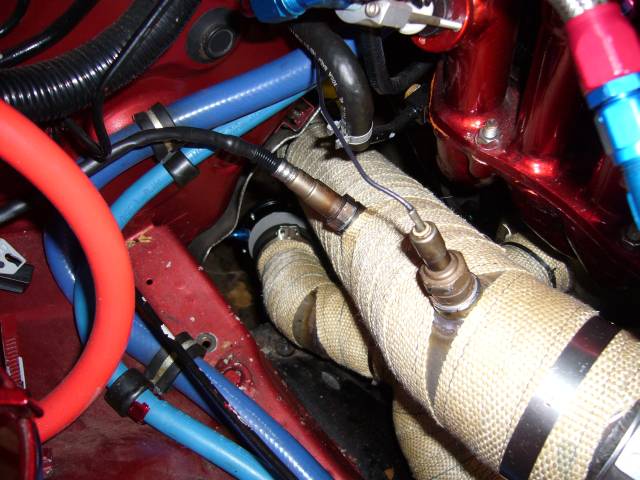

You can see what it looks like in the picture below. It is directly above the downpipe and is the black pipe connected to the lower intake with the silver clamp and S shaped hose connectd to it. This is an NA manifold so yours will be a bit different but the pipe looks very similar. I don't have a picture of a TII.
You can see what it looks like in the picture below. It is directly above the downpipe and is the black pipe connected to the lower intake with the silver clamp and S shaped hose connectd to it. This is an NA manifold so yours will be a bit different but the pipe looks very similar. I don't have a picture of a TII.
