Pintle Broken before Injector Removal..Screwed?

Thread Tools

Search this Thread

Old 04-13-16, 06:37 PM
  #1
10AE *****

Thread Starter
iTrader: (7)

GA_Boy_Drew's Avatar

Join Date: Nov 2013
Location: Acworth, GA
Posts: 97
Received 6 Likes on 6 Posts
Pintle Broken before Injector Removal..Screwed?

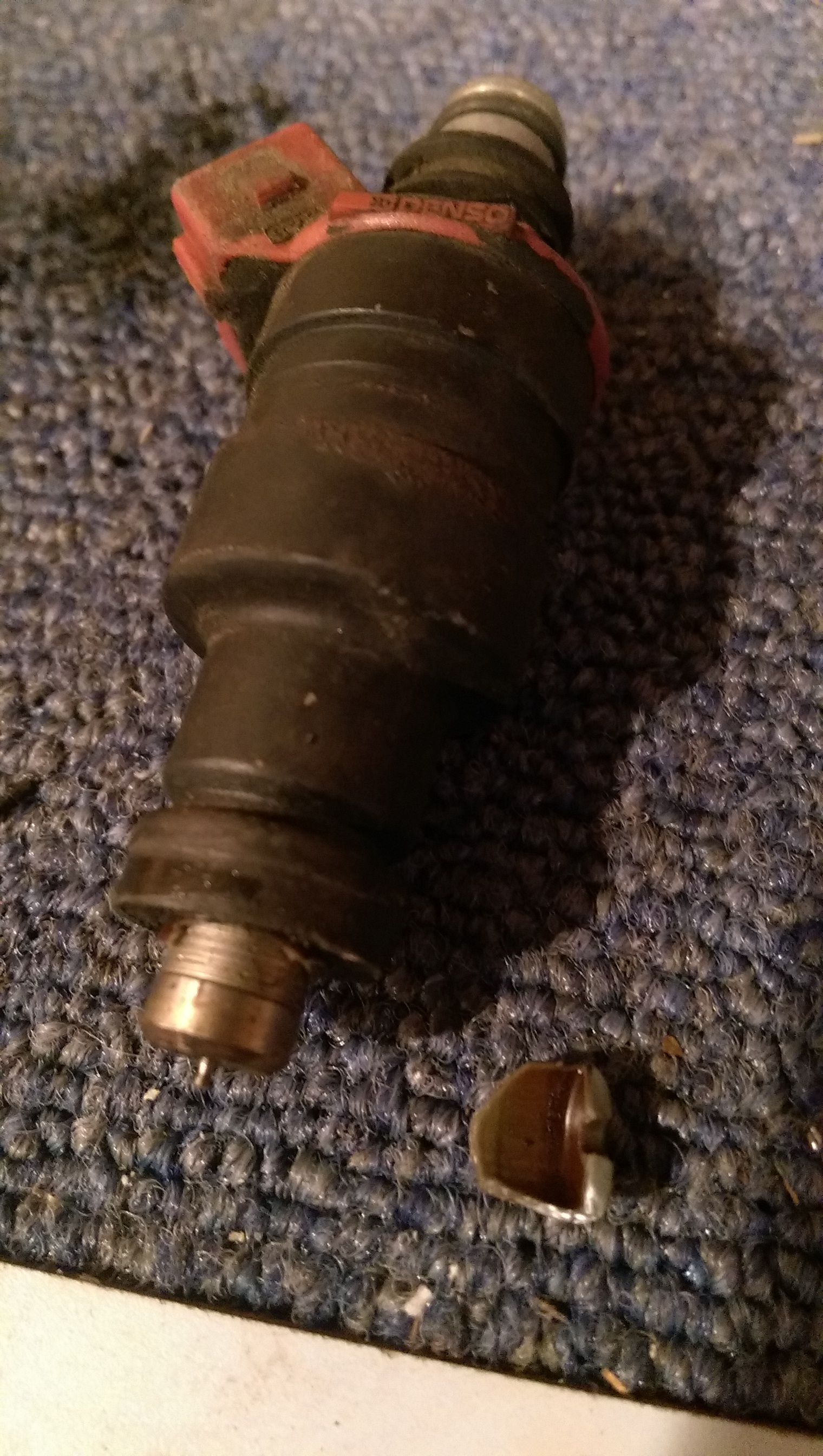

Well all I wanted to do was get my injectors cleaned, and while I was removing the secondary injectors the pintle broke..inside the LIM..
Pintle Broken before Injector Removal..Screwed?-pintle-broken.jpg

I removed a few pieces that were visible, but I do not know if there are any more pieces inside.

So should I just remove the LIM and clean it out, or should I assume there are pieces already in the engine and pull it?

I do have a fresh streetport rebuild in the garage, but I wanted to drive her around for the summer while I save up for supporting mods for the ported.
Old 04-13-16, 07:36 PM
  #2
I wish I was driving!


Join Date: Dec 2001
Location: BC, Canada
Posts: 5,241
Received 84 Likes on 68 Posts
Originally Posted by GA_Boy_Drew
Well all I wanted to do was get my injectors cleaned, and while I was removing the secondary injectors the pintle broke..inside the LIM..
Attachment 576472

I removed a few pieces that were visible, but I do not know if there are any more pieces inside.

So should I just remove the LIM and clean it out, or should I assume there are pieces already in the engine and pull it?

I do have a fresh streetport rebuild in the garage, but I wanted to drive her around for the summer while I save up for supporting mods for the ported.
Pull both trailing plugs.
Put a shop vac tightly sealed against the secondary port. You should feel air sucking through the primary runner. Slowly rotate the engine clockwise with a ratchet on the front port while running the vac. If the ratchet binds, at any point, disassemble the engine. If you can rotate 3 full crank turns, you're fine.
Old 04-13-16, 07:54 PM
  #3
10AE *****

Thread Starter
iTrader: (7)

GA_Boy_Drew's Avatar

Join Date: Nov 2013
Location: Acworth, GA
Posts: 97
Received 6 Likes on 6 Posts
Thanks for the response.
Should I keep the primary injectors installed and keep both secondaries removed after I pull the 2 spark plugs?
Old 04-14-16, 07:37 AM
  #4
10AE *****

Thread Starter
iTrader: (7)

GA_Boy_Drew's Avatar

Join Date: Nov 2013
Location: Acworth, GA
Posts: 97
Received 6 Likes on 6 Posts
I just re-read your response, and I realize my question above is answered in your response.

note to self: Do not respond when drinking and sleep deprived
