Pics of your gauge setup .. and yes i ran a search
#1
Pics of your gauge setup .. and yes i ran a search
I want my gauges to look as close to stock coloring as possible. Also interested in various mounting positions of where they are put out ..Does anyone make gauges that match or do i have to do some clever bulb swapping?
lets see your pictures
lets see your pictures
#2
Senior Member
iTrader: (4)
here is my setup (still in progress) https://www.rx7club.com/2nd-generation-specific-1986-1992-17/progress-thread-my-quad-gauge-mount-dual-gauge-mount-603396/
afaik the old HKS gauges match the stockgaugecolour perfectly
afaik the old HKS gauges match the stockgaugecolour perfectly
#4
Rotary Enthusiast
Join Date: Jul 2004
Location: Lubbock,Tx
Posts: 881
Likes: 0
Received 0 Likes
on
0 Posts
I use the same mount as above except my gauges are above my stereo instead of below.
I use the Autometer Ultra Lite gauges and honest just use the red bulb cover that comes with them and it comes out almost identical to the orange color in the stock gauges.
Mike
I use the Autometer Ultra Lite gauges and honest just use the red bulb cover that comes with them and it comes out almost identical to the orange color in the stock gauges.
Mike
#5
Lives on the Forum
I like these for a gauge pod. They're very good looking and they put the gauges nice and high, right in your line of sight so that you have to move your eyes the smallest amount possible, and they're farther away, making re-focusing on the gauges faster too. Those are all good things, especially if you're tracking the car, then you can more or less see them in your peripheral vision. Pretty much anythig black with orange, amber or red lighting will approximate the stock gauges pretty well. I like the SAGA gauges that AutoRnD sells because they've got an integral warnings for things like high temp and low pressure, and they'll look reasonably close to stock and aren't too expensive.
I don't like gauges way down low or way off to the side, because they're hard to see while driving, making them mostly for show.
http://members.aol.com/flyrx7/Rx7-Gauge-Pod.html
I don't like gauges way down low or way off to the side, because they're hard to see while driving, making them mostly for show.
http://members.aol.com/flyrx7/Rx7-Gauge-Pod.html
#6
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes
on
91 Posts
Right to left: Boost, stock gauges, oil pressure, oil temp, fuel pressure. The open hole is for the wideband (backordered...) and I will install another single gauge pod on the a-pillar for water temp. The gauges are AutoMeter Nexus.
#7
Interruptor Illuminada
Join Date: Apr 2006
Location: MD
Posts: 1,504
Likes: 0
Received 0 Likes
on
0 Posts
Aaron, I really like your triple pod. I definitely think that's a good location for gauges but, like you, don't like the idea of blocking the idiot lights. Was that a ebay generic triple pod that you shaved to fit?
Trending Topics
#8
Chicken Adobo
iTrader: (6)
Join Date: Jul 2004
Location: City of Angels
Posts: 1,729
Likes: 0
Received 0 Likes
on
0 Posts

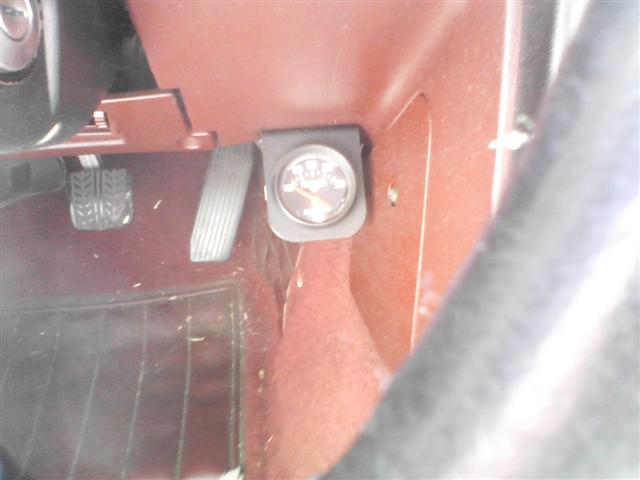

Ive only got water temp right now becuase the stock one is the only one really busted.

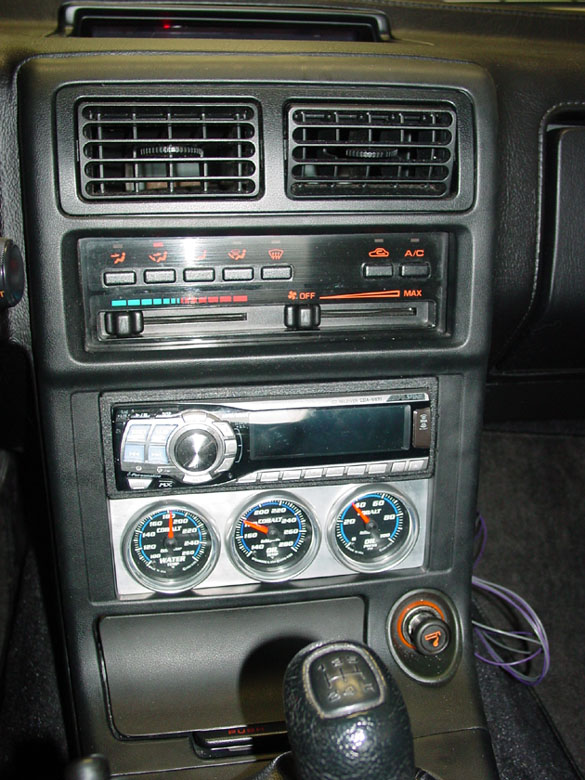

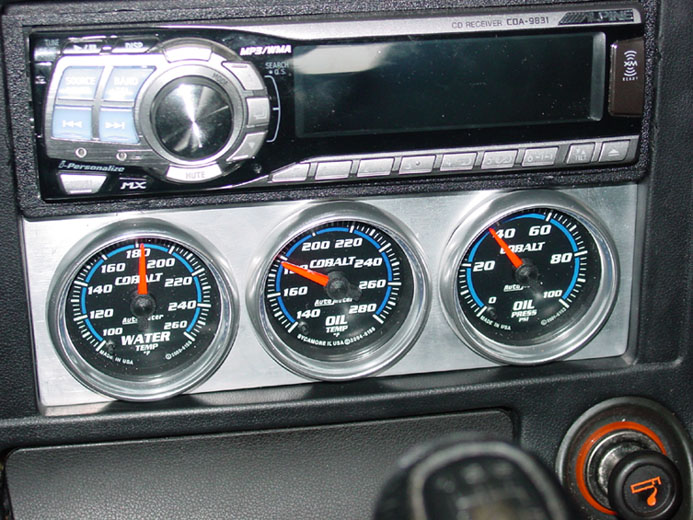

Its location doesnt get in the way at all, I can glance at it with the steering wheel straight. I put it there just to keep peering eyes from seeing anything to quickly steal. I have a alum plate under my head unit. I have just been too lazy to install my oil temp and pressure guages.
#9
What's the point??
iTrader: (6)
Join Date: Oct 2005
Location: Omaha, NE
Posts: 995
Likes: 0
Received 0 Likes
on
0 Posts
I'm going to have a single 5" LCD screen replacing my idiot lights, I run a megasquirt so it'll be linked directly through that. I can program readouts about anything I want: EGO, EGO correction, voltage, CLT, IAT, IDC 1 and 2, DC 1 and 2, EGT, tach, etc. It can also display it any way, but my favorite has 4 sliding bars on the right with ~ 7 readouts on the left.
#10
Originally Posted by Phantomhp
I use the Autometer Ultra Lite gauges and honest just use the red bulb cover that comes with them and it comes out almost identical to the orange color in the stock gauges.
Mike
Mike
Remember its brighter than this:
...but not as bright as this:
I got the white faced guage just because i like white faced guages, but the black faced guages by autometer might match even better since the stock guages are black. I dont know if they have the same color bulb covers though.
#17
rebuild+porting=POWER!!!
Join Date: Aug 2006
Location: Gainesville, FL
Posts: 351
Likes: 0
Received 0 Likes
on
0 Posts
the new style greddy guages (i got mine from RX7.com) are black with orange backlighting. they are a perfect match to the stock guage cluster. Not too bright, but sooooo similar, dont have pics, but take my word for it. THe guages are awesome too.
#19
Learned alot | Alot to go
iTrader: (2)
Join Date: Apr 2002
Location: Rotaryland, New Hampshire
Posts: 4,232
Likes: 0
Received 0 Likes
on
0 Posts
i dont have a pic right now, but in the center where the vents should be, i have an oil pressure, then water temp, then the j n s knock display
below that where the hvac stuff should be i have a egt gauge and a boost gauge, below that where the stero and din pocket should be i have my innovate motorsports lma-3
i also have a racingbeat MBC mounted to the right of the steering column
below that where the hvac stuff should be i have a egt gauge and a boost gauge, below that where the stero and din pocket should be i have my innovate motorsports lma-3
i also have a racingbeat MBC mounted to the right of the steering column
