Im interested in the different ways peopld run their setup. I want to see the piping routs and BOV positioning. Pics with both NA TB positioning and T2 TB positioning would be cool.
Im trying to decide on a setup for my NA throttle body location, and I think i have a pretty good idea of what I'm going to do, but it'd be nice to see some pictures as well.



Turbo? or are you still working on supercharging?



turbo, plz delete my other post.



bump, this is the original thread

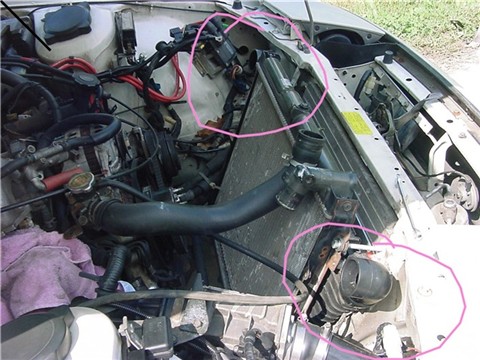

Saab I/C in front of radiator, no problems cooling, Engine died shortly after this was installed (not because of heat) so I don't have a lot of data.



hey is that a saab 9000 ic if so be carfull with the side plastic tanks they crack easy over the years. But on a good note it is a great ic i know alot of people put them on the saab 900t due to the larger volume and better airflow which would put out 1-2psi more than the stock 900 ic. im asking because my first car was a 9000turbo.



you can mount it that style with the big *** npr ic too.



http://www.freepichosting.com/Albums/421577410.html

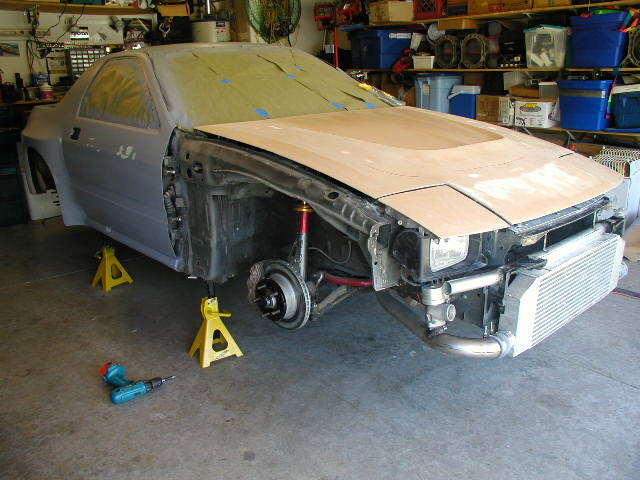

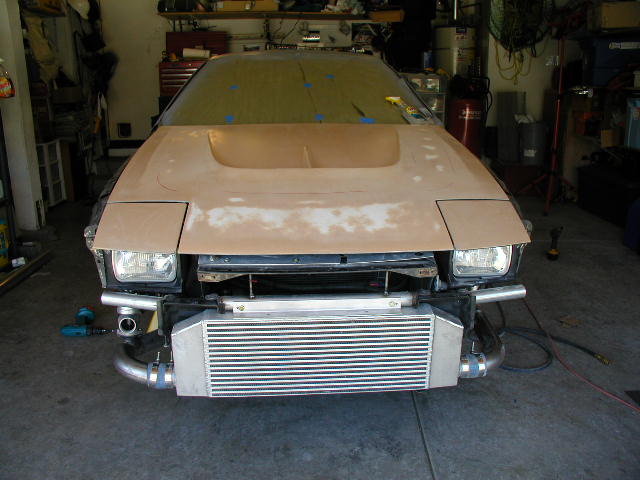

that should be enough pics of my car and install thus far. I put it where the stock a/c condenser was and moved the oil cooler forward. i still got some work to do though as you can probably tell by the pics.



33x10x3, could be 12 high but it would block my second oil cooler

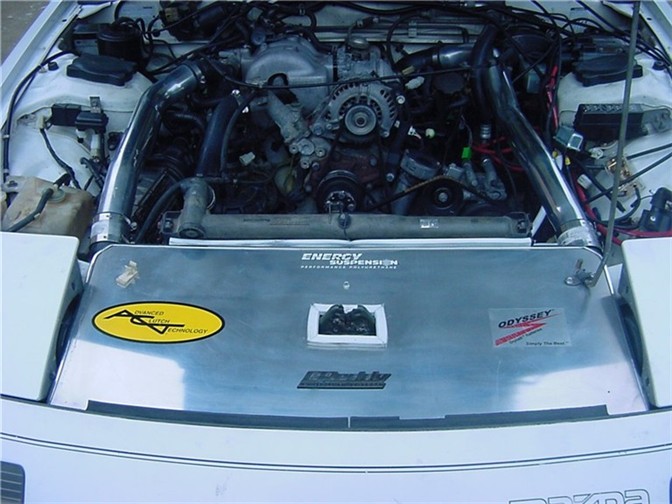

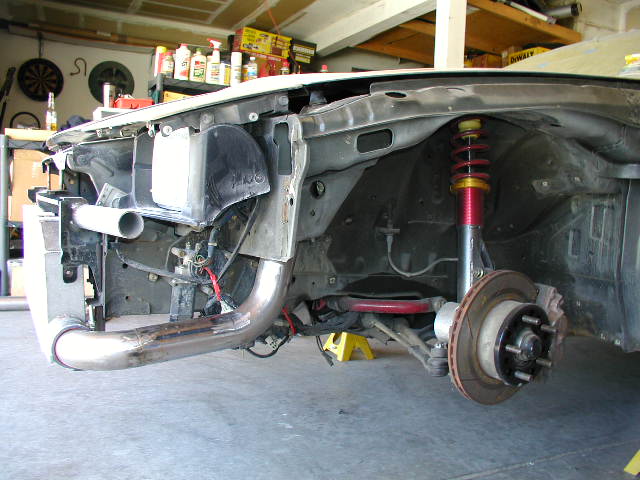

on the turbo side the compressor points down(T66), and the piping goes between the sway bar, and the steering rack

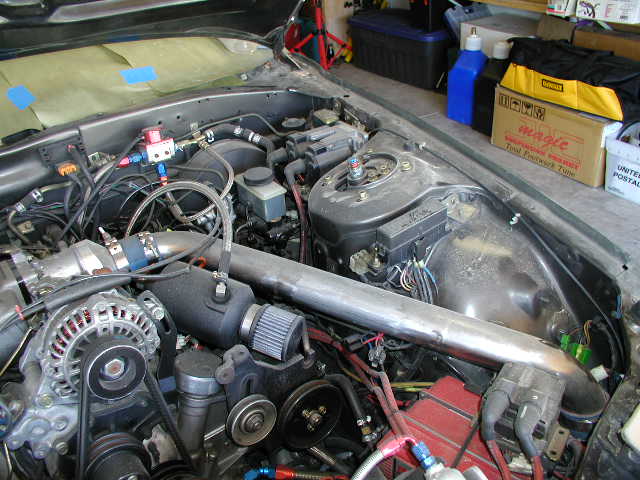

on the driver side, it comes up through the factory 2.5" hole, and straight to the TB elbow



like so



the oil breather is just laying there, it actually sits in front of the 1st gen PS bracket.



Nice pics guys, thx a lot



where'd you get that intercooler from? its HUGE !



my other car looks about like that... hasn't moved in 2yrs on jack stands the whole underside disassembled, cleaned and painted.. its a slow progress.. I like the routing of the piping, smooth bends are much better... I see you got the hood ... i should have gotten in on that....



Boostcoolers on EBay, ~550.00



Thanks to Dave RXHEAVEN, he helped with the piping, I beleive you can still get the hood. Carl



looks like this now
