Pics of my engine assembly so far

I got my engine back from RotaryResurrection about 2 weeks ago. So far things are going pretty well. Im doing the full emissions removal, Tb mod. ported the wastegate to 34mm, PD fix, twin scroll removal, A/C removal, Doing the R-tek 1.7 chip, greddy 720 cc secondaries, sr motorsports 9.5 lbs flywheel and Act xtreme heavy duty clutch. and im also making the engine look pretty .. So far i have the whole exhaust and coolant system done. Im waiting for my injectors to be finished getting cleaned so i can install the rest of the intake system. for the pictures i loosely bolted the UIM on and just to trick myself into thinking that i accomplished something .

So far without the emissions reassembling the engine is pretty easy. the emissions makes this engine alot more complicated than it really is . its taking a while to put it back together due to cleaning painting and waiting for parts. also i can only really work on it on the weekend. but what do you guys think??

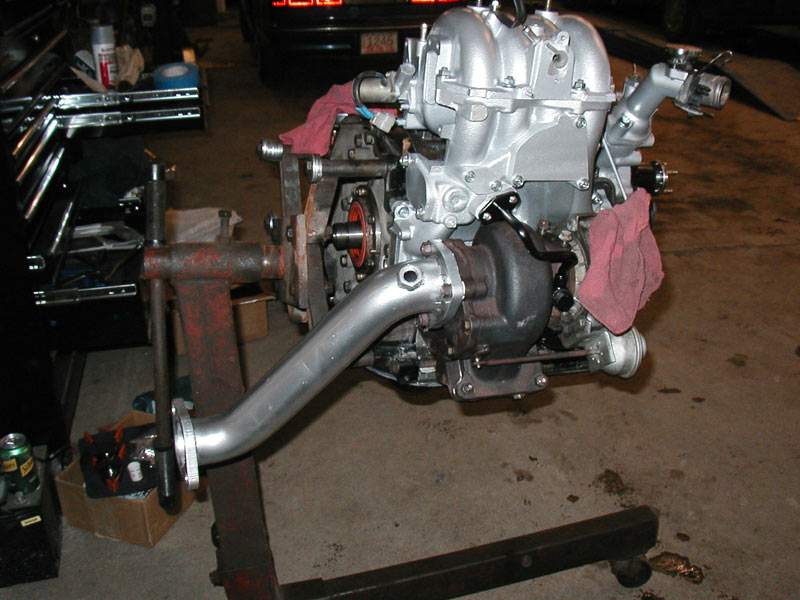

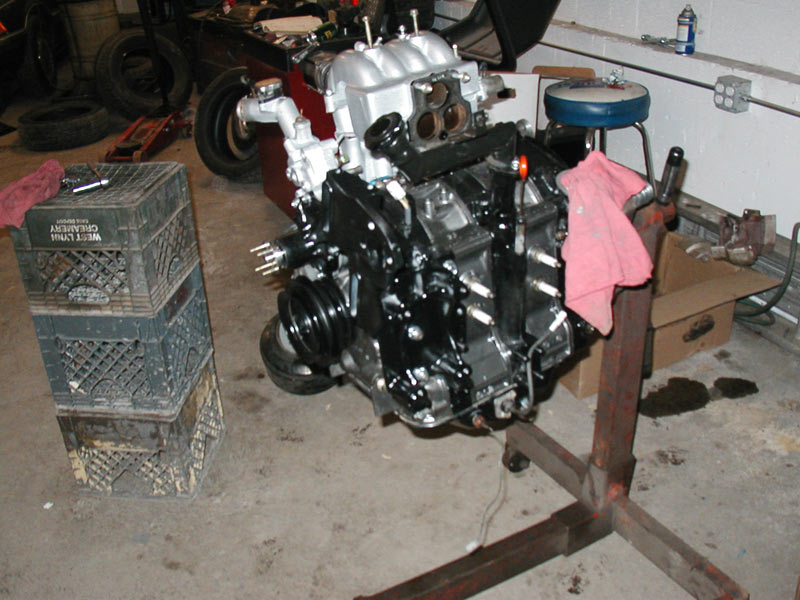

Attached Thumbnails Pics of my engine assembly so far-assembly11505-017.jpg   Pics of my engine assembly so far-assembly11505-019.jpg   Pics of my engine assembly so far-engineturbo-005.jpg
Old 01-20-05, 11:50 PM
  #2
Nurse I need 1300cc's NOW

Thread Starter

alwayssideways's Avatar

Join Date: Dec 2003
Location: Hartford
Posts: 1,261
Likes: 0
Received 1 Like on 1 Post
more pics

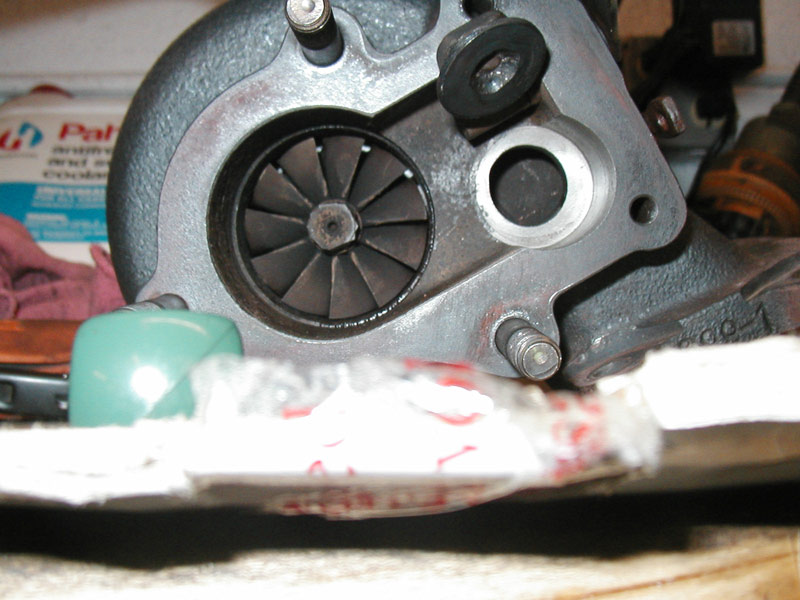

Attached Thumbnails Pics of my engine assembly so far-engineturbo-003.jpg   Pics of my engine assembly so far-engineturbo-008.jpg   Pics of my engine assembly so far-engine-stuff-004.jpg
Old 01-21-05, 12:32 AM
  #3
i spent more on tires...


reboot's Avatar

Join Date: Oct 2001
Location: Oakland, CA
Posts: 1,686
Likes: 0
Received 0 Likes on 0 Posts
nice
