Pics of BLUE TII engine bay teardown/build up
08-26-04, 05:09 PM
#1
Pics of BLUE TII engine bay teardown/build up

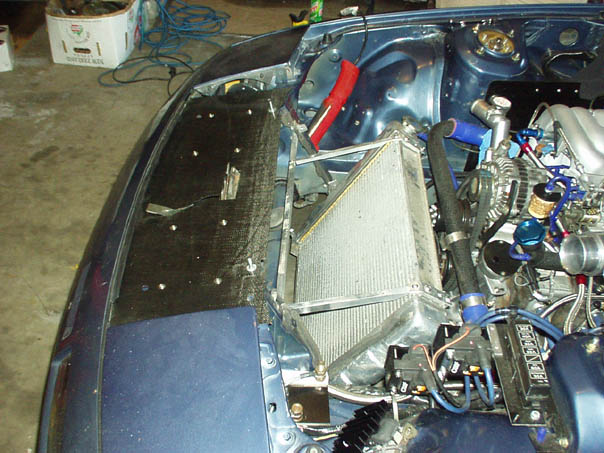

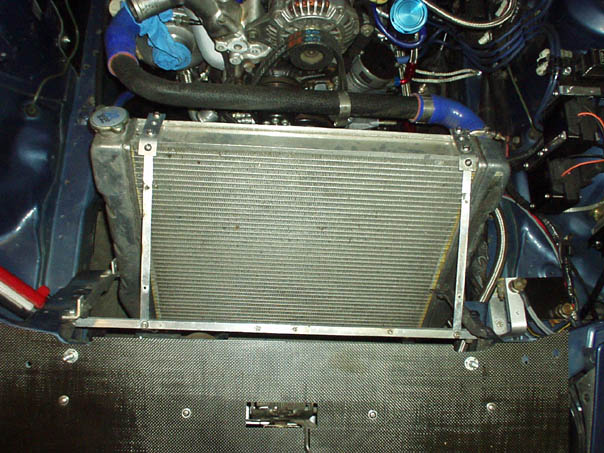

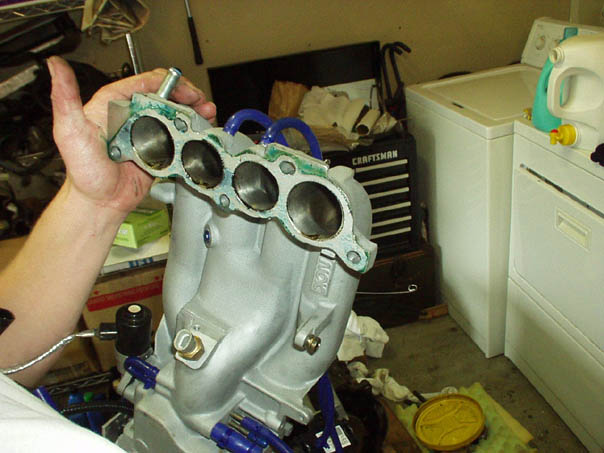

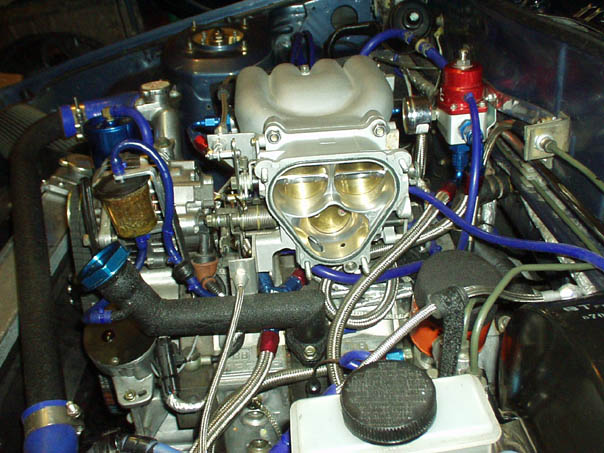

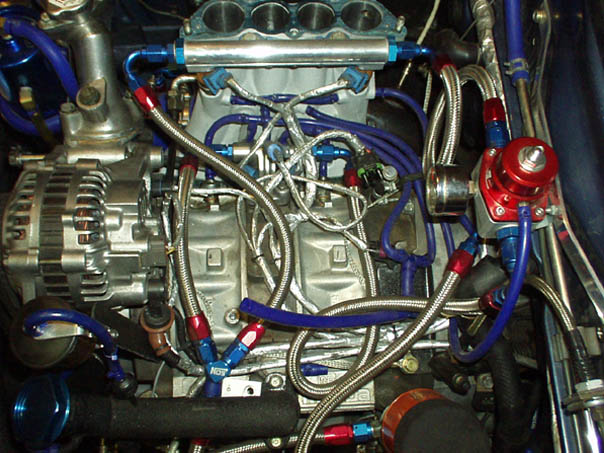

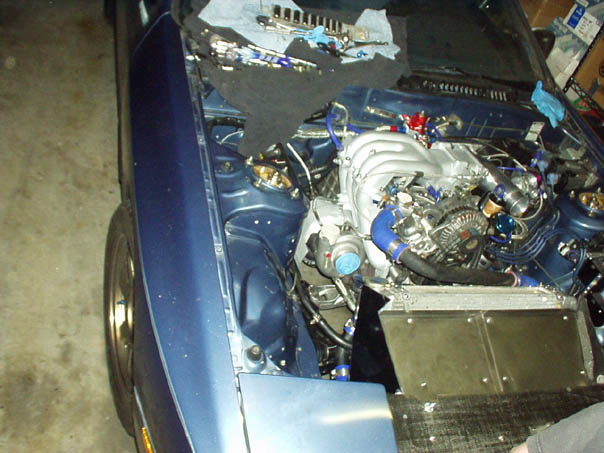

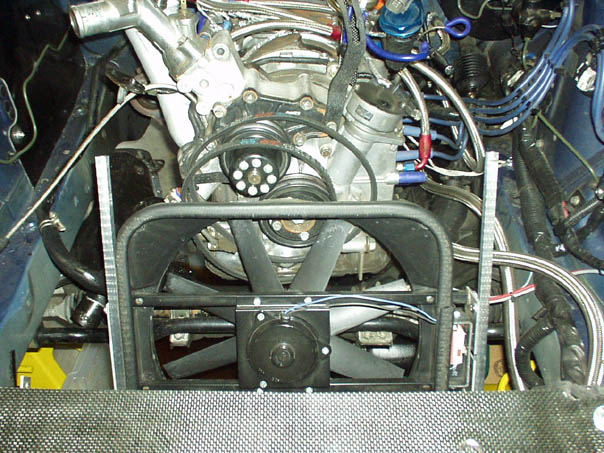

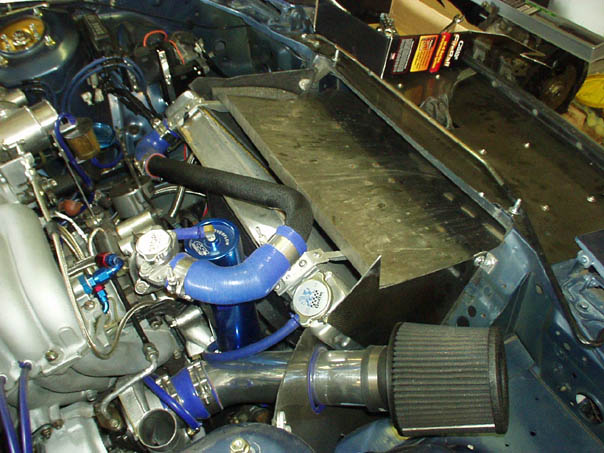

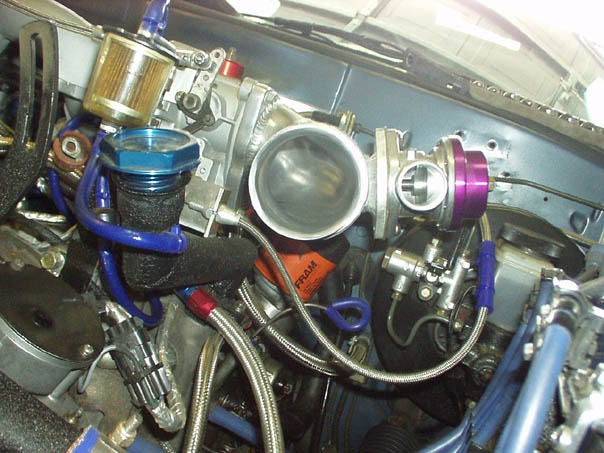

Pics of BLUE TII engine bay teardown/buildup. These are from various teardown/buildups so you can spot differences...

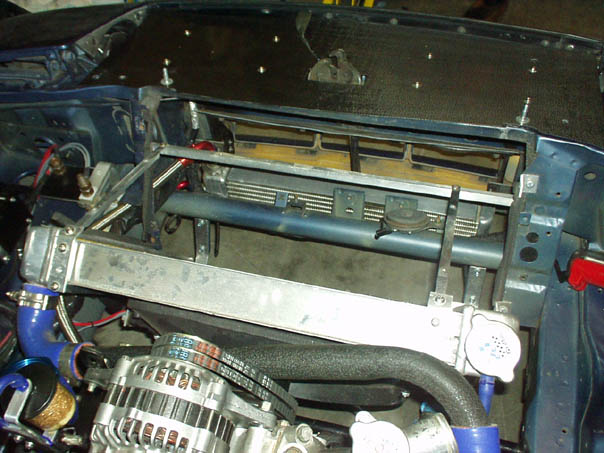

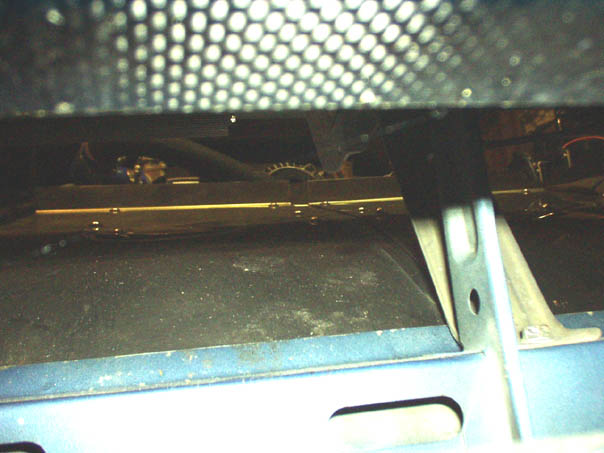

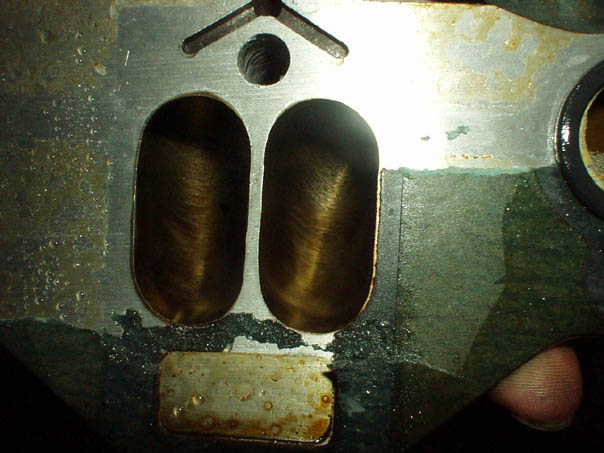

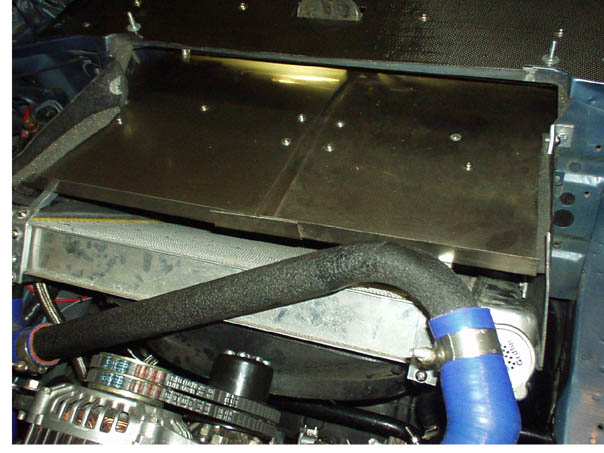

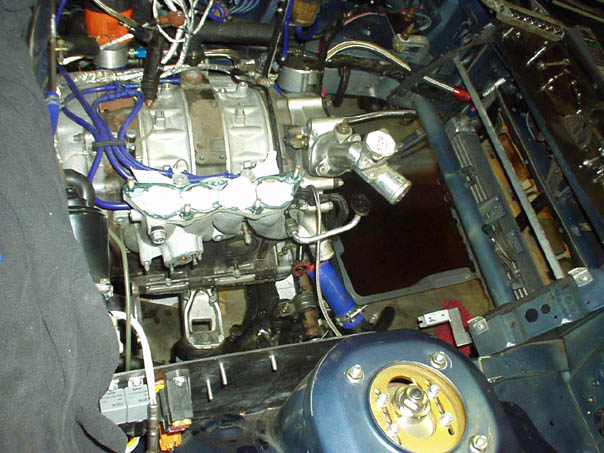

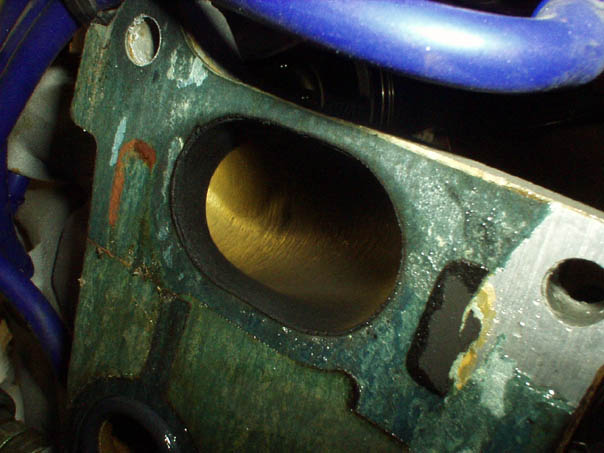

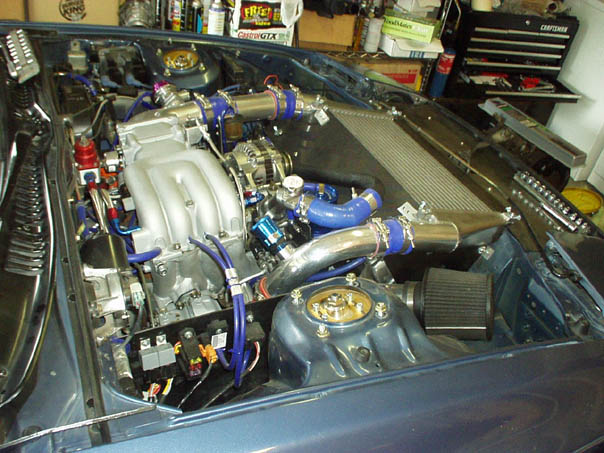

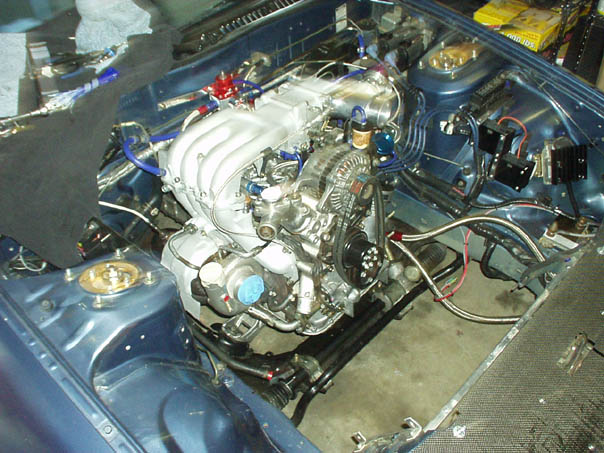

Some of you have asked how I mounted this or that- so here are some pics. Thank ScrapFC for taking all these and more- what a guy!
Some of you have asked how I mounted this or that- so here are some pics. Thank ScrapFC for taking all these and more- what a guy!
Trending Topics
08-26-04, 09:00 PM
#14
Also what are you doin with the mini in the back ground of one of the pictures?
It is a Honda N600. That was my 1st that inspired me to find my very nice original one. Maybe someday it will be set-up w/ a sport bike engine for Auto-X (they weigh 1,300lb stock).
What are you doing for emissions?
No emmisions where I live.
And what is this in your pics? Part of the PCV system or Charcoal?
Oil/air seperator to keep the oil pan under vacuum to aid turbo drain- stops turbo from smoking when oil pressure is high and turbo shaft speed is low.
BTW nice Parallel fuel setup. What did that end up costing?
No idea. It is easier to spend money on your car when you don't keep track of it
It is a Honda N600. That was my 1st that inspired me to find my very nice original one. Maybe someday it will be set-up w/ a sport bike engine for Auto-X (they weigh 1,300lb stock).
What are you doing for emissions?
No emmisions where I live.
And what is this in your pics? Part of the PCV system or Charcoal?
Oil/air seperator to keep the oil pan under vacuum to aid turbo drain- stops turbo from smoking when oil pressure is high and turbo shaft speed is low.
BTW nice Parallel fuel setup. What did that end up costing?
No idea. It is easier to spend money on your car when you don't keep track of it
08-27-04, 01:45 AM
#17
Rotary Enthusiast
Join Date: Jun 2003
Location: Millville, NJ
Posts: 1,424
Likes: 0
Received 0 Likes
on
0 Posts
Question. Did you block off the oil line on the block and just run a vacuum line and the line off of the filler neck on that little catchcan? Just asking, I mounted my catchcan next to my overflow and routed the line from the filler neck through the stock metal line that goes back into the intake. I don't know how well it works yet, my car won't be fired up until probably next Saturday..
08-27-04, 02:07 AM
#18
Senior Member
Join Date: Mar 2003
Location: San Jose, Ca
Posts: 390
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by BLUE TII
Also what are you doin with the mini in the back ground of one of the pictures?
It is a Honda N600. That was my 1st that inspired me to find my very nice original one. Maybe someday it will be set-up w/ a sport bike engine for Auto-X (they weigh 1,300lb stock).
What are you doing for emissions?
No emmisions where I live.
And what is this in your pics? Part of the PCV system or Charcoal?
Oil/air seperator to keep the oil pan under vacuum to aid turbo drain- stops turbo from smoking when oil pressure is high and turbo shaft speed is low.
BTW nice Parallel fuel setup. What did that end up costing?
No idea. It is easier to spend money on your car when you don't keep track of it
It is a Honda N600. That was my 1st that inspired me to find my very nice original one. Maybe someday it will be set-up w/ a sport bike engine for Auto-X (they weigh 1,300lb stock).
What are you doing for emissions?
No emmisions where I live.
And what is this in your pics? Part of the PCV system or Charcoal?
Oil/air seperator to keep the oil pan under vacuum to aid turbo drain- stops turbo from smoking when oil pressure is high and turbo shaft speed is low.
BTW nice Parallel fuel setup. What did that end up costing?
No idea. It is easier to spend money on your car when you don't keep track of it
where do you live if you have no emmisions or how do you get away with that
08-27-04, 11:50 PM
#22
Question. Did you block off the oil line on the block and just run a vacuum line and the line off of the filler neck on that little catchcan?
Yep, that one line off the oil filler is it. It is not so much a catch can as a seperator. It is packed w/ varying densities of bronze wool and a cotton gauze filter at the top. Gets vacuum on top w/ checkvalve and the bottom connects to nearly the highest point of the oil system (3rd gen guys have been known to tap the very oil fill cap itself). It works fairly well, though I hope to design one that will work more like a catch can w/ a seperator section at the top.
hood is pretty much done and in the attic Ian and I will be back in the country in 3 weeks and I will be back in Oregon for a little over a week if you want to pic her up
Sweet! Let me know when you arrive in Oregon again so I can pick it up.
where do you live if you have no emmisions or how do you get away with that
Emerald Triangle, baby! We just get smogged when we initially register the vehicle.
were did you buy those fuel rails?
Primary is a modded S4 rail and 2ndary is the K2RD 1600cc inj rail.
Yep, that one line off the oil filler is it. It is not so much a catch can as a seperator. It is packed w/ varying densities of bronze wool and a cotton gauze filter at the top. Gets vacuum on top w/ checkvalve and the bottom connects to nearly the highest point of the oil system (3rd gen guys have been known to tap the very oil fill cap itself). It works fairly well, though I hope to design one that will work more like a catch can w/ a seperator section at the top.
hood is pretty much done and in the attic Ian and I will be back in the country in 3 weeks and I will be back in Oregon for a little over a week if you want to pic her up
Sweet! Let me know when you arrive in Oregon again so I can pick it up.
where do you live if you have no emmisions or how do you get away with that
Emerald Triangle, baby! We just get smogged when we initially register the vehicle.
were did you buy those fuel rails?
Primary is a modded S4 rail and 2ndary is the K2RD 1600cc inj rail.
10-12-04, 06:52 AM
#25
Where did you tap vacuum? I was going to tap a hole in my TID for a brass NPT -> 1/8th Hose barb, and just run a vacuum line to the top vacuum line on the filler neck. I guess using a seperator would keep it a little cleaner, did you make the seperator, or purchase it?
-Mike
-Mike
Originally Posted by BLUE TII
Question. Did you block off the oil line on the block and just run a vacuum line and the line off of the filler neck on that little catchcan?
Yep, that one line off the oil filler is it. It is not so much a catch can as a seperator. It is packed w/ varying densities of bronze wool and a cotton gauze filter at the top. Gets vacuum on top w/ checkvalve and the bottom connects to nearly the highest point of the oil system (3rd gen guys have been known to tap the very oil fill cap itself). It works fairly well, though I hope to design one that will work more like a catch can w/ a seperator section at the top.
hood is pretty much done and in the attic Ian and I will be back in the country in 3 weeks and I will be back in Oregon for a little over a week if you want to pic her up
Sweet! Let me know when you arrive in Oregon again so I can pick it up.
where do you live if you have no emmisions or how do you get away with that
Emerald Triangle, baby! We just get smogged when we initially register the vehicle.
were did you buy those fuel rails?
Primary is a modded S4 rail and 2ndary is the K2RD 1600cc inj rail.
Yep, that one line off the oil filler is it. It is not so much a catch can as a seperator. It is packed w/ varying densities of bronze wool and a cotton gauze filter at the top. Gets vacuum on top w/ checkvalve and the bottom connects to nearly the highest point of the oil system (3rd gen guys have been known to tap the very oil fill cap itself). It works fairly well, though I hope to design one that will work more like a catch can w/ a seperator section at the top.
hood is pretty much done and in the attic Ian and I will be back in the country in 3 weeks and I will be back in Oregon for a little over a week if you want to pic her up
Sweet! Let me know when you arrive in Oregon again so I can pick it up.
where do you live if you have no emmisions or how do you get away with that
Emerald Triangle, baby! We just get smogged when we initially register the vehicle.
were did you buy those fuel rails?
Primary is a modded S4 rail and 2ndary is the K2RD 1600cc inj rail.
