oxygen senor rewire, GY color?
03-18-06, 11:34 AM
#1
oxygen senor rewire, GY color?
howdy, After noticing my fuel consumtion get less then 10 MPG, i deicded it time to hook the oxygen sensor back up, it might help and i need all the help i can get.
right now the oxygen sensor is only plugged into my AFG.
i looked in the FSM and the wire goes for it is GY, and after searching in a few post on here all i came up with is the wire is GRAY.

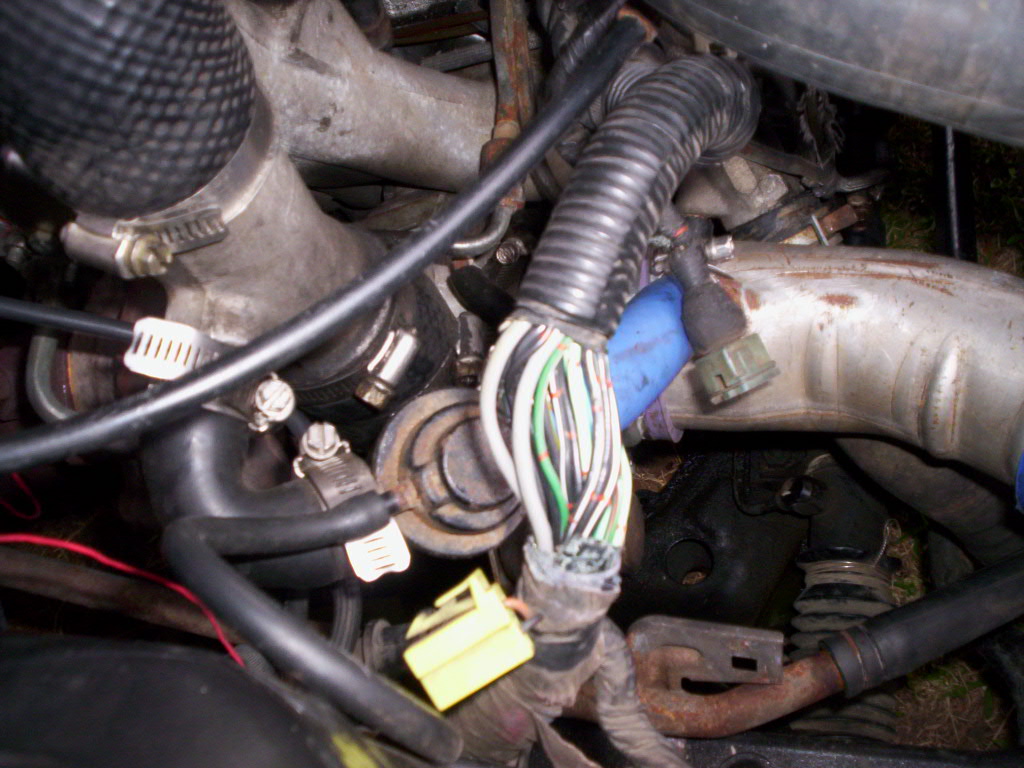

here is where i am tapping into the emmissions harness to get to the oxygen sensor wire, but there are 2 gray wires and a buncha other ones, any one decypher this one out for me? :P thanks
right now the oxygen sensor is only plugged into my AFG.
i looked in the FSM and the wire goes for it is GY, and after searching in a few post on here all i came up with is the wire is GRAY.
here is where i am tapping into the emmissions harness to get to the oxygen sensor wire, but there are 2 gray wires and a buncha other ones, any one decypher this one out for me? :P thanks
03-18-06, 04:25 PM
#3
I R SAD PANDA W/O BAW
I forget the actual color of the o2 wire but the grey is only the shielding I believe. Anyways if you're getting 10mpg it's not the o2 sensor. your problem lies someone else
03-18-06, 05:11 PM
#4
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
What he said. Reconnecting the O2 sensor won't help you. 10mpg indicates a serious leadfoot or a serious problem.
As for the wire, the outer insulator is gray but the inner insulator is black.
As for the wire, the outer insulator is gray but the inner insulator is black.
