dwb87

iTrader: (22)

I didn't really look too far into my FSM... but I need to know the order of the injector clips. I'll try to be more specific. I took off the clips to swap in another engine, and like an idiot didn't label them. I just need to know which clip goes where from the harness to the injector.

Go48

iTrader: (7)

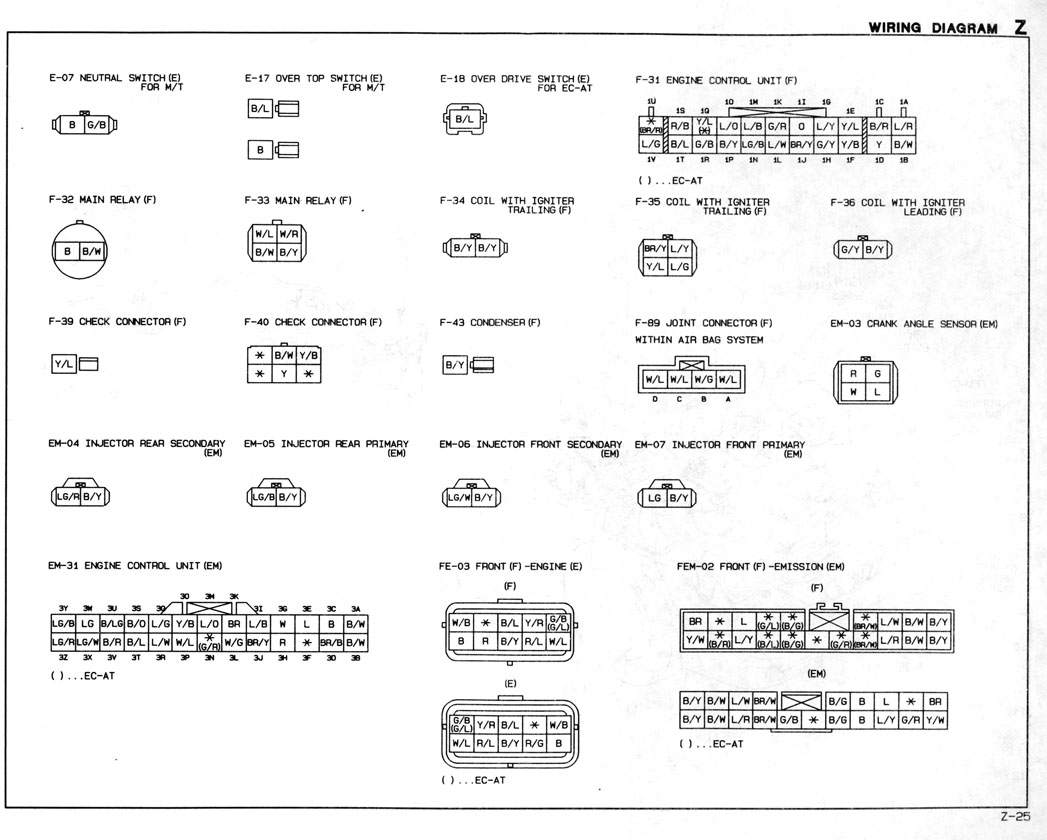

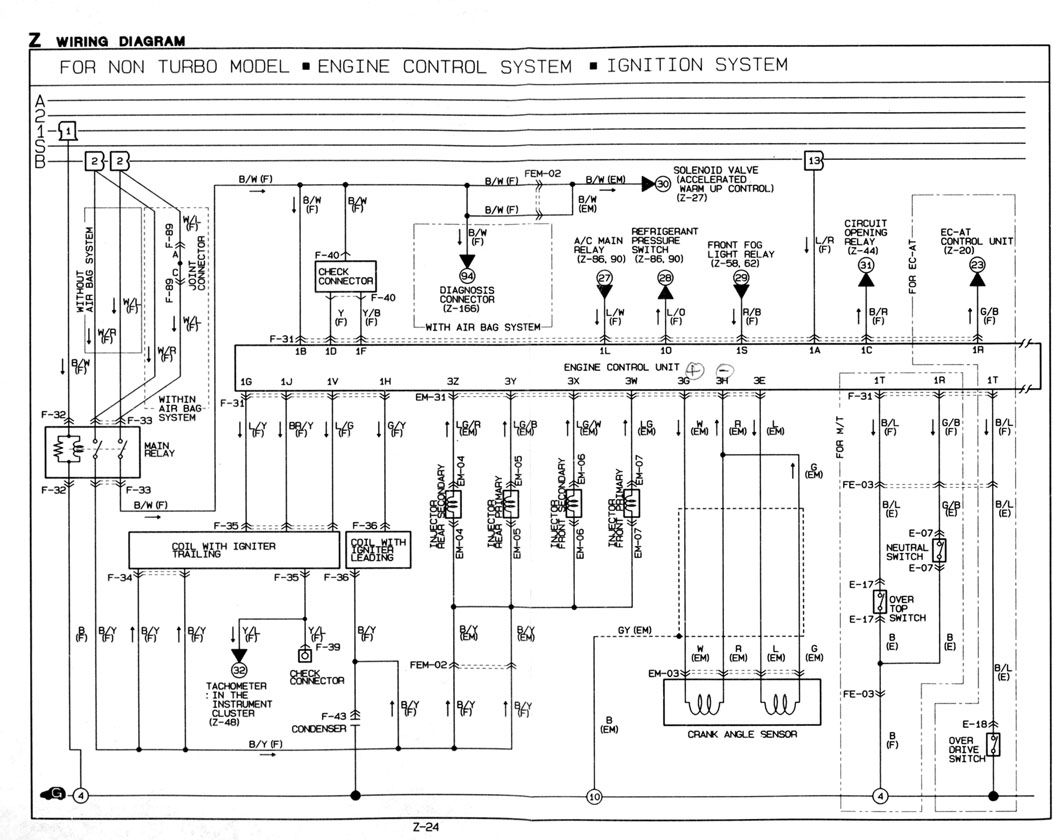

Assuming you have a non-turbo, S5, and that you are referring to the connectors, here are some wiring diagrams that will help. Match the wire colors in the connectors to the appropriate injectors.

dwb87

iTrader: (22)

Actually it's a TII S4... I'll just look a little harder into my FSM I guess. Thank you for the effort though.

The Wankler

iTrader: (14)

They all have differnet lengths. Did you cut close to the clips? If so, lay the wires out from the drivers side of the block.

Wait, go do a ohm test on the positive of each injector from the cpu. That will tell you what you need to know.
