Oil Temp. / Oil Pressure Gauges Stopped Working (WITH PICTURES!)
#1
Oil Temp. / Oil Pressure Gauges Stopped Working (WITH PICTURES!)
So my aftermarket Oil Temp. and Oil Pressure Gauges by Auto Meter stopped working all of a sudden and I have no idea why. Can you figure out what might be wrong?
2 Blue Wires near the Oil filter.
1 Red Wire in the fusebox.
1 Blue Wire inside the panel on the underside of the dashboard.

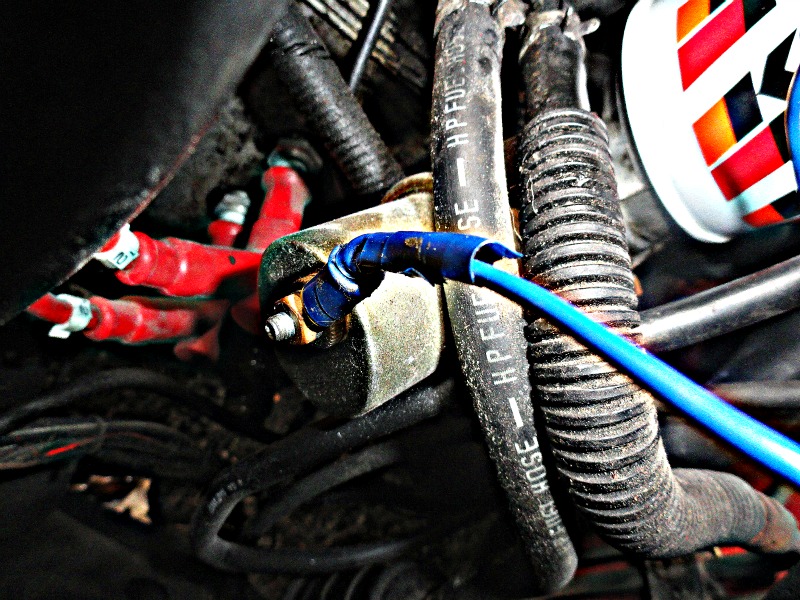

1st wire:

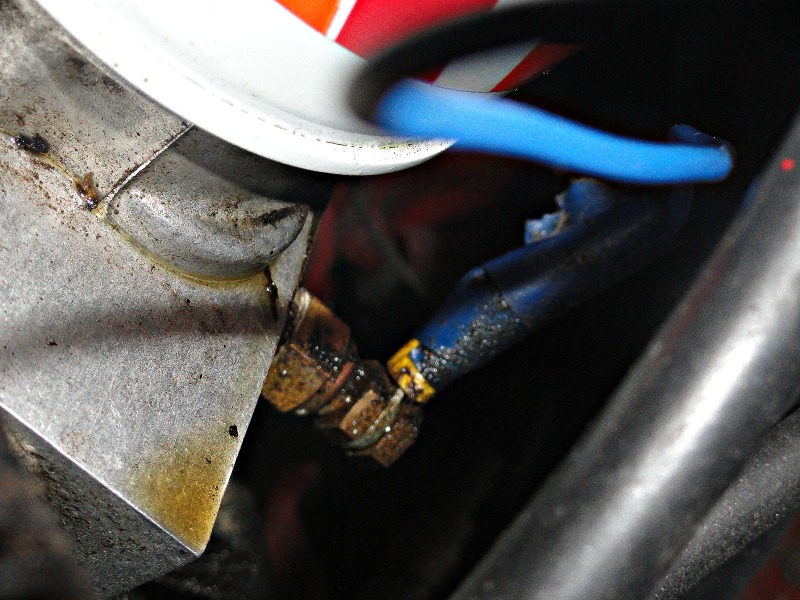

2nd wire:
Wire attached to fusebox:

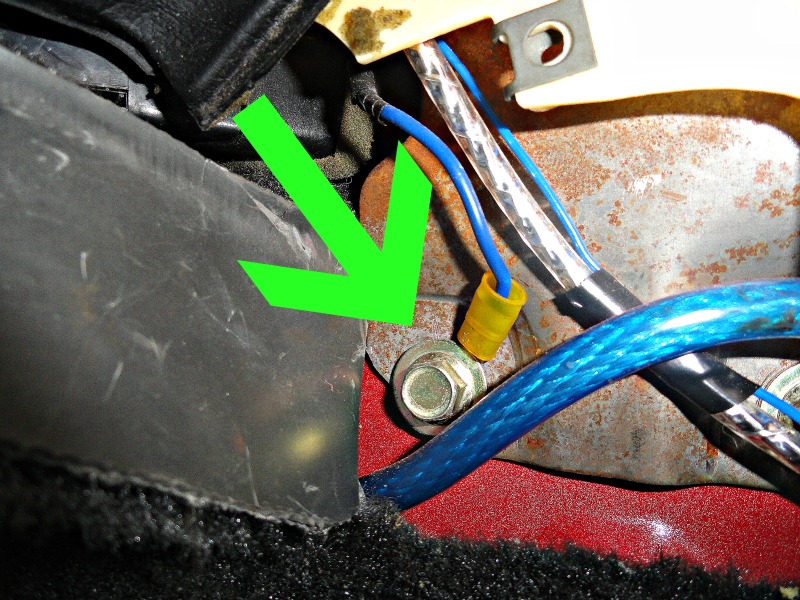

Blue wire in driverside underside dashboard:
2 Blue Wires near the Oil filter.
1 Red Wire in the fusebox.
1 Blue Wire inside the panel on the underside of the dashboard.
1st wire:
2nd wire:
Wire attached to fusebox:
Blue wire in driverside underside dashboard:
Last edited by Kenshin XI; 12-15-11 at 12:40 PM.
#2
Cake or Death?
iTrader: (2)
"Invalid attachment".
Derp.
Edit: Ah, there they are.
Your wiring is confusing.
I'll assume the two blue wires in the bay come directly from the gauges and the poorly tapped wire in the fusebox is supposed to provide +12v (apparently, full time) to same and wire #4 looks like a common ground for something.
What does the wiring at the gauges themselves look like?
Derp.
Edit: Ah, there they are.
Your wiring is confusing.
I'll assume the two blue wires in the bay come directly from the gauges and the poorly tapped wire in the fusebox is supposed to provide +12v (apparently, full time) to same and wire #4 looks like a common ground for something.
What does the wiring at the gauges themselves look like?
