loader52x

Got my car back from being torn down for along time 87 turboll trying to get it back together been read up on stuff and looking at why I got and noticed I have no plug or wire for the injector resister box. I did run it that way along time ago. So am I ok with out it or do I need to figure something out. Then noticed I have no knock control box or ecm control module do I need these or am I ok with out? Thanks for everyone's time and help in advance.

Craze8

Car wont run without an ecm, injectors will fail or drivers will burn out of ecm with no resistor box unless a high resistance injector is used.

loader52x

Sounds good thanks. Do you know where the plugs in? I though it was in the passenger side kick panel by the atmosphere sensor but I couldn't find a free connector down there

satch

iTrader: (1)

There is a metal protective plate (cover has 4 bolts) on the floor near the kick panel which covers the ECU.

loader52x

All I have left under there is the 3 plugs for the ecu. Am I missing a pig tail for it then?

loader52x

http://i.ebayimg.com/00/s/MTIwMFgxNjAw/z/4KAAAMXQ74JTWGSU/$_1.JPG
Here a like to the module I'm talking about.

satch

iTrader: (1)

The three plugs plug into the ECU. Not sure what you feel you need besides the ECU.

loader52x

From what I read it's call the electronic control module (ecm )

satch

iTrader: (1)

For the RX7 they're referred to as an ECU. You can find them in the classified section.

loader52x

It's not the ecu I'm talking about. it a smaller gold box with a single plug on the top.the number on it is X4T3 5672-8802

satch

iTrader: (1)

How about providing information which will tell us what you are talking about such as the number of wires in the plug to this yet to be determined device and the wire colors.

loader52x

It have 13 pin on the module I don't know where it plugs in so I don't know what colors the wires are. If you go to the link that I posted the other day it's a pic of the module thanks again for your time

Rikk

iTrader: (2)

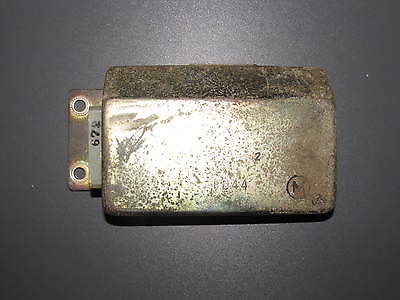

Is this the image you were referring to?

loader52x

Yep that's it

Rikk

iTrader: (2)

That looks to be your EGI main relay that should be located near the firewall on the driver side the engine compartment I believe there are two plugs to the relay
GL Rikk

loader52x

Ok I'll take a look thanks

satch

iTrader: (1)

It's not the main relay. That relay has two plugs, one w/2 wires and the other w/4 wires. You stated the item in question has but one plug for 13 wires.

Rikk

iTrader: (2)

^^ this is all true, I cannot think of a one plug with 13 wires?

clokker

iTrader: (2)

Abs?

loader52x

Right it has 13pin 6 on each side and 1 in the middle

satch

iTrader: (1)

Are you certain the pictured item came from the car?

loader52x

99%

WyomingTII

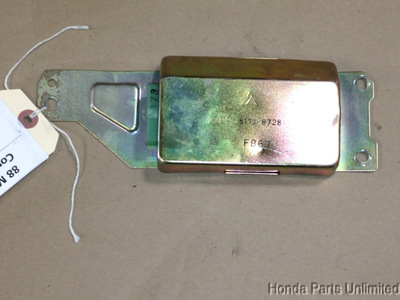

This is it in the mounting bracket

loader52x

Could be my car came back to me in Disassembled so I have just the box. It has two bolt holes on the top
