Nobody Here Can Tell Me Where the Fuel Pump Relay

Thread Tools

Search this Thread

Old 06-06-14, 02:21 PM
  #1
Senior Member

Thread Starter

harley71105's Avatar

Join Date: Mar 2004
Location: Shreveport, Louisiana
Posts: 435
Likes: 0
Received 0 Likes on 0 Posts
Arrow Nobody Here Can Tell Me Where the Fuel Pump Relay
I've looked this forum over a dozen times trying to find out where the fuel pump relay is on an 88 N/A Rx7 is. I have looked a several but the parts described does not resemble the actual part from the parts stores which happens to be the same part at all the stores. Also, finding a link to an FSM is like trying to find a needle in a haystack.
harley71105 is offline
Reply Like
Old 06-06-14, 03:24 PM
  #2
Cake or Death?

iTrader: (2)

clokker's Avatar

Join Date: Jan 2007
Location: Mile High
Posts: 10,249
Received 63 Likes on 53 Posts
Originally Posted by harley71105
Also, finding a link to an FSM is like trying to find a needle in a haystack.
Most brutal three seconds of my life.
clokker is offline
Reply Like
Old 06-06-14, 04:31 PM
  #3
Senior Member

Thread Starter

harley71105's Avatar

Join Date: Mar 2004
Location: Shreveport, Louisiana
Posts: 435
Likes: 0
Received 0 Likes on 0 Posts
Well, I guess I was searching in the wrong place with the wrong words...THANKS for the link.
harley71105 is offline
Reply Like
Old 06-07-14, 01:51 PM
  #4
Senior Member

Thread Starter

harley71105's Avatar

Join Date: Mar 2004
Location: Shreveport, Louisiana
Posts: 435
Likes: 0
Received 0 Likes on 0 Posts
Downloaded the FSM and there is no reference to a part known as "Fuel Pump Relay". Some post's refer to it as the "Circuit Opening Relay" on the steering column. However, it does not resemble the Fuel Pump Relay.
harley71105 is offline
Reply Like
Old 06-07-14, 02:14 PM
  #5
Moderator

iTrader: (1)

satch's Avatar

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Received 12 Likes on 11 Posts
There's a fuel pump relay and resistor found on S4 turbos (under the AFM), but not S4 NA's. All S5's have them, S4 turbos ,yes, but no S4 NA's.
Last edited by satch; 06-07-14 at 02:17 PM.
satch is offline
Reply Like
Old 06-07-14, 02:16 PM
  #6
Moderator

iTrader: (1)

satch's Avatar

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Received 12 Likes on 11 Posts
Originally Posted by clokker
Did you find the lighter?
satch is offline
Reply Like
Old 06-07-14, 02:27 PM
  #7
Full Member

iTrader: (12)

Join Date: Nov 2003
Location: Simi Valley, CA.
Posts: 187
Likes: 0
Received 1 Like on 1 Post
CA
The fuel pump is turned on by the fuel pump relay (By air filter assy.) and the fuel pump relay is turned on by the circuit opening relay (under dash by steering assy.).
TargaRX is offline
Reply Like

Trending Topics

Old 06-07-14, 02:36 PM
  #8
Back in the game

iTrader: (-1)

TehMonkay's Avatar

Join Date: Nov 2005
Location: Louisville KY
Posts: 2,456
Likes: 0
Received 2 Likes on 2 Posts

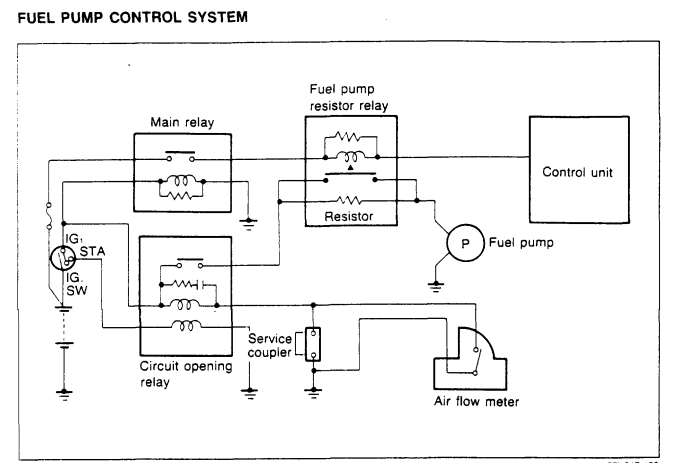

Name: fuelcircuit_zpsd021c3d8.png Views: 329 Size: 45.1 KB

The resistor relay isn't there on the NA, it's just a straight line from the circuit opening relay, the circuit opening relay is attatched by the steering column.
TehMonkay is offline
Reply Like
Old 06-07-14, 03:13 PM
  #9
Senior Member

Thread Starter

harley71105's Avatar

Join Date: Mar 2004
Location: Shreveport, Louisiana
Posts: 435
Likes: 0
Received 0 Likes on 0 Posts
Ok, but a post just above the writer says that S4 N/A's do not have a fuel pump relay. The parts houses all carry or can order one and I cannot find anything that resembles that "Fuel Pump Relay" anywhere on the car. There are other posts that say the same as the above one all in this forum.
harley71105 is offline
Reply Like
Old 06-07-14, 03:16 PM
  #10
Moderator

iTrader: (1)

satch's Avatar

Join Date: Jun 2005
Location: tulsa,ok.
Posts: 11,738
Received 12 Likes on 11 Posts
Originally Posted by harley71105
Ok, but a post just above the writer says that S4 N/A's do not have a fuel pump relay. The parts houses all carry or can order one and I cannot find anything that resembles that "Fuel Pump Relay" anywhere on the car. There are other posts that say the same as the above one all in this forum.
The diagram in post #8 is for the turbo. Okay? The S4 NA does not have this relay.
satch is offline
Reply Like
Old 06-09-14, 11:19 AM
  #11
I break Diff mounts

iTrader: (1)

Digi7ech's Avatar

Join Date: Jun 2002
Location: Avondale, Arizona
Posts: 4,403
Likes: 0
Received 4 Likes on 2 Posts
There's a relay under the dash that switches the fuel pump. I think it's black. It commonly cut into to make fuel cut switches...
Digi7ech is offline
Reply Like
Old 06-09-14, 05:41 PM
  #12
Old Rotary Dog


wrankin's Avatar

Join Date: Feb 2003
Location: Durham, NC
Posts: 1,461
Likes: 0
Received 2 Likes on 2 Posts
Page 50-36 of the 1988 FC Electrical manual shows the circuit for the non-turbo car. The shape and wire color for the relay connector (F-08) is shown on the same page. The location of the F-08 connector is under the dash as shown on page 50-37.

I don't see the big problem here.

-b
