No Tach No Volt Gauge
Ok So i have an intermittent problem with My Tach and My voltage gauge. sometimes they work sometimes they don't. At first i thought it was just a trailing coil problem until i noticed the voltage gauge as well. So today i stated the car to move it. Both worked fine. Then when i started it up to move it back. Not working. Is there a fuse that could affect just these two gauges and not the temp,fuel, oil?

I cant find my wireing diagram right now so any help is appreciatied.

Car is a 91 n/a vert.
AUGieDogie is offline
Reply Like
Old 06-29-09, 06:09 AM
  #2
Rotary Freak

HAILERS2's Avatar

Join Date: Jul 2008
Location: FORT WORTH TEXAS
Posts: 1,660
Likes: 0
Received 1 Like on 1 Post

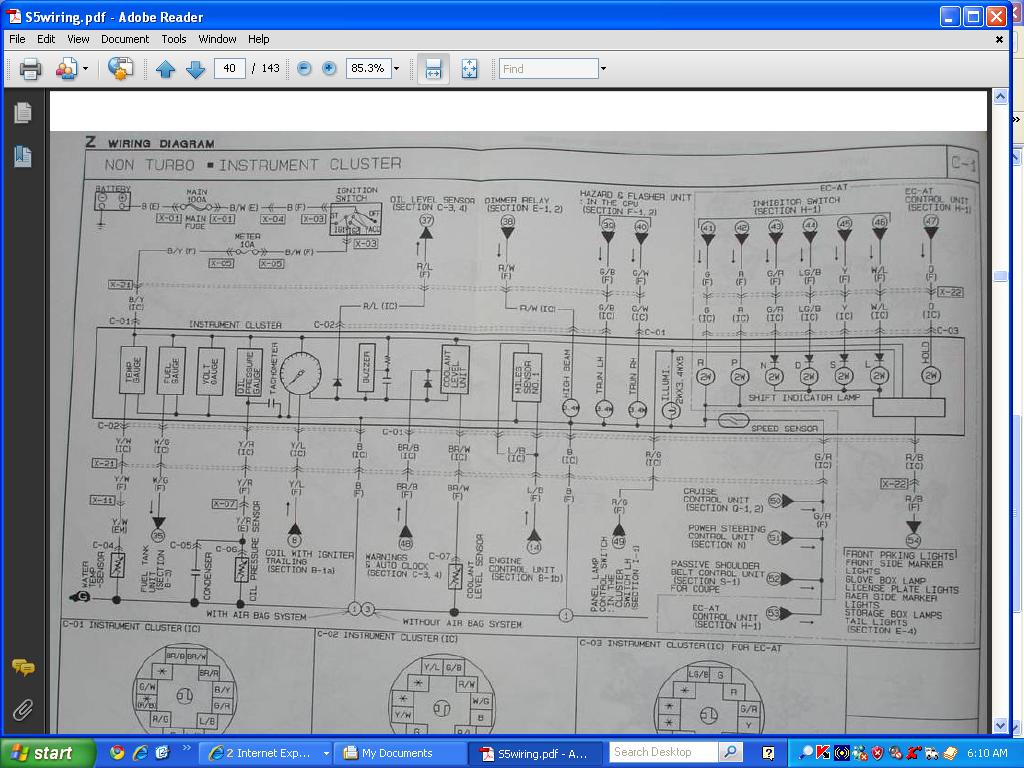

Both are fed by the METER fuse. But the METER fuse powers the other gauges also.
Attached Thumbnails No Tach No Volt Gauge-meterfuse.jpg
HAILERS2 is offline
Reply Like
Old 06-30-09, 12:07 AM
  #3
Rotary Freak

Thread Starter
iTrader: (4)

AUGieDogie's Avatar

Join Date: May 2003
Location: seattle
Posts: 1,587
Likes: 0
Received 4 Likes on 3 Posts
hmmm, so it looks like if the fuse is blown i shouldn't get ANY gauges. Thats kinda what i was figuring. Crap.
AUGieDogie is offline
Reply Like
Old 06-30-09, 08:58 AM
  #4
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
If just those two gauges are intermittant, maybe their mounting screws have backed off?
Aaron Cake is offline
Reply Like
Old 07-01-09, 12:18 AM
  #5
Rotary Freak

Thread Starter
iTrader: (4)

AUGieDogie's Avatar

Join Date: May 2003
Location: seattle
Posts: 1,587
Likes: 0
Received 4 Likes on 3 Posts
The screws holding them to the gauge backing? or do you mean some ground screw?
AUGieDogie is offline
Reply Like
Old 07-01-09, 06:53 PM
  #6
Engine, Not Motor

iTrader: (1)

Aaron Cake's Avatar

Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 108 Likes on 91 Posts
The screws that hold the gauge to the circuit board.
