No fuel out of primary injectors
I've tried searching the Faq, & nothing came up. So here goes my first post. It's an 88 SE converted to 5-speed. Battery went dead a day & that is when the problem started. Checked the EGI fuses & both are good. Pulled the injectors & both read 3ohms, & both click when hooked up to a battery. Main relay checks fine. So does ECU & AFM. Fuel gets all the way up to the injectors just not out, so I know fuel pump is working. Any replies will be appreciated.
#2
RE WannaBE
iTrader: (3)
Join Date: Nov 2006
Location: Chelan,WA
Posts: 123
Likes: 0
Received 0 Likes
on
0 Posts

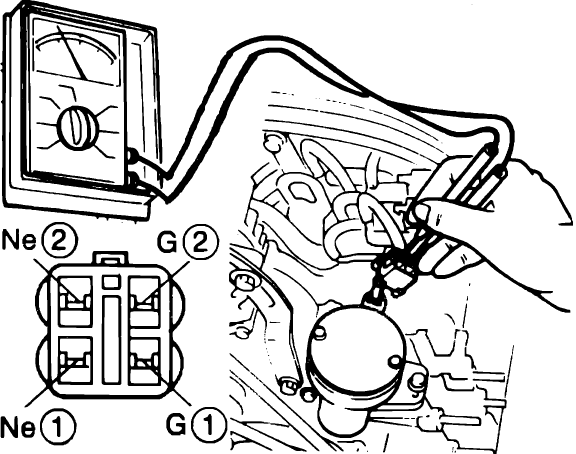

As long as your injectors are within the Resistance reading,(1.5-3 ohms on 1986-87 )**(Non-Turbo)** (12-16 ohms on 1988 models) **(Non-Turbo)** which was what you did first, you need to check the resistance in your crank angle sensor, that will tell you if they are getting the pulse width modulated signal from the PCM(duty cycle)= (on and off time). To test it you need to disconnect and ohm the connector.. **(See picture)**..test continuity from terminal G1-G2 and Ne1 - Ne2...Values should read 110-210 ohms.. now (phew) if that is still ok, you need to check your solenoid resistor..**(see picture again)**1986-87 models..(5-7 ohms)..check continuity between Terminals (A-B or C-D)those can go bad too once you have tested all that you should find your problem. It's all about testing and elminating the good parts in the system, that should lead you to your problem...oh and I almost forgot, make sure that the ignition switch is clicking that main relay on !
good luck...
Dave..
good luck...
Dave..
Last edited by jdmdavey; 11-09-06 at 10:12 AM.
#4
I'm a boost creep...
Join Date: Jan 2002
Location: Auckland, New Zealand
Posts: 15,608
Likes: 0
Received 8 Likes
on
8 Posts
Originally Posted by TRINI4U
It's an 88...
Pulled the injectors & both read 3ohms...
Pulled the injectors & both read 3ohms...
