Need a wiring expert.
06-03-07, 07:18 PM
#3
Cruisin in the whip
Join Date: Feb 2007
Location: San diego
Posts: 160
Likes: 0
Received 0 Likes
on
0 Posts
ok, not to be rude, however, there are wiring diagrams of your car online...i beleive in the FAQ there are links, as well as in most car guides (haynes and chilton) so i suggest picking up one of those...
06-03-07, 07:32 PM
#4
Full Member
Thread Starter
Join Date: Nov 2003
Location: MI
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts
well your not rude, however most of them arent very clear without an electrical engineering degree. being there are some people here who know the wiring like the back of their hand. so if your not going to be useful or have an answer dont bother posting. I have spent a good while digging through fsm's and some of the **** im working on is so messed up you couldnt tell what it is or where it originally was.
06-03-07, 08:16 PM
#6
Senior Member
Join Date: Mar 2007
Location: USA/Mass
Posts: 310
Likes: 0
Received 0 Likes
on
0 Posts
if you can figure out a map you can figure out the diagram... there is a key beforehand. Read the key and refer to it. Most of the FSM's tell you everything down to the color itself
06-03-07, 08:38 PM
#7
always searchin
Join Date: Jan 2004
Location: home of the Airborne, NC
Posts: 409
Likes: 0
Received 0 Likes
on
0 Posts
the most common interior hackups are usually do to
1. aftermarket/custom alarms
2. aftermarkte/custom stereos.
check to see if those wires have any effect on those. i cant say that i know which wires those are. i'm just taking a shot in the dark.
1. aftermarket/custom alarms
2. aftermarkte/custom stereos.
check to see if those wires have any effect on those. i cant say that i know which wires those are. i'm just taking a shot in the dark.
Trending Topics
06-03-07, 08:59 PM
#8
2 Rotors, 1 Turbo
Join Date: Feb 2004
Location: Atlanta, GA
Posts: 1,099
Likes: 0
Received 0 Likes
on
0 Posts

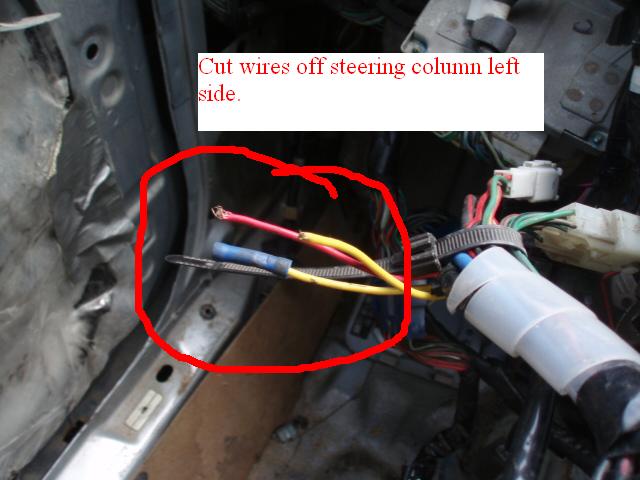

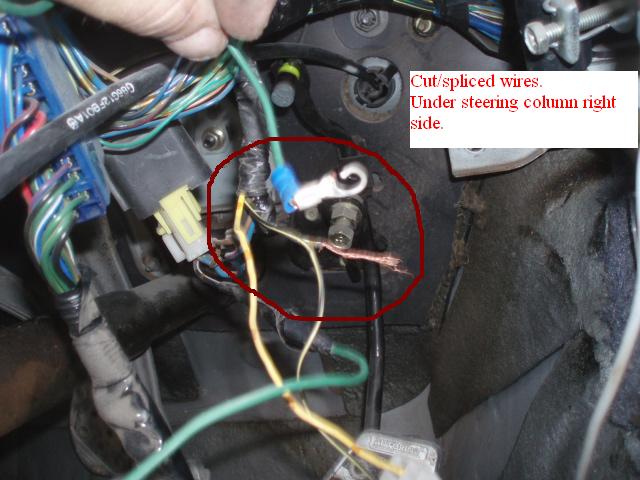

If it's near the steering column, there was probably some sort of alarm installed. If those two other plugs were in the center console with the "security" lights, they are probably part of it. I pulled my security light out and made it work with an aftermarket alarm LED, so that's probably what they did. Use a meter to test voltage on them to find out what they do, and then check to make sure everything works, i.e. dome light, door locks, windows, etc.
06-04-07, 08:42 AM
#9
Full Member
Thread Starter
Join Date: Nov 2003
Location: MI
Posts: 170
Likes: 0
Received 0 Likes
on
0 Posts

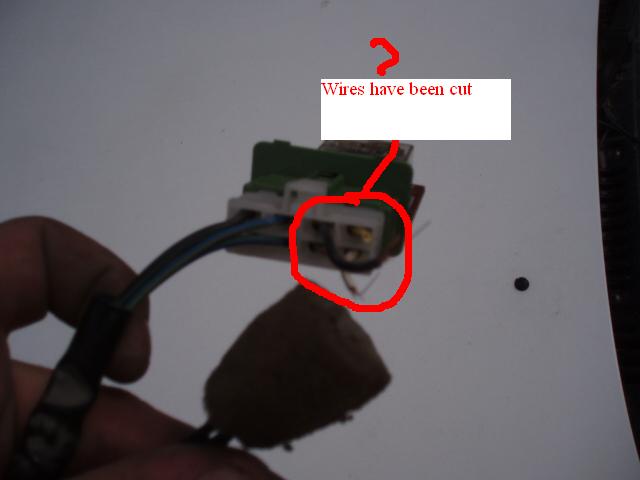

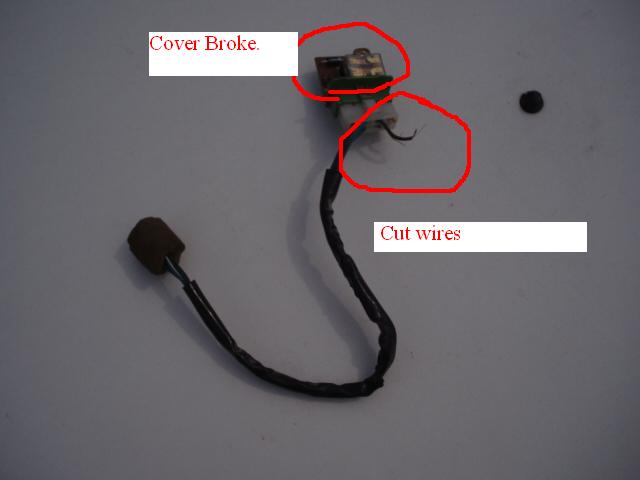

Seriously, any idea on the first 2 pics? that is obviously a damaged stock part just concerned on what it is/was.
Suiicidalpenguin and micaheli honestly i dont care, once again more useless info that doesnt help solve the problem
Suiicidalpenguin and micaheli honestly i dont care, once again more useless info that doesnt help solve the problem
