Need Some Vacuum Hose Pictures... Please Help
hey guys ill be putting together my 88 TurboII and ill be installing the motor real soon my only thing that i forgot to do was tape or take pictures of where each vacuum hose goes =( so i need some pics of peoples vaccum hoses or a diagram with no emmisions and rats nest removal i remembered i only had a couple of hoses nothing crazy so really need the help dont want to send the car out yet until i myself see it running....
TwEaK
TwEaK
04-27-05, 09:08 AM
#3
vac leak
Join Date: Aug 2003
Location: Rutgers
Posts: 1,247
Likes: 0
Received 0 Likes
on
0 Posts
ok...i did this recently so its still fresh in my mind....on the LIM the nipple that slants back towards the firewall goes to the FPR....the nipple between the primary oil injectors goes to the second nipple on the TB on the firewall side ....boost/bov goes to the nipple on the UIM
04-27-05, 03:40 PM
#5
Rotors? What Are Those?
Thread Starter
iTrader: (6)
Join Date: Jul 2003
Location: Jefferson City, Tn
Posts: 2,601
Likes: 0
Received 0 Likes
on
0 Posts
wtf is an FPR im sorry im a little fried n stressed out.... the second one i know and i know that the 4 omp injectors goes to the last one on the tb.... bov i know.... torean you mind taking a bunch of pics for me and emailing them to me plase i would really appreciate it cause not only did i disconnect the vacuum hoses but dissconected some other randomd hoses to like for the actuator for the tubo =/ dont know where that goes... the vaccuum for the brake booster... the pressure sensor also.... i disconnected several ones not shure if you coule please take some pics for me i would really really appreciate it....
Thanks
TwEaK
Thanks
TwEaK
04-27-05, 05:21 PM
#6
IFO Forced Induction Slo
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by TwEaK
...the actuator for the tubo =/ dont know where that goes... the vaccuum for the brake booster... the pressure sensor also.... i disconnected several ones not shure if you coule please take some pics for me i would really really appreciate it....
Thanks
TwEaK
Thanks
TwEaK
Wastegate----------->Intake Manifold PSI
Brake Booster------->Intake Manifold PSI
Pressure Sensor---->INtake Manifold PSI

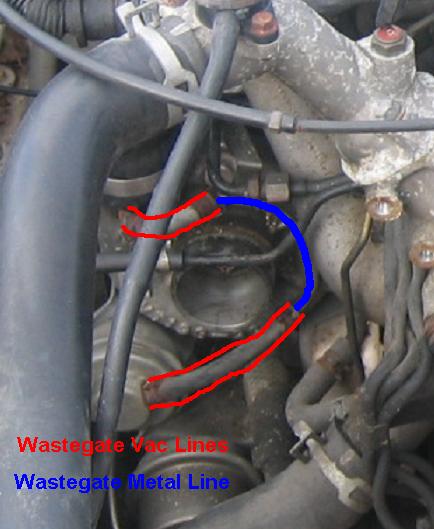

Wastegate Pic Below

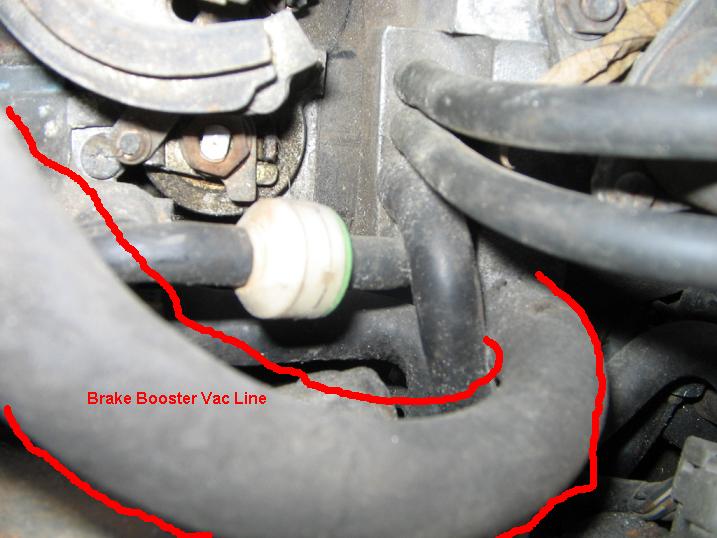

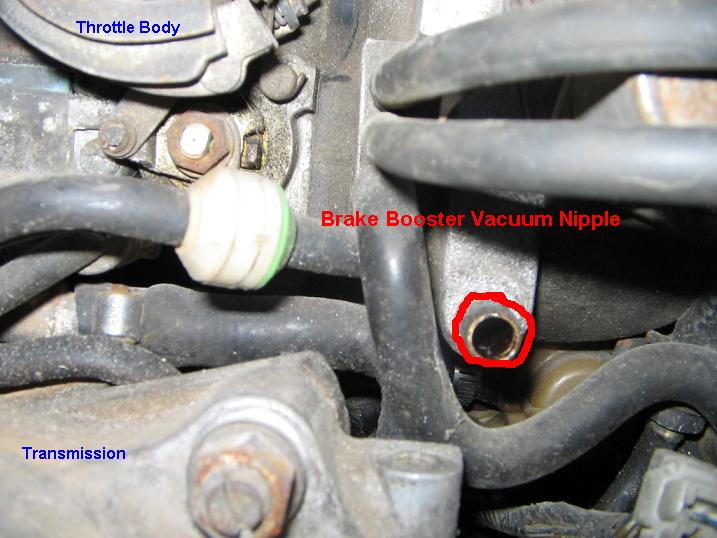

Brake Booster connects to back side of UIM
Pressur Sensor could connect to the nipple by the BAC
04-27-05, 06:07 PM
#7
Rotors? What Are Those?
Thread Starter
iTrader: (6)
Join Date: Jul 2003
Location: Jefferson City, Tn
Posts: 2,601
Likes: 0
Received 0 Likes
on
0 Posts
im still lost lol...... pressure sensor i understand i actually have that T'ed off with the bov brake booster im still lost and wastegate im lost i see the picture but maybe only on my car my turbo has this weird metal line that goes to the back side of the turbo traveling up and i remembered it had a line to it but forgot what it does....and where it goes
TwEaK
TwEaK
Trending Topics
04-27-05, 07:10 PM
#8
IFO Forced Induction Slo
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
More pics...

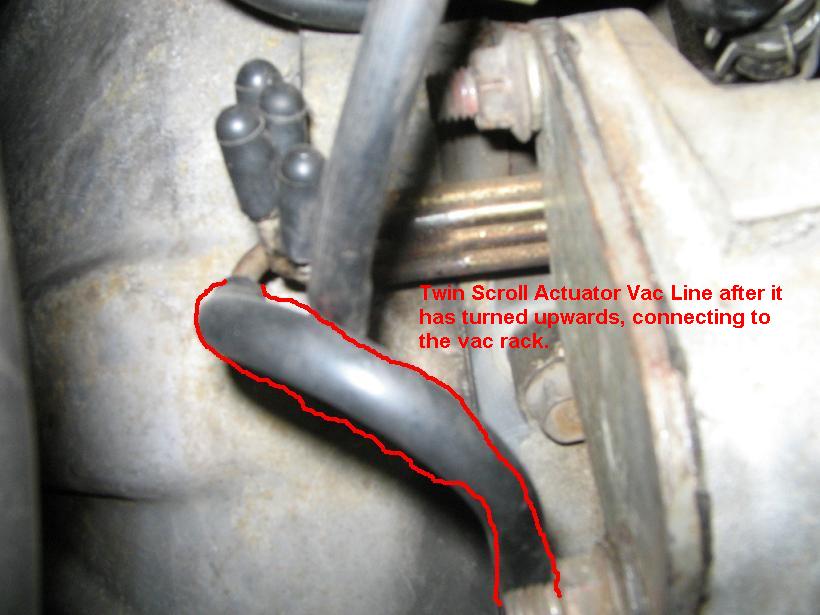

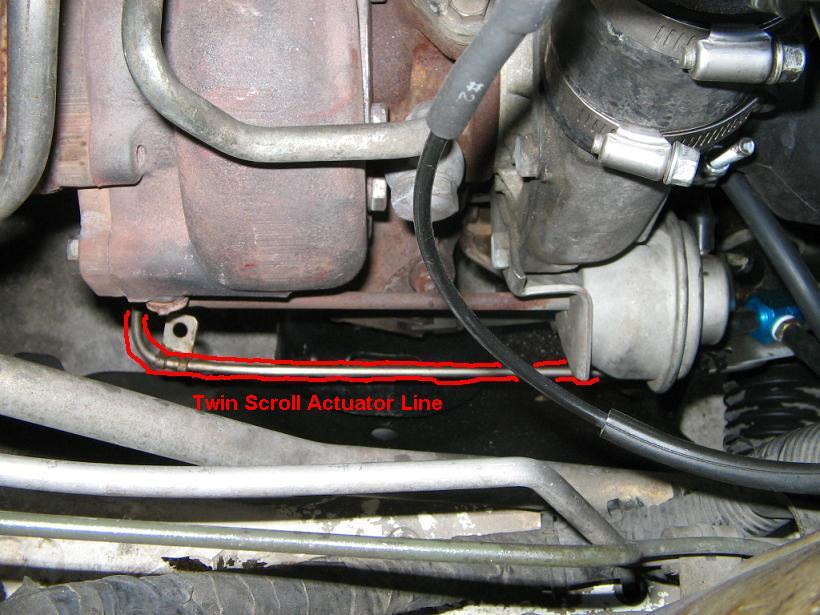

P.S. The weird metal line you speak of is the Twin Scroll Actuator Line, NOT the wastegate actuator line.
***EDIT***Coma's and periods really help others understand what you are trying to explain. Just trying to help.
P.S. The weird metal line you speak of is the Twin Scroll Actuator Line, NOT the wastegate actuator line.
***EDIT***Coma's and periods really help others understand what you are trying to explain. Just trying to help.
04-27-05, 10:22 PM
#9
D.I.L.U.S.I.
iTrader: (5)
Join Date: Nov 2002
Location: L-Town pa
Posts: 2,051
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by bigdv519
More pics...
P.S. The weird metal line you speak of is the Twin Scroll Actuator Line, NOT the wastegate actuator line.
***EDIT***Coma's and periods really help others understand what you are trying to explain. Just trying to help.
P.S. The weird metal line you speak of is the Twin Scroll Actuator Line, NOT the wastegate actuator line.
***EDIT***Coma's and periods really help others understand what you are trying to explain. Just trying to help.
04-27-05, 10:31 PM
#10
Rotors? What Are Those?
Thread Starter
iTrader: (6)
Join Date: Jul 2003
Location: Jefferson City, Tn
Posts: 2,601
Likes: 0
Received 0 Likes
on
0 Posts
Bigdv519 Greatly appreciate the help. I have a basic understanding now. Ok hers another update i dont have that metal tubing mess anymore, i have everything running seperatly. Now im guessing that the twin scroll actuator line connects to any vaccuum??? I understand the brake booster now. and i know that the 4 omp vaccum goes to a vaccum also. and the nipple on the lim between the 2 primary injectors goes to a vaccum also, and the pressure sensor goes t'ed to my BOV and LIM. now just wondering doesnt one of the fuel rals have a nipple on it that needs to go to a vaccum also??? if not i think that should be everything....
TwEaK
TwEaK
04-28-05, 12:14 AM
#11
I R SAD PANDA W/O BAW
The 4 OMP lines do not go to vaccuum. The thicker OMP line goes to the larger of the 3 or 4 (depending on your UIM) nipples on the back of the UIM. Run 4 lines from the OMP spider to each oil injector.
The nipple on the inside of the LIM pointing towards the firewall goes to the FPR on the secondary fuel rail.
The nipple on the inside of the LIM pointing towards the firewall goes to the FPR on the secondary fuel rail.
Last edited by ilike2eatricers; 04-28-05 at 12:17 AM.
04-28-05, 01:50 AM
#12
Full Member
Join Date: Dec 2002
Location: Kirkland, WA
Posts: 116
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by ilike2eatricers
The 4 OMP lines do not go to vaccuum. The thicker OMP line goes to the larger of the 3 or 4 (depending on your UIM) nipples on the back of the UIM. Run 4 lines from the OMP spider to each oil injector.
The nipple on the inside of the LIM pointing towards the firewall goes to the FPR on the secondary fuel rail.
The nipple on the inside of the LIM pointing towards the firewall goes to the FPR on the secondary fuel rail.

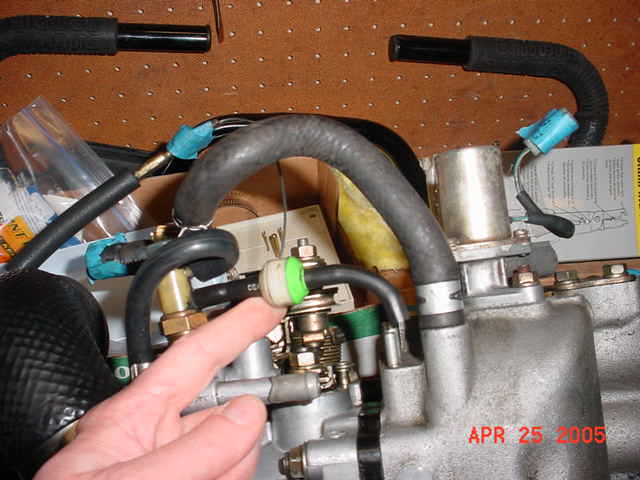

Hmmm...I have 3 nipples on the back of my 88 T-2 UIM. Previous owner put on smaller diameter aftermarket hoses. Does this mean that the one (w/valve) I'm pointing to in the pic goes to larger of the 3 nipples?
I thought I had all hoses marked but obviously not :-(
04-28-05, 09:45 AM
#14
Rotary Enthusiast
Join Date: May 2002
Location: Boston
Posts: 1,203
Likes: 0
Received 0 Likes
on
0 Posts
Guys its called an FSM, it has the complete vacuum diagram. I had my engine apart for 6 months and used that to get everything back together and now shes running.
If you want it give me your email or tell me how to post it on here cuz i have no clue how. Its on abode 6.0
If you want it give me your email or tell me how to post it on here cuz i have no clue how. Its on abode 6.0
04-28-05, 01:28 PM
#16
I R SAD PANDA W/O BAW
I'm sure you've seen the rats nest removal diagram. It's so simple I dont get how people have trouble with it. Just search for it. It's been posted hundreds of times.
04-28-05, 04:47 PM
#17
IFO Forced Induction Slo
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
***TIP***
Tweak, since you have the UIM off still, do what I did and completly replace the old, hard, and probably leaking, vacuum spider for the OMP injectors. Oriellys has these little vac line kits that have 4 and 5 way vacuum tee's. I also zip-tied every vacuum line under there.
Tweak, since you have the UIM off still, do what I did and completly replace the old, hard, and probably leaking, vacuum spider for the OMP injectors. Oriellys has these little vac line kits that have 4 and 5 way vacuum tee's. I also zip-tied every vacuum line under there.
04-28-05, 08:52 PM
#18
Rotors? What Are Those?
Thread Starter
iTrader: (6)
Join Date: Jul 2003
Location: Jefferson City, Tn
Posts: 2,601
Likes: 0
Received 0 Likes
on
0 Posts
actually i do plan to have everything zip tied i found out that my vacuum spider is cracked at one of the plastic things... were can i get it new???? and i finally understand everything if i have any problems ill reply here lets see how it goes when it come to assembly
TwEaK
TwEaK
04-29-05, 12:44 AM
#21
Carter 2.0

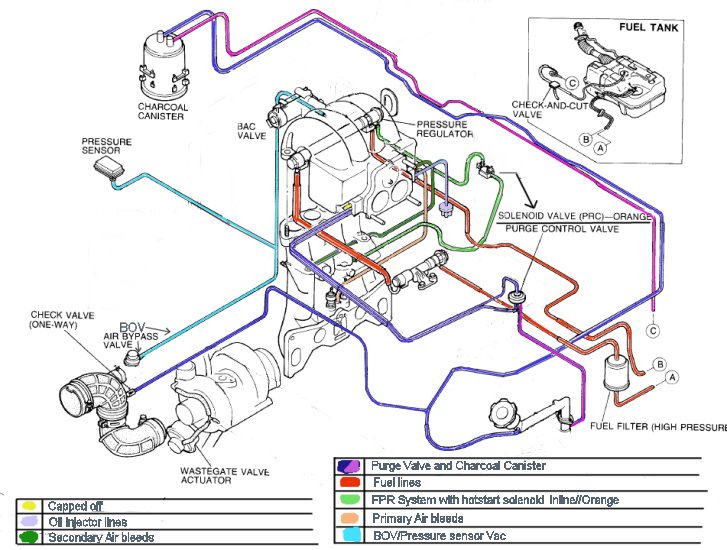

the first pic is the vacuum diagram that should help a little
The second is my Webelos Patrol that took 2nd overall at this weeks Scout competition!! My hadnsome young man is in the middle without a hat
The second is my Webelos Patrol that took 2nd overall at this weeks Scout competition!! My hadnsome young man is in the middle without a hat
04-29-05, 03:03 PM
#23
Carter 2.0
What plastic thing are you describing??? Is it Green with Black or is it White with Green or is it all black. The vacuum check valves are expensive at the dealership. you need to go the junkyard and pull them from Mazdas' fords' and Mercury's
04-29-05, 05:59 PM
#25
IFO Forced Induction Slo
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
***TIP***
You don't even have to ask them for it. Go to the 3rd aisle, 2nd shelve on the right, about half way down in a green box.
