Need some help ID'ing this LIM
05-31-14, 07:04 AM
#1
Paper mache seals
Thread Starter
iTrader: (1)
Join Date: Apr 2006
Location: Linthicum
Posts: 682
Likes: 0
Received 0 Likes
on
0 Posts
Need some help ID'ing this LIM

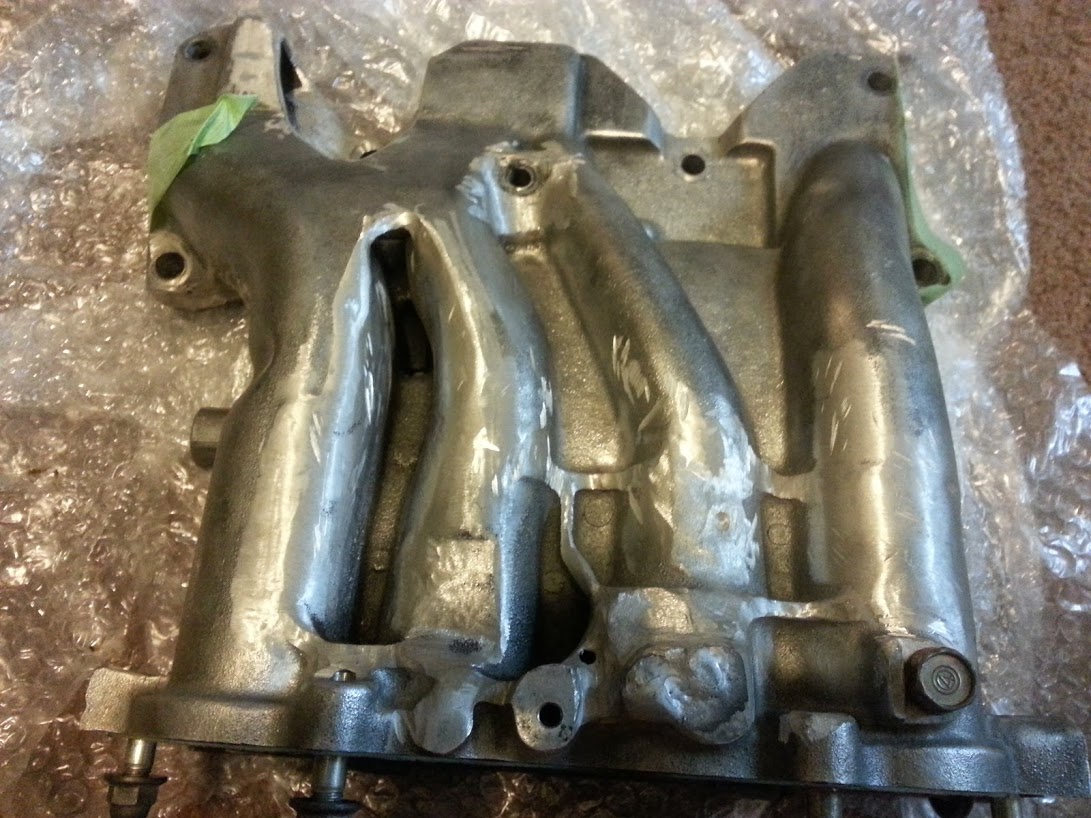

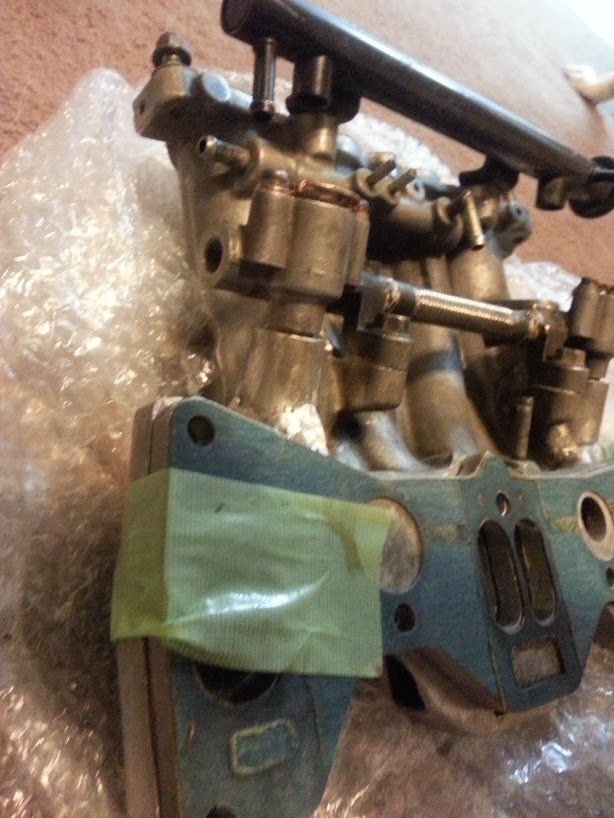

Picked up a 13b-re manifold setup from the japanese auctions that said it was "diverted for use on fc3s." The UIM looks like it hasnt been messed with too much, but the LIM has a bunch of stuff done. From what I can tell, there is a side feed fuel rail, top feed rail, and no emissions, but just wanted to know what it started out as.
05-31-14, 02:25 PM
#4
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,849
Received 2,613 Likes
on
1,852 Posts
process of elimination says it started life as a 13B cosmo manifold. it is an interesting piece for sure, the japanese seem to prefer running 6 injector setups over just running bigger injectors.
process of elimination goes like this;
emissions have been shaved, but it looks like they were removed from the outside, and not the inside, so it is not an FD engine.
it needs an adaptor to bolt to a 13B-T, so it is not a 13B-T intake.
it also looks like the side feed injectors were added, as the rail has that braided line section in it, which isn't stock, so that means the top feed rail IS stock.
so therefore, its certainly must be the 13B cosmo engine.
process of elimination goes like this;
emissions have been shaved, but it looks like they were removed from the outside, and not the inside, so it is not an FD engine.
it needs an adaptor to bolt to a 13B-T, so it is not a 13B-T intake.
it also looks like the side feed injectors were added, as the rail has that braided line section in it, which isn't stock, so that means the top feed rail IS stock.
so therefore, its certainly must be the 13B cosmo engine.
05-31-14, 09:43 PM
#5
MECP Certified Installer
process of elimination says it started life as a 13B cosmo manifold. it is an interesting piece for sure, the japanese seem to prefer running 6 injector setups over just running bigger injectors.
process of elimination goes like this;
emissions have been shaved, but it looks like they were removed from the outside, and not the inside, so it is not an FD engine.
it needs an adaptor to bolt to a 13B-T, so it is not a 13B-T intake.
it also looks like the side feed injectors were added, as the rail has that braided line section in it, which isn't stock, so that means the top feed rail IS stock.
so therefore, its certainly must be the 13B cosmo engine.
process of elimination goes like this;
emissions have been shaved, but it looks like they were removed from the outside, and not the inside, so it is not an FD engine.
it needs an adaptor to bolt to a 13B-T, so it is not a 13B-T intake.
it also looks like the side feed injectors were added, as the rail has that braided line section in it, which isn't stock, so that means the top feed rail IS stock.
so therefore, its certainly must be the 13B cosmo engine.
