Im Just About Done With I rebuild but I'm having problems getting all my wire connections to connect correctly need to find a picture of how the wiring harness goes in between the upper and lower intake, or underneath the lower intake.



Sorry, forgot to say its for an S5 Na



Any connectors in particular you're having trouble with?

The harness is rather thick and clunky, particularly behind the thermostat housing where the OMP and ACV connect but should be fairly "preformed" by age/heat and fall mostly into place.

Although I just installed my intake/vac spider/harness a few months ago, my photography skills are legendarily bad and I have no pics that make sense of the process.



Yeah right now I have it running just behind the thermostat housing and its pushing up against those two sensors right there and I can get everything to fit and its been hanging around for the last two years of the shape is pretty much gone now

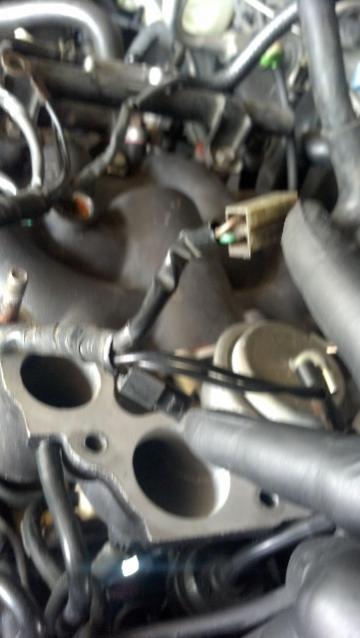

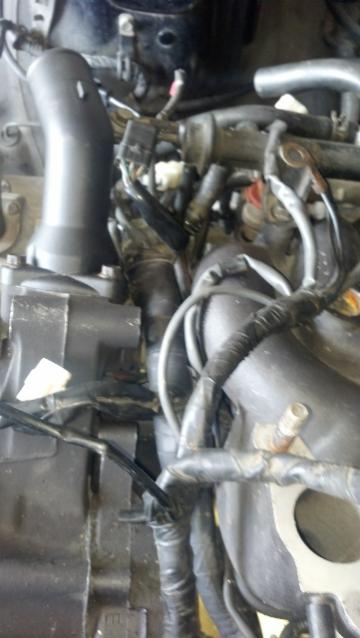

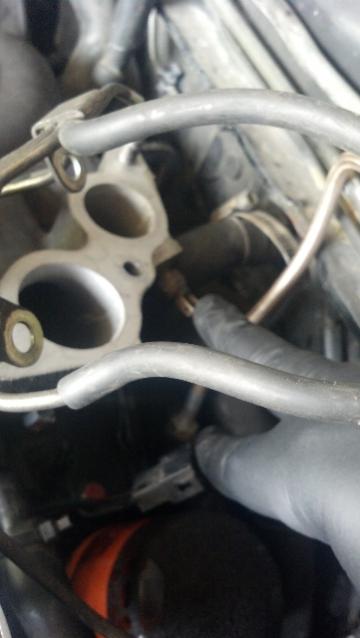

first two pictures of the same that's where the wires need to go the second picture of the two connectors that need to connect those wires and the third pictures where I got the wiring harness running currently its not able to reach
