need the part number for the...
#2
Senior Member
Join Date: Oct 2001
Location: Grand Rapids, MI
Posts: 596
Likes: 0
Received 0 Likes
on
0 Posts

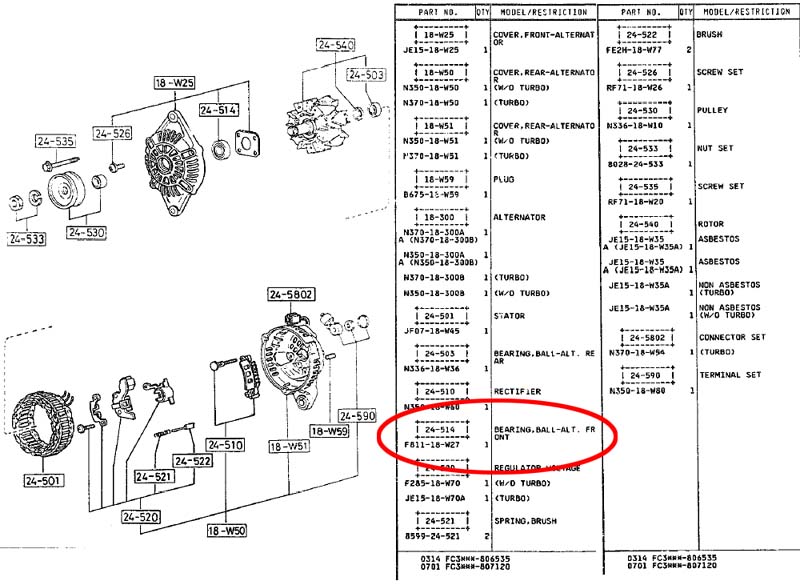

In the May '92 Parts Catalogue its 24-514. "Bearing, Ball-Alt. Front" (Page 1-E11)
However, it does not indicate if it is a Sanden or the Nippondenso and not enuf detail to tell which one it is. Sorry.
However, it does not indicate if it is a Sanden or the Nippondenso and not enuf detail to tell which one it is. Sorry.
#6
http://www.mazdamotorsports.com/weba...servlet/PubRX7
92's IIRC are the same as 91's. Not sure though. Might PM Icemark or mebbe he'll chime in and answer that one.
EDIT: 91's are the same as 92's. It lumps them together. LOL
92's IIRC are the same as 91's. Not sure though. Might PM Icemark or mebbe he'll chime in and answer that one.
EDIT: 91's are the same as 92's. It lumps them together. LOL
Last edited by unW7WZ; 04-20-07 at 01:58 AM. Reason: typo & it says on the damn page!
Trending Topics
#8
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts
Does anybody know the actual mitsubishi part number for the alternator itself? Could be the part or the model number.. Will probably look like N3A118300 or B64J18W70
I would like these for S4 and S5. I'm pretty sure they are the same for turbo/NA.
Thanks.
I would like these for S4 and S5. I'm pretty sure they are the same for turbo/NA.
Thanks.
#9
Winter sucks
Join Date: Jan 2004
Location: Newberg, Oregon
Posts: 3,083
Likes: 0
Received 0 Likes
on
0 Posts
I think I just found them.....
1991 Alternator 2 1.3 80 RE13B w/ Turbo MITSUBISHI A2T18874 1-1165-01MI MI IR/IF 80
1991 Alternator 2 1.3 80 RE13B wo/ Turbo MITSUBISHI A2T17574 1-1164-01MI MI IR/IF 80
The A2TXXXXX numbers are the OEM part numbers I'm pretty sure. I thought they were going to say "18W80" or something.... Oh well.
EDIT:
After some research, here are some updated part numbers.
(86-88 ALL) Mazda: N318-18-300 Mitsubishi: A2T47974 or A2T04474
(89-91 NA) Mazda: N350-18-300 Mitsubishi: A2T17574
(89-91 Turbo) Mazda: N370-18-300 Mitsubishi: A2T18874
1991 Alternator 2 1.3 80 RE13B w/ Turbo MITSUBISHI A2T18874 1-1165-01MI MI IR/IF 80
1991 Alternator 2 1.3 80 RE13B wo/ Turbo MITSUBISHI A2T17574 1-1164-01MI MI IR/IF 80
The A2TXXXXX numbers are the OEM part numbers I'm pretty sure. I thought they were going to say "18W80" or something.... Oh well.
EDIT:
After some research, here are some updated part numbers.
(86-88 ALL) Mazda: N318-18-300 Mitsubishi: A2T47974 or A2T04474
(89-91 NA) Mazda: N350-18-300 Mitsubishi: A2T17574
(89-91 Turbo) Mazda: N370-18-300 Mitsubishi: A2T18874
Last edited by micah; 04-20-07 at 03:49 AM.
