Need help with uim+tb vacuum!
Hi, I need help hooking my uim and throttle body back. Please help! Thanks in advance.
Here's the problem, i removed all the hoses and now i forgot where they go. And also i removed the air pump and blocked off the opening and was wonderin where i can hook up my boost pressure sensor and bov.

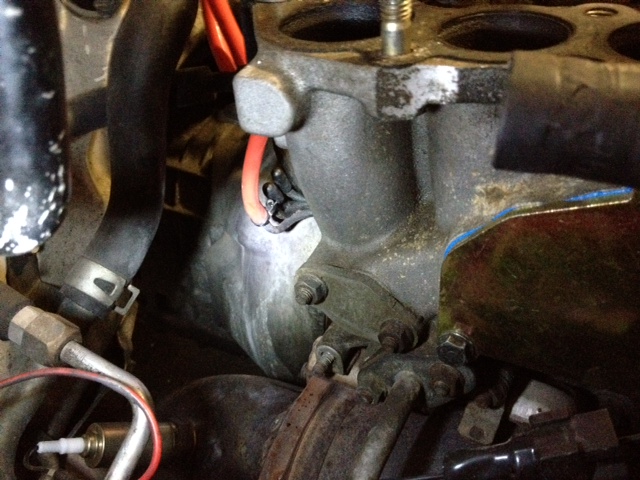

In the first pic, where would the lines for the thermowax go?

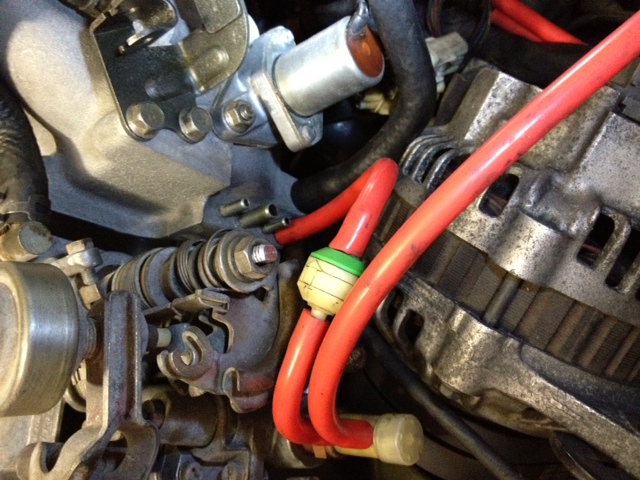

In the second pic, the two red hoses on the right?

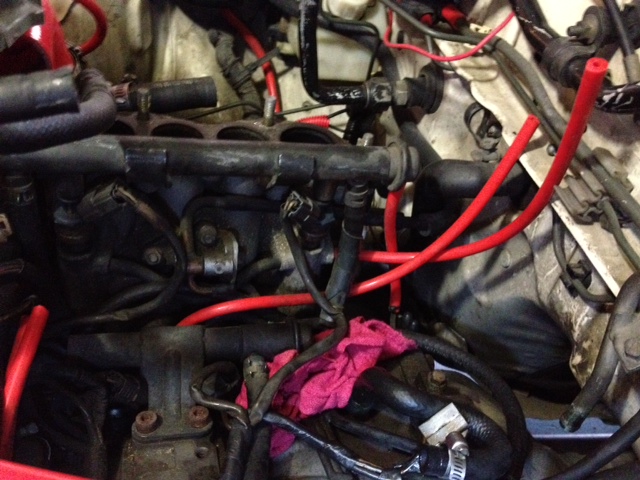

And the last pic, can the group of capped off nipples be used for the bov?
Here's the problem, i removed all the hoses and now i forgot where they go. And also i removed the air pump and blocked off the opening and was wonderin where i can hook up my boost pressure sensor and bov.
In the first pic, where would the lines for the thermowax go?
In the second pic, the two red hoses on the right?
And the last pic, can the group of capped off nipples be used for the bov?
Last edited by swingking; 06-04-12 at 05:54 PM. Reason: pics
#4
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: atlanta
Posts: 225
Likes: 0
Received 0 Likes
on
0 Posts
Thanks for the diagram. That takes care of the middle picture. Does anyone know where the hose in picture 1 go to? And where can i hook the air bypass valve (bov) to? Since i removed and blocked off the air control valve.
#7
Full Member
Thread Starter
iTrader: (1)
Join Date: Aug 2006
Location: atlanta
Posts: 225
Likes: 0
Received 0 Likes
on
0 Posts
Ok, so the hose goes on the other side of the tb inlet. And i guess i'll have to split the bov hose with the boost pressure sensor, cus i cant figure out any other way except to drill a hole in my acv blockoff plate. Thanks everyone for the help and suggestions.
