Need Help Removing 90 TII Dash Panel "PICS"
05-02-05, 09:29 AM
#1
Senior Member
Thread Starter
Join Date: Mar 2003
Location: Ca
Posts: 463
Likes: 0
Received 0 Likes
on
0 Posts
Need Help Removing 90 TII Dash Panel "PICS"

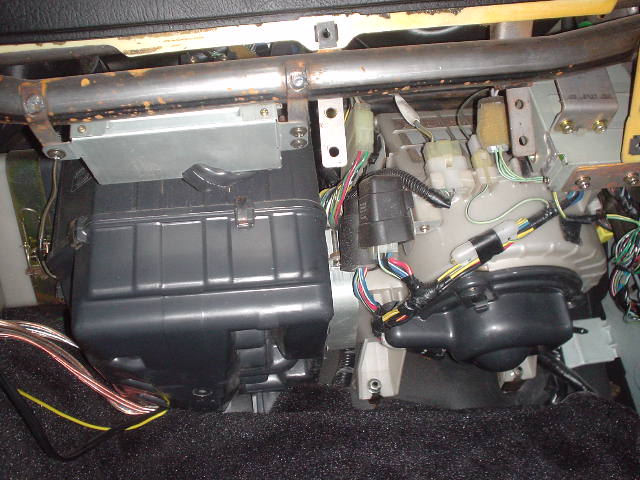

Well... im almost done removing the Dash assy to INvestigate the Leak i had in the passanger side carpet underneach. though im having problem removing so screws/wiring or maybe not..? first one is. how do you remove the damn Instrument Cluster swith in the back, do i have to remove the both screws LT & RT side close to the windshiled (its a hella bitch to get there) and on the passanger side do i need to remvove any harnesses underneath the Glovebox...? anyhelp would be nice.
05-02-05, 10:10 AM
#2
Full Member
Join Date: Oct 2004
Location: Toronto
Posts: 206
Likes: 0
Received 0 Likes
on
0 Posts

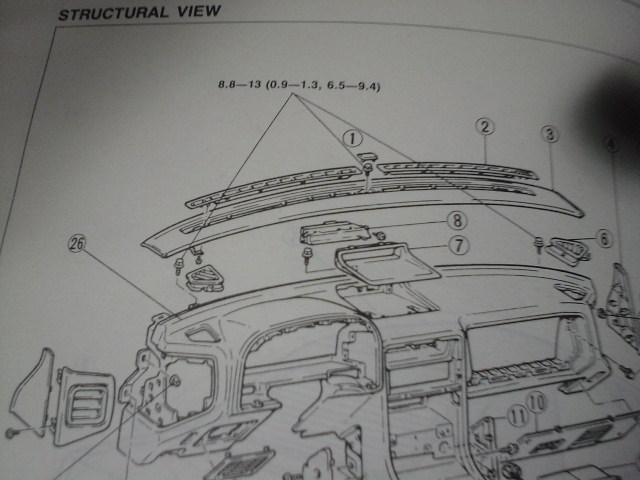

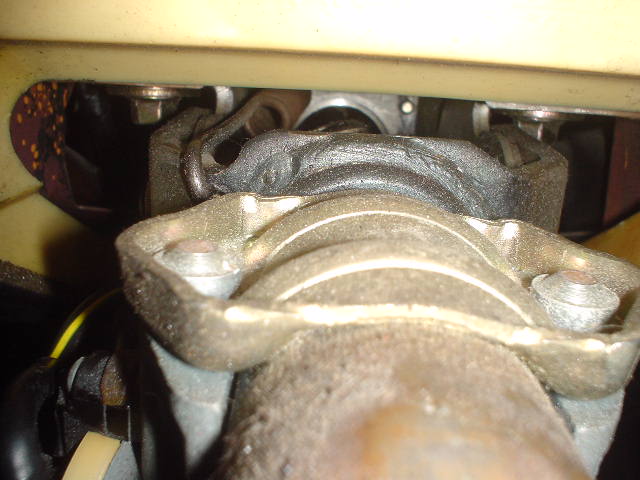

first things first, there are 2 bolts on either side of the dash behind the triangle peices, then there are 2 bolts on either side of the tranny tunnel underneath the smaller triangle peices, then there is a small 8 mm bolt in the center of the dash, in the middle of the defog vents, unbolt the steering column, (4 bolts underneath) disconnect the speedo cable at the back of the cluster, remove the screws and disconnect the two cluster connectors, remove the defog vent pannel,, whole thing that has the vin attached to it, disconnect the connector for the air controls, theres a few connectors underneath the steering column, remove the shift ****, pull the ebrake up and pull the dash out. i think thats it, if you hit any snags, let me know.
05-02-05, 07:26 PM
#5
W. TX chirpin Monkey
Join Date: Sep 2001
Location: Mesquite, TX
Posts: 2,684
Likes: 0
Received 0 Likes
on
0 Posts
Man keep this write up going. I'll be removing the dash this summer to replace the carpet, and i suppose the heater core as well. Oh and the windshield. But hey at least the motor is done.
05-05-05, 06:08 PM
#6
Senior Member
Thread Starter
Join Date: Mar 2003
Location: Ca
Posts: 463
Likes: 0
Received 0 Likes
on
0 Posts
Update

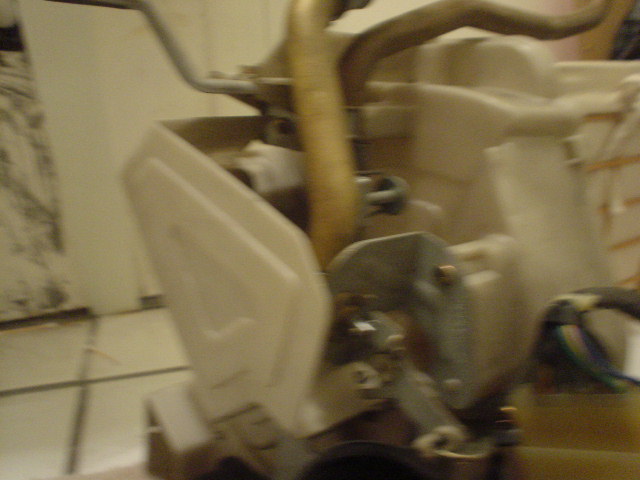

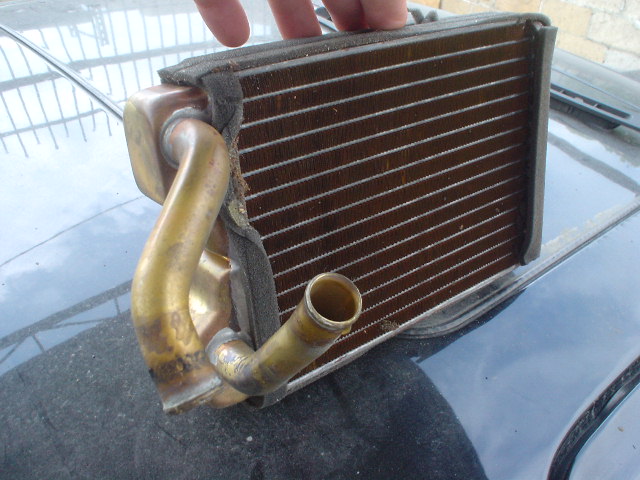

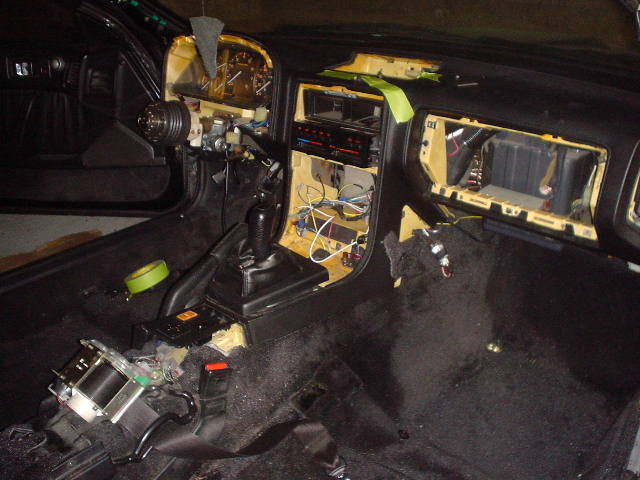

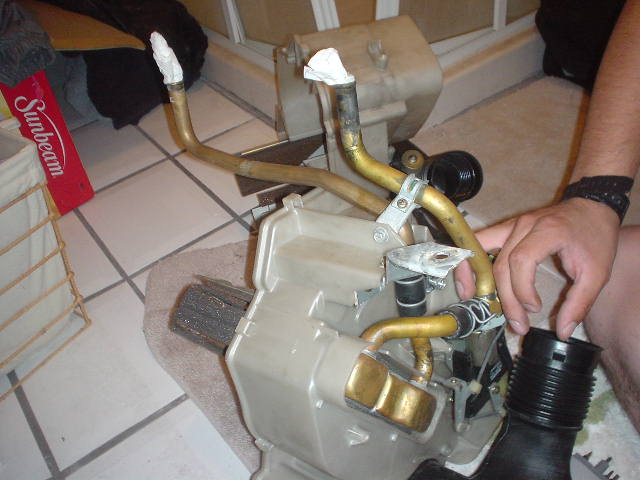

Alright I removed the Dash Assy (Pain in the *** disconnecting many wring harnesses) took pictures so i won't forget where to put back, I did a breakdown on the Heater cor and Son-of-abitch i found no trace of Collant Leak.. I flushed a hose in the heater cor for 5 minutes and no leak, but maybe theres a chance the LEAK might have came out of the 2 Heater core hoses since it had alot of wear n tear for 12 years but i found little trace of mousture from the "Buffer" (that funny carpet **** surrounding the heater core" and dry sports around the hoses. i have doughts that it never leaked..
i don't care i bought an OEM heater Core and some Aftermarket Hoses with good clamps, im not gonna take anymoe chances and just replace the whole damn thing.
i don't care i bought an OEM heater Core and some Aftermarket Hoses with good clamps, im not gonna take anymoe chances and just replace the whole damn thing.
