marclong

iTrader: (1)

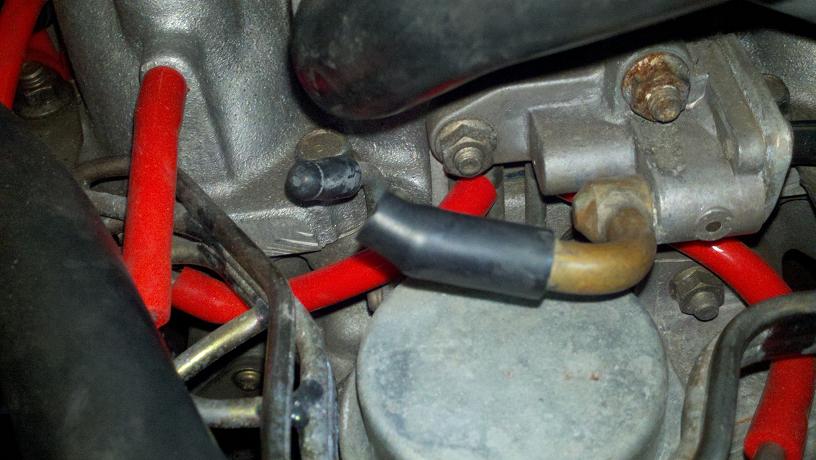

As stated in title the part in question is directly in between bac valve and acv. This is s5 and on passenger side of block. Has a line coming out that is cut. Also right near by that a line going into block is plugged. Do they maybe go together and does anyone know what it is. I have been all thru section F1 of the fsm and many searches and have had no success identifying this. Thanks in advance

Derekcat

iTrader: (8)

Looks like the subzero injector. Just leave it disconnected and capped [or not capped, I think it's closed in the unpowered state.]

FirstRotaryExp

iTrader: (3)

Its as said above, its the subzero start assist port... utterly useless even by mazda's own admittance. Cap it or remove the item and add a block off plate, as well as remove the resevoir bottle that should be beneath the wiper motor near the charcoal canister.

marclong

iTrader: (1)

Oh ok I forgot about about that being ditched years ago. Thanks
