need help fixing turn signal switch

Thread Tools

Search this Thread

Old May 19, 2014 | 12:06 AM
  #1
RotaryBobby's Avatar
Thread Starter
BRAP BRAP BANG
iTrader: (4)

Joined: Jan 2014
Posts: 304
Likes: 0
From: Los Angeles
need help fixing turn signal switch

ok first off i have a 91 NA S5 coupe manual trans of course and i was wondering how i could fix my turn signal switch as it is pushed in to the dash and the handle also is broken and comes off. it all works perfectly though its just these problems i mentioned. also the handle doesn't come off on its own but i can simply pull it off with absolutely no effort it just slides off.

here are some pics i took with my sisters macbook since i don't have a camera sorry if they suck.

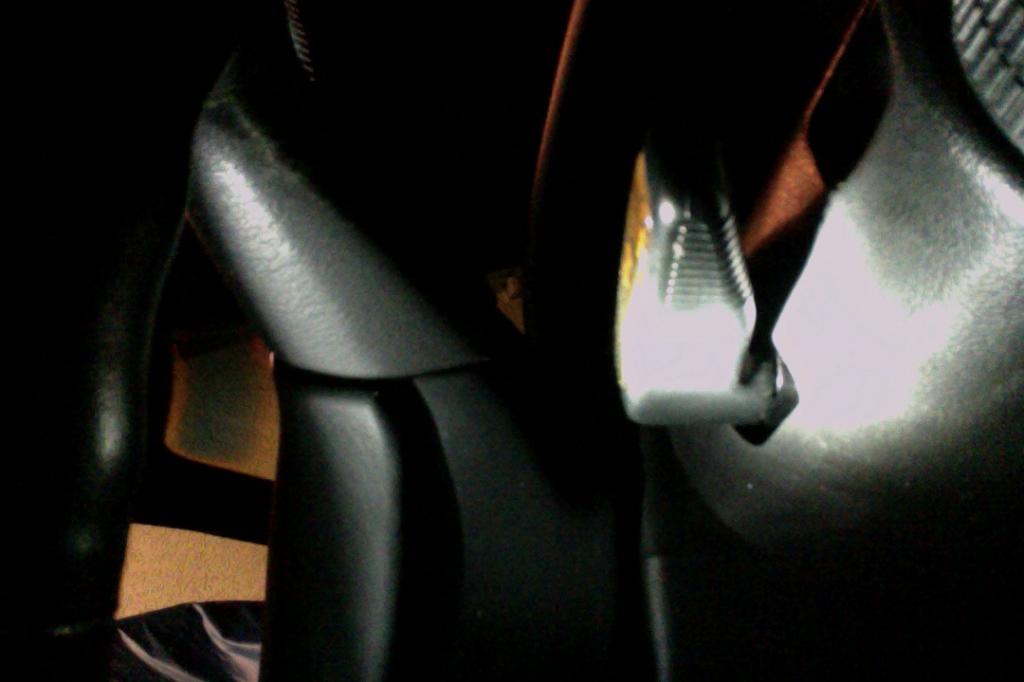

Name:  Photoon5-18-14at946PM.jpg
Views: 58
Size:  45.0 KB

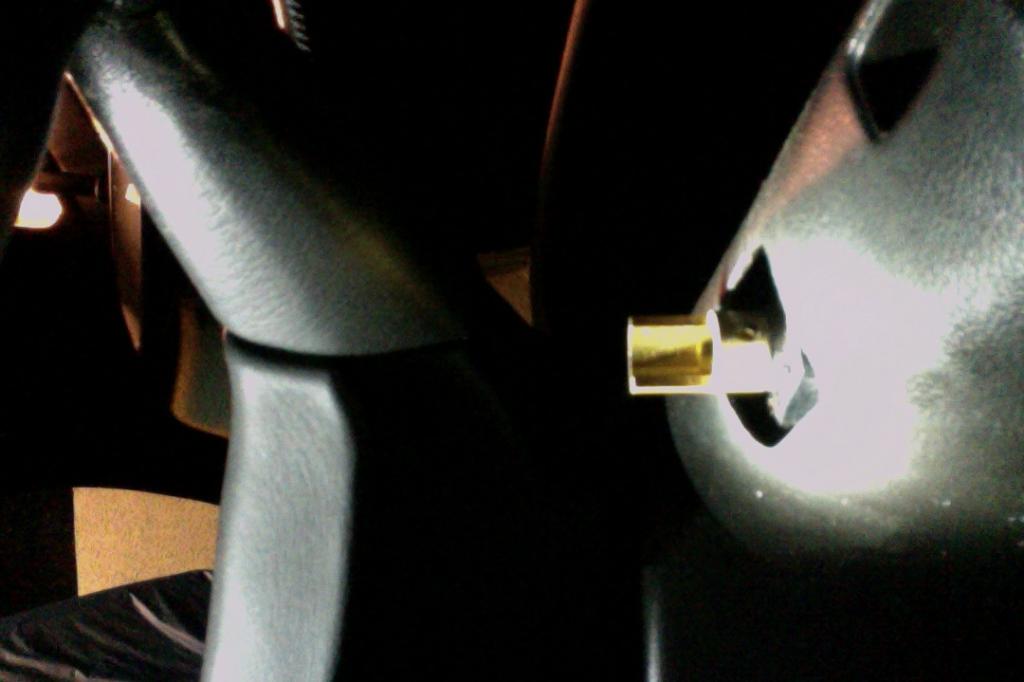

Name:  Photoon5-18-14at947PM2.jpg
Views: 49
Size:  47.7 KB

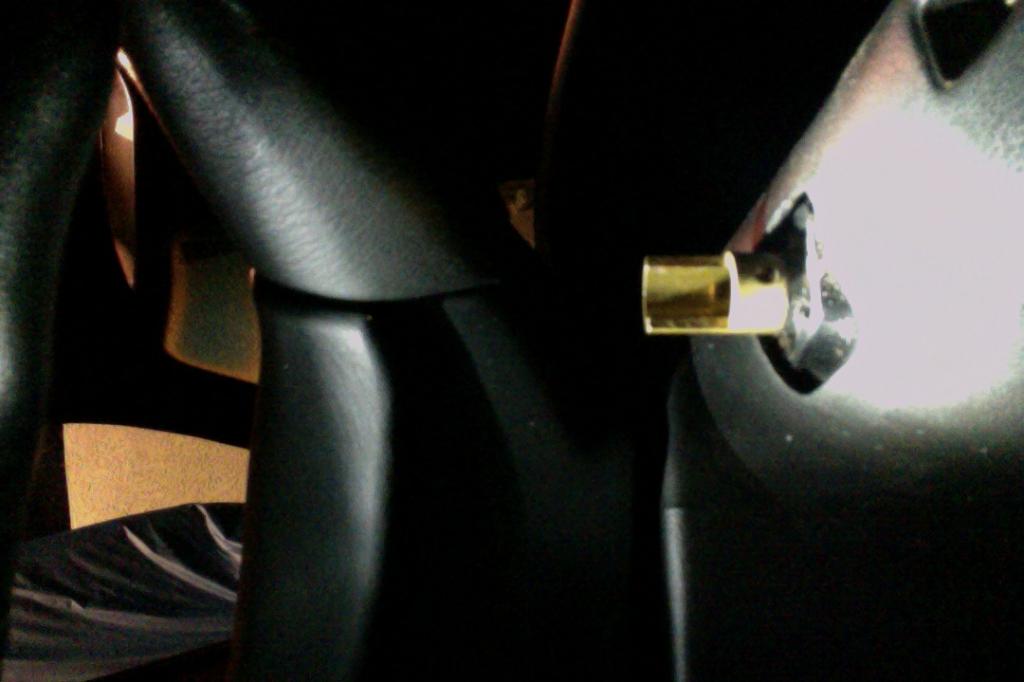

Name:  Photoon5-18-14at948PM.jpg
Views: 48
Size:  48.9 KB

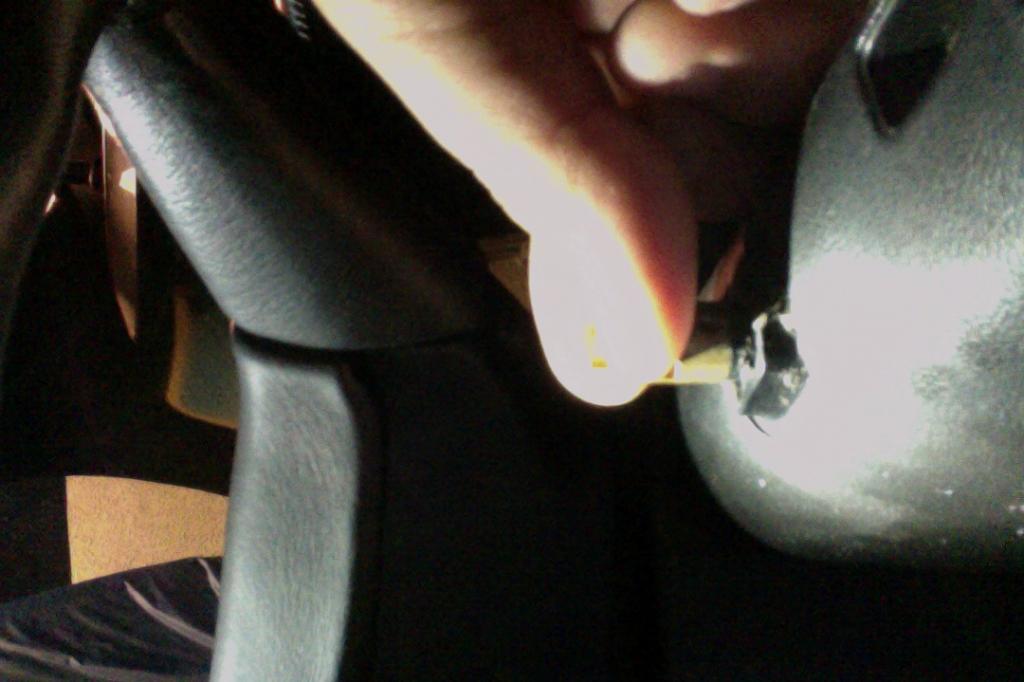

I'm pulling the part in place here
Name:  Photoon5-18-14at947PM3.jpg
Views: 58
Size:  61.8 KB

thanks for any help you guys may have
Reply
Old May 19, 2014 | 12:30 AM
  #2
misterstyx69's Avatar
Retired Moderator, RIP
Tenured Member: 20 Years
iTrader: (142)

Joined: Sep 2005
Posts: 25,581
Likes: 136
From: Smiths Falls.(near Ottawa!.Mapquest IT!)
You have to remove the switch surround(cluster surround) to get at the back of the switch and see if the Screws or mount is broken.
The handle is held on the switch by a little set screw so if that screw is missing or the plastic broke then the handle will fall off the switch.
Reply
Old May 19, 2014 | 01:16 AM
  #3
RotaryBobby's Avatar
Thread Starter
BRAP BRAP BANG
iTrader: (4)

Joined: Jan 2014
Posts: 304
Likes: 0
From: Los Angeles
the handle itself doesn't look to be broken just not secured so maybe the screw is gone. thanks a ton. ill have to check it out tomorrow as its 11pm now LOL
Reply
