Need help figuring out my rear lights.

I need help figuring out which of these are the parking, brakes, and something I'm not sure of on the rear lights.

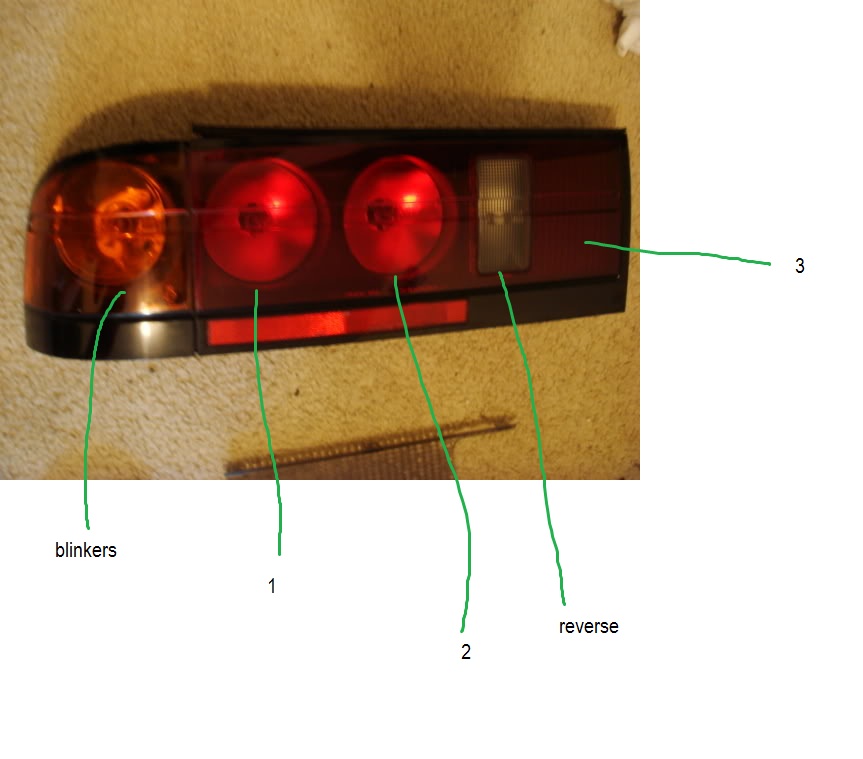

See picture and help me figure out what 1, 2, and 3 are. If possible, what are the wiring colors? Thanks!

Feb 3, 2014 | 09:21 AM

jjwalker

MECP Certified Installer

Joined: Feb 2009

Posts: 3,176

Likes: 3

From: Mesquite, TX-DFW

One and two are parking/brake lights.

The FSM will have the wiring colors and diagram.

Feb 3, 2014 | 11:01 AM

clokker

Cake or Death?

iTrader: (2)

Joined: Jan 2007

Posts: 10,249

Likes: 64

From: Mile High

The park/brake lights do double duty and have two filaments...so they have three wires to each socket.
The turn signal only blinks, only has one filament and thus, two wires.
