Need help with block off plate
05-08-10, 01:46 PM
#1
Jackal
Thread Starter
iTrader: (2)
Join Date: Jun 2007
Location: CT
Posts: 87
Likes: 0
Received 0 Likes
on
0 Posts
Need help with block off plate
So i brought the block off plate kit from banzai for the s5 t2. I just thought about it and the Acv has the hose that goes to the map sensor so how do i use this plate? Is it as simple as i don't?
Technical help comes at a price sometimes.
Trending Topics
05-08-10, 10:07 PM
#9
Banned. I got OWNED!!!
iTrader: (7)
Join Date: Dec 2008
Location: Oregon
Posts: 1,326
Likes: 0
Received 0 Likes
on
0 Posts
mesure the vaccum nipple from one of the bolt holes and drill a hole in it buy a vaccum nipple from the parts store and your set. I just Teed into the BOV line. I actually have it X'd and it runs Boost gauge, MAP, and BOV. seems to work fine. MY idle is really low though. I also have an FCD so its kind of retarded anyways.
05-09-10, 06:02 AM
#12
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
Well done with the pictures!
What you do for the CAR, is buy a plastic tee from the auto store.

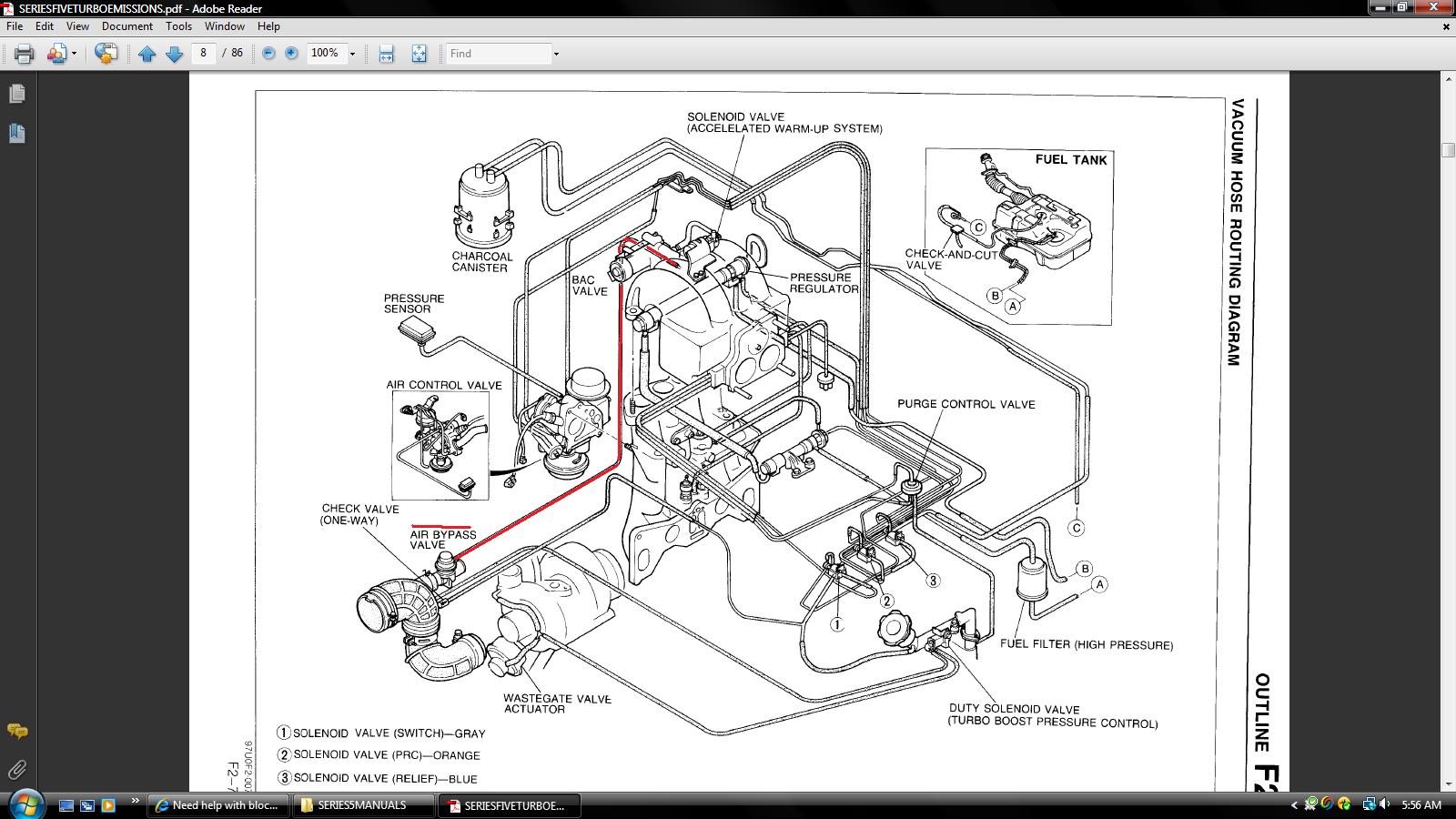

Then you find the vacuum line going to the stock AIR BYPASS VALVE and install the tee into that vacuum line and plug the line from the pressure sensor into that new tee. Done See the jpg.
The pictures were very welcome and she sure looks healthy and wish her the best. Thank you.
What you do for the CAR, is buy a plastic tee from the auto store.
Then you find the vacuum line going to the stock AIR BYPASS VALVE and install the tee into that vacuum line and plug the line from the pressure sensor into that new tee. Done See the jpg.
The pictures were very welcome and she sure looks healthy and wish her the best. Thank you.
05-10-10, 12:48 AM
#13
Retired Moderator, RIP
iTrader: (142)
Join Date: Sep 2005
Location: Smiths Falls.(near Ottawa!.Mapquest IT!)
Posts: 25,581
Likes: 0
Received 131 Likes
on
114 Posts
Definitely use a Block off plate...
you said Vacuum NIPPLE!...
..ah just kiddin man,Just look at the Throttle body.It has some Vacuum Nipples that are not used,You can hook up there,or Swing around to the inside of the manifold,
you can always T as Hailers Said to a vacuum source already being used.It is just a matter of buying a T,and using a small piece of tubing.
Good Luck..and Say HI to What's her name again For me.,
tell her I was the guy that Said HI at that place ...where she was,,,about a Week ago...(ya,right..)Cheers STYX!
you said Vacuum NIPPLE!...
..ah just kiddin man,Just look at the Throttle body.It has some Vacuum Nipples that are not used,You can hook up there,or Swing around to the inside of the manifold,
you can always T as Hailers Said to a vacuum source already being used.It is just a matter of buying a T,and using a small piece of tubing.
Good Luck..and Say HI to What's her name again For me.,
tell her I was the guy that Said HI at that place ...where she was,,,about a Week ago...(ya,right..)Cheers STYX!
