Name that part, #53,107
03-26-09, 05:23 AM
#1
Name that part, #53,107
OK so what is the sensor that is attached to the mount on the trailing coil pack? If you pull the trailing coils, its the bracket that is on the drivers shock tower. I know we have a few of them for grounding(?) but i cant think of the name just now.
Pict in a few, if no one can figure it out otherwise.
thanks
Pict in a few, if no one can figure it out otherwise.
thanks
Last edited by AUGieDogie; 03-26-09 at 05:24 AM. Reason: i is dumb
03-26-09, 08:36 AM
#2
HAILERS
Join Date: May 2001
Location: FORT WORTH, TEXAS,USA
Posts: 20,563
Likes: 0
Received 21 Likes
on
19 Posts
It's the condenser for the trail and lead coils. It looks exactly like the condenser for the oil pressure sensor. It is not a ground so don't ground the WIRE itself. Leave in place.

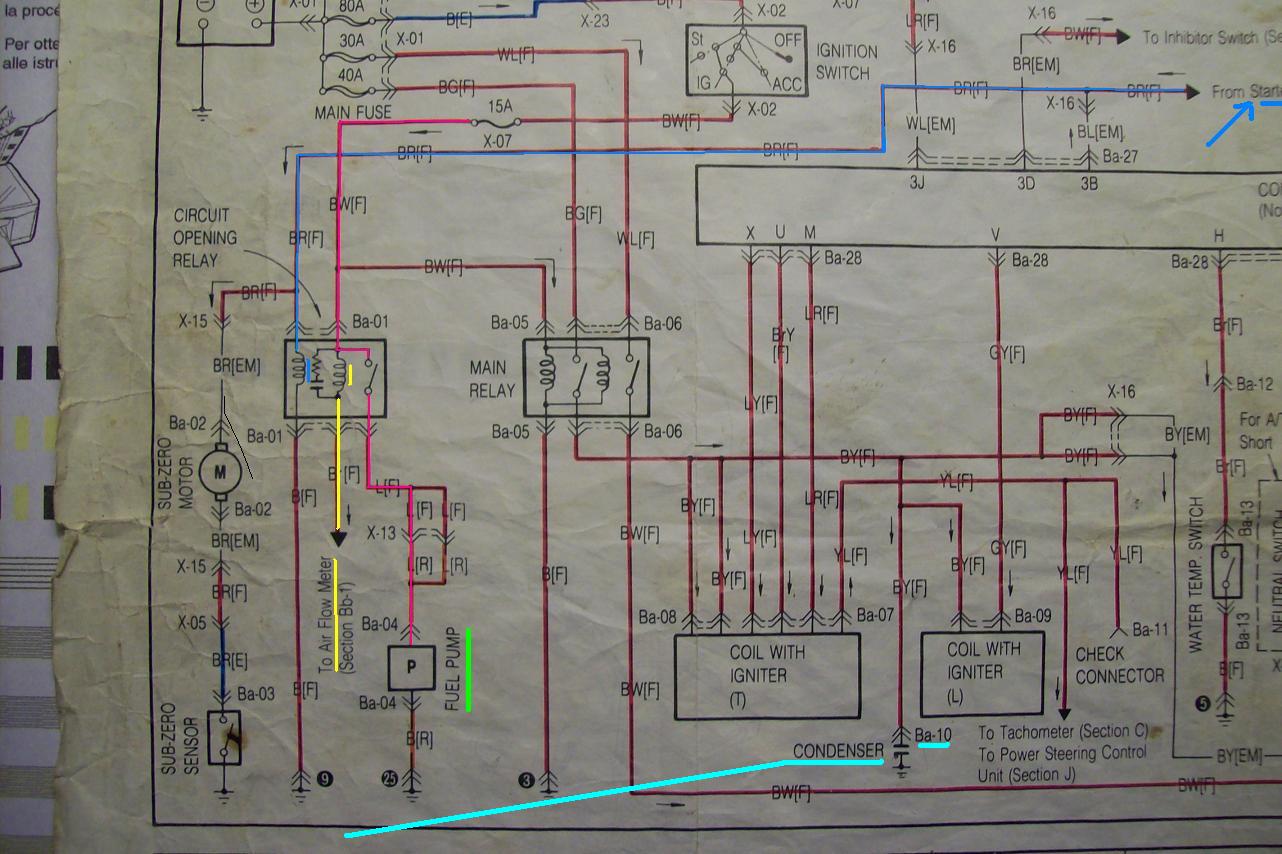

It's shown at the bottom of the attached jpg.
Or? is it another thing your talking about?????? The condenser is approx 1/2" square and a 1/4" thick.....if memory serves. Black in color. Single wire going to a connector. IN this case the connector will connnect to a black/yellow wire in the Front harness.
It's shown at the bottom of the attached jpg.
Or? is it another thing your talking about?????? The condenser is approx 1/2" square and a 1/4" thick.....if memory serves. Black in color. Single wire going to a connector. IN this case the connector will connnect to a black/yellow wire in the Front harness.
