My housings Pics

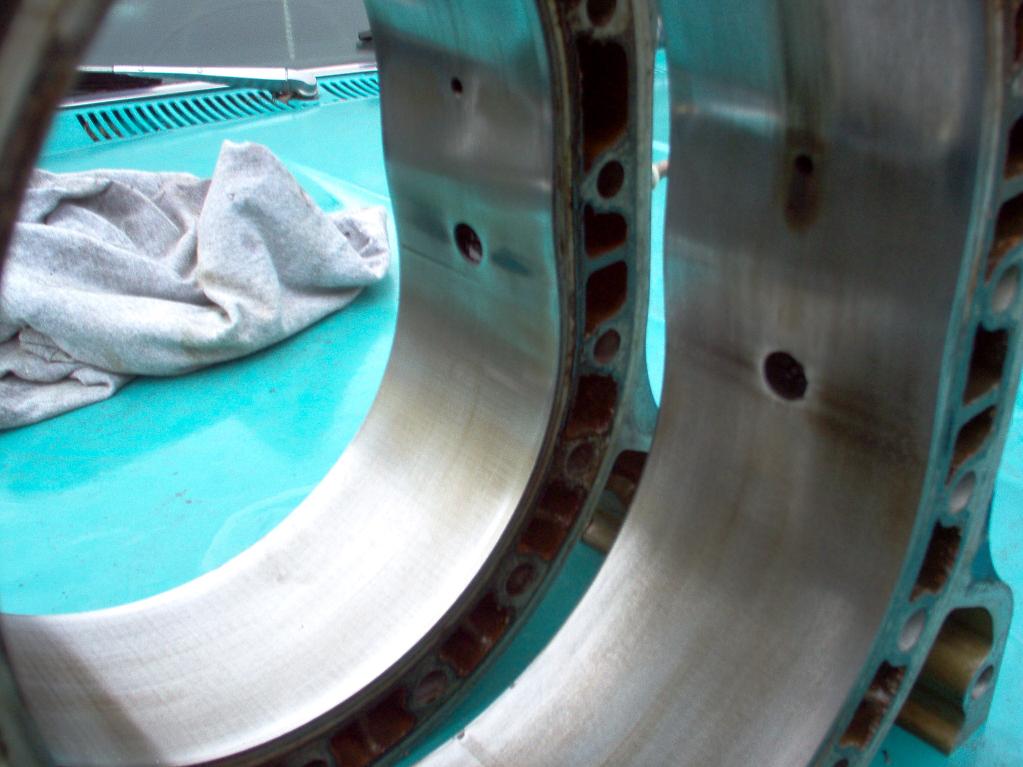

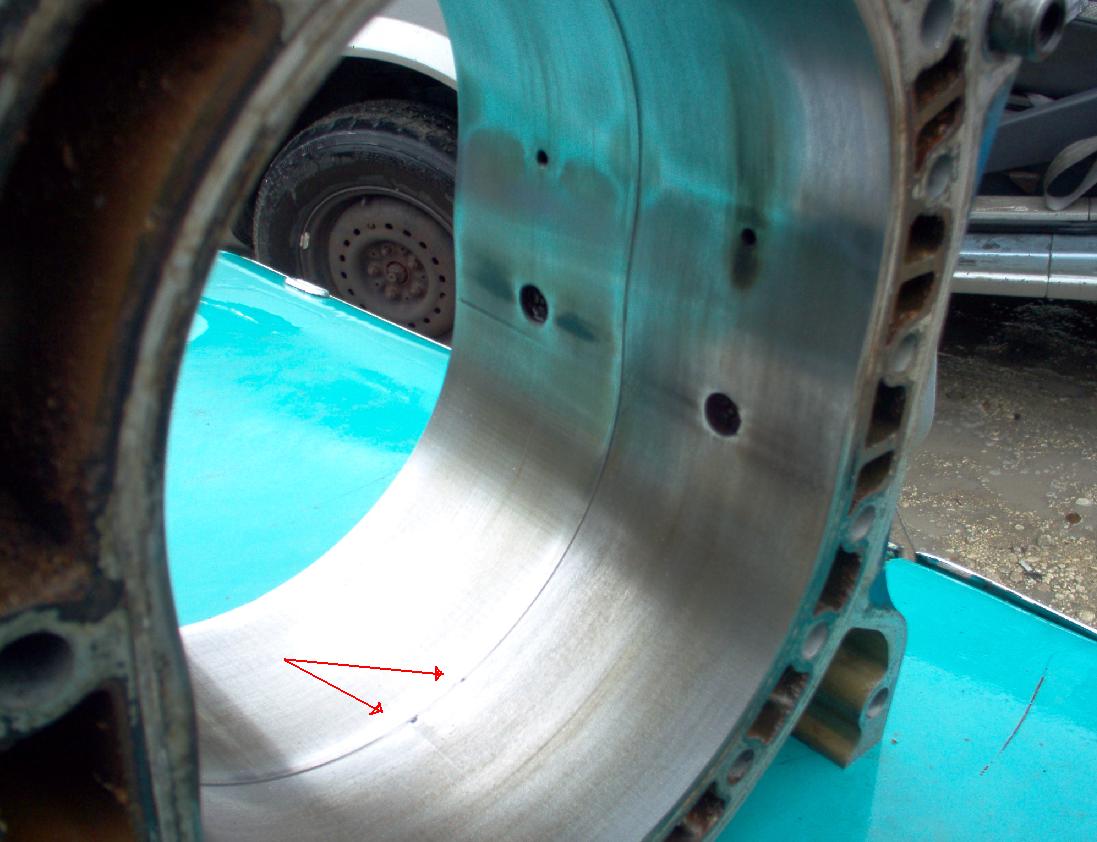

Opened the used motor I bought so I can refresh it. The motor had 95 PSI on both rotors. Looks like it may have pinged and chipped of a piece of the housing. The engine had GSL-SE rotors, and a nice street port. I paid $500 for it, and it had with a to4B installed.
Do you guys think the housings are reusable?
(Edit for signature violation)
Do you guys think the housings are reusable?
(Edit for signature violation)
Last edited by Aaron Cake; 03-10-05 at 11:17 AM.
03-09-05, 04:32 PM
#2
I believe that chrome chip is probably ok. Any scaring?
Kevin Landers is probably the guy you want to ask here on forum. He's our local builder so he'll probably talk to you soon enough.
PS- You gonna make any more lexan roofs? I'm in need of one for my GTU.
Kevin Landers is probably the guy you want to ask here on forum. He's our local builder so he'll probably talk to you soon enough.
PS- You gonna make any more lexan roofs? I'm in need of one for my GTU.
03-09-05, 07:00 PM
#4
Rotary Powered Boobies
Thread Starter
iTrader: (1)
Join Date: Oct 2001
Location: Miami Beach
Posts: 2,530
Likes: 0
Received 0 Likes
on
0 Posts
No scaring Santiago, and no more sunroofs either.... Sorry
My fiends also thought they where in pretty good condition. I was just a little worried bout those little chips.
BTW: I just read your sig Felix.. What happened? I saw the slideshow, and I thought everything was oK.

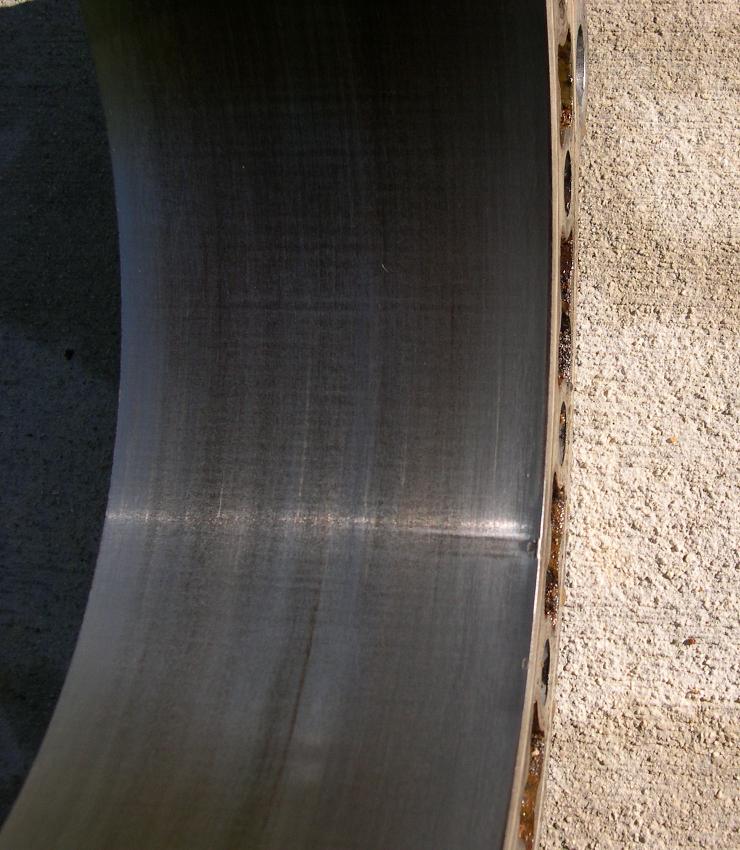

I'm rebuiling mine alone aswell
RA Video on one laptop, Atikins video on the other. (I converted the vids to Mpegs)
My fiends also thought they where in pretty good condition. I was just a little worried bout those little chips.
BTW: I just read your sig Felix.. What happened? I saw the slideshow, and I thought everything was oK.
I'm rebuiling mine alone aswell
RA Video on one laptop, Atikins video on the other. (I converted the vids to Mpegs)
Last edited by luiml73; 03-09-05 at 07:05 PM.
03-09-05, 08:11 PM
#6

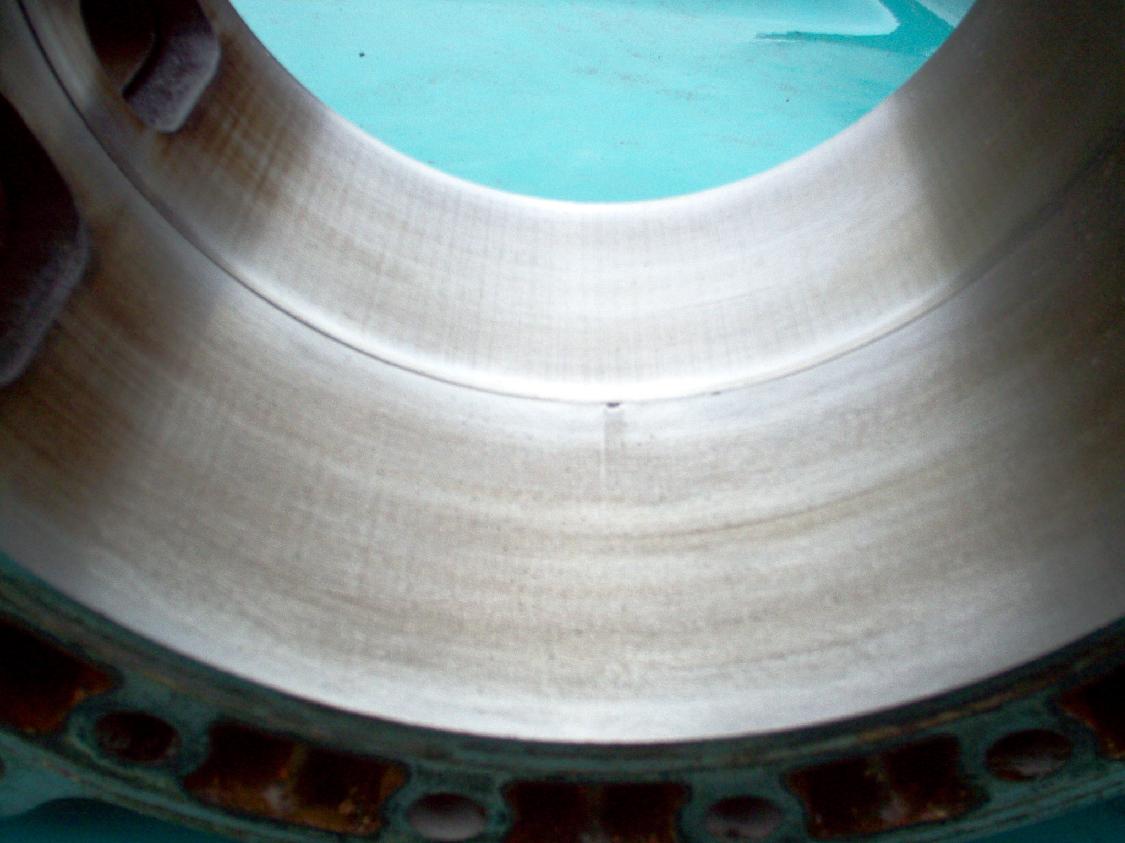

the closest rotor housing doesn't look to be in good shape, that line where the chip is indicates that the apex seal had been jumping over that spot, it will result in a loss of compression and power, the chip may be repairable so that the seal won't jump over that area but the pics do not give much to the imagination of what kind of problem those nicks represent.
it doesn't look all that bad but i would be concerned about it.

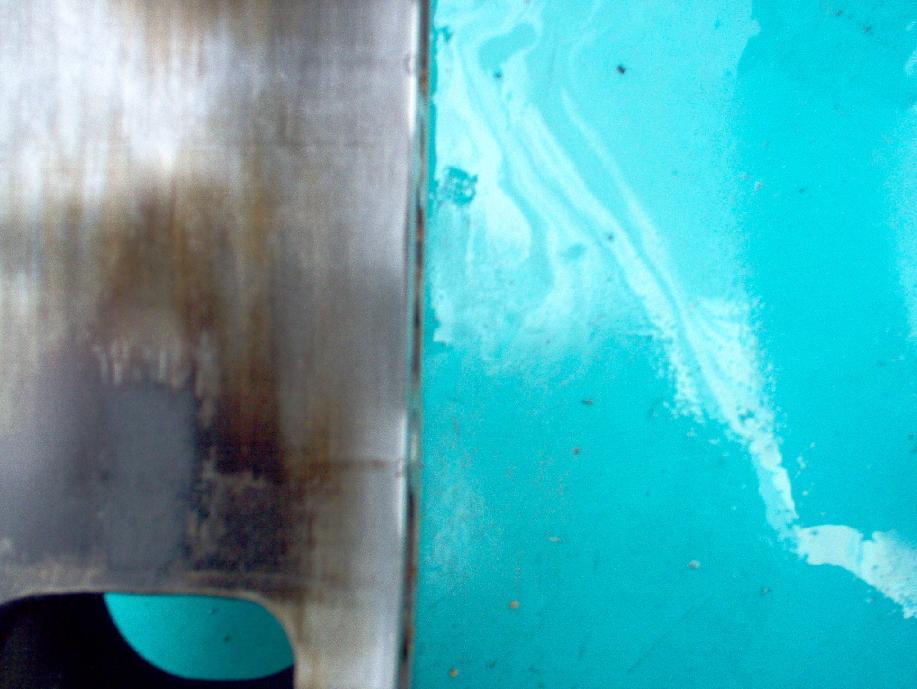

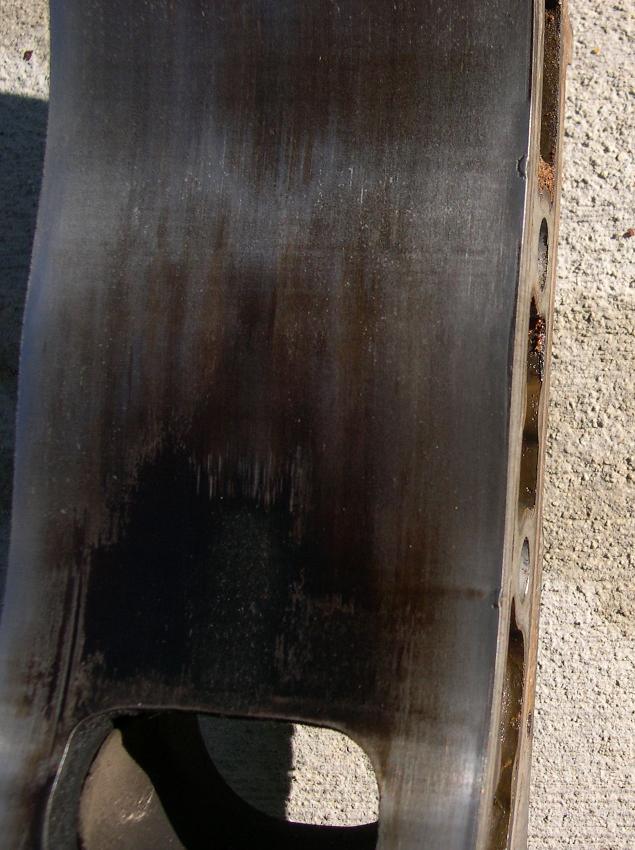

the dark shaded area below the nick is carbon from blowby of the apex seal, what were the compression number before teardown?
it doesn't look all that bad but i would be concerned about it.
the dark shaded area below the nick is carbon from blowby of the apex seal, what were the compression number before teardown?
Last edited by RotaryEvolution; 03-09-05 at 08:17 PM.
Trending Topics
03-10-05, 01:16 AM
#8
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts

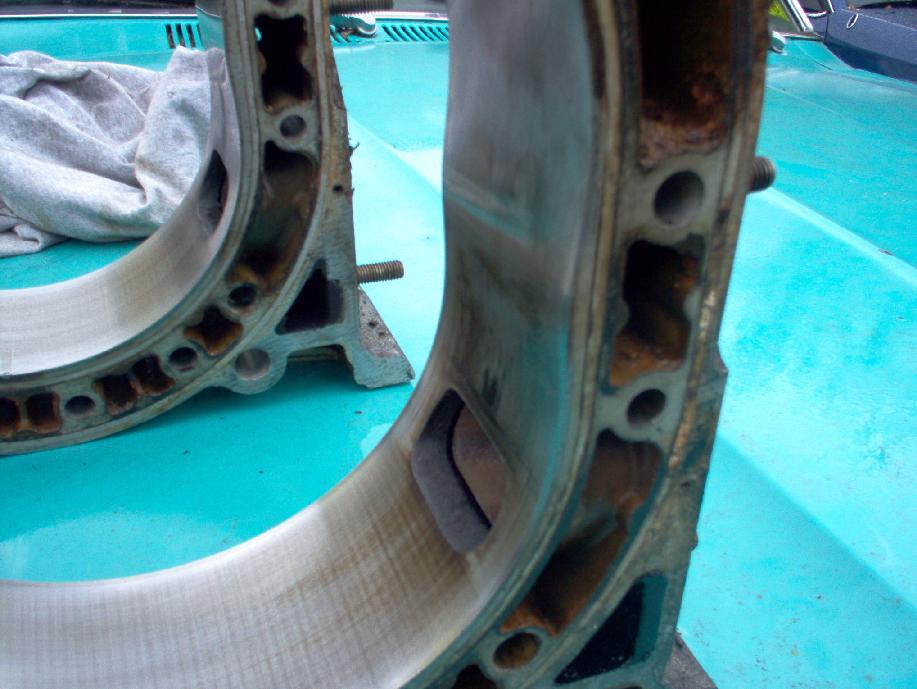

PLEASE BEVEL THE CLOSING EDGE of the exhaust ports! The housings are quite useable IMO other than that.
*edit* the chipping is nothing. I guarantee you, if most of the members in here who are concerned with your chips saw the housings in my current engine, they would freak out! We're talking mega chrome flaking off the edges, ~2mm wide and about 10" long in places. The motor runs better than ever. A friend of mine took a vid of the car autocrossing where I wind up first and second gear on a straight, and it definately gets up for an NA FC.
*edit* the chipping is nothing. I guarantee you, if most of the members in here who are concerned with your chips saw the housings in my current engine, they would freak out! We're talking mega chrome flaking off the edges, ~2mm wide and about 10" long in places. The motor runs better than ever. A friend of mine took a vid of the car autocrossing where I wind up first and second gear on a straight, and it definately gets up for an NA FC.
Last edited by 88IntegraLS; 03-10-05 at 01:20 AM.
03-10-05, 08:22 AM
#13
Full Member
Join Date: Jul 2004
Location: Calgary Alberta, Canada
Posts: 127
Likes: 0
Received 0 Likes
on
0 Posts
Those housings look fine to me. If a bit of chrome is missing there it wont hurt it. What you need to look for is in the area where that chip is, all around the housing, is there alot of wear? Usually bad housings will have like an eighth of an inch worn in all around.
My housings have a small chip here and there like that and i was told they were perfect by Adam at rx7 specialties. He knows his stuff 4 sure.
My housings have a small chip here and there like that and i was told they were perfect by Adam at rx7 specialties. He knows his stuff 4 sure.
03-11-05, 01:26 AM
#15
looks like it was dropped, are those chips raised into the rotor housing, like if you run a straightedge across it does it catch or lift up in those spots?
and yes, definitely if you use them, BEVEL THE CLOSING EDGES!
seen way too many pics of chunked up apex seals and trashed housings from not beveling the trailing edges on ports.
and yes, definitely if you use them, BEVEL THE CLOSING EDGES!
seen way too many pics of chunked up apex seals and trashed housings from not beveling the trailing edges on ports.
03-11-05, 10:26 AM
#17
Displacement > Boost
Join Date: Oct 2002
Location: Mississippi
Posts: 3,503
Likes: 0
Received 0 Likes
on
0 Posts
Closing edge is the top edge of the exhaust ports. All stock exhaust ports have 2mm bevel all around to protect the apex seals when they close the ports.
04-10-05, 08:07 PM
#18
Rotary Powered Boobies
Thread Starter
iTrader: (1)
Join Date: Oct 2001
Location: Miami Beach
Posts: 2,530
Likes: 0
Received 0 Likes
on
0 Posts
Update: I just bought a set a brand new FD Housiings for $800
Just put mine on Ebay
http://cgi.ebay.com/ebaymotors/ws/eB...tem=7967625262
Just put mine on Ebay
http://cgi.ebay.com/ebaymotors/ws/eB...tem=7967625262
