Is this my fuel pump relay?

I know this has been covered already, but i want to make sure i am cutting the correct wire from the correct relay

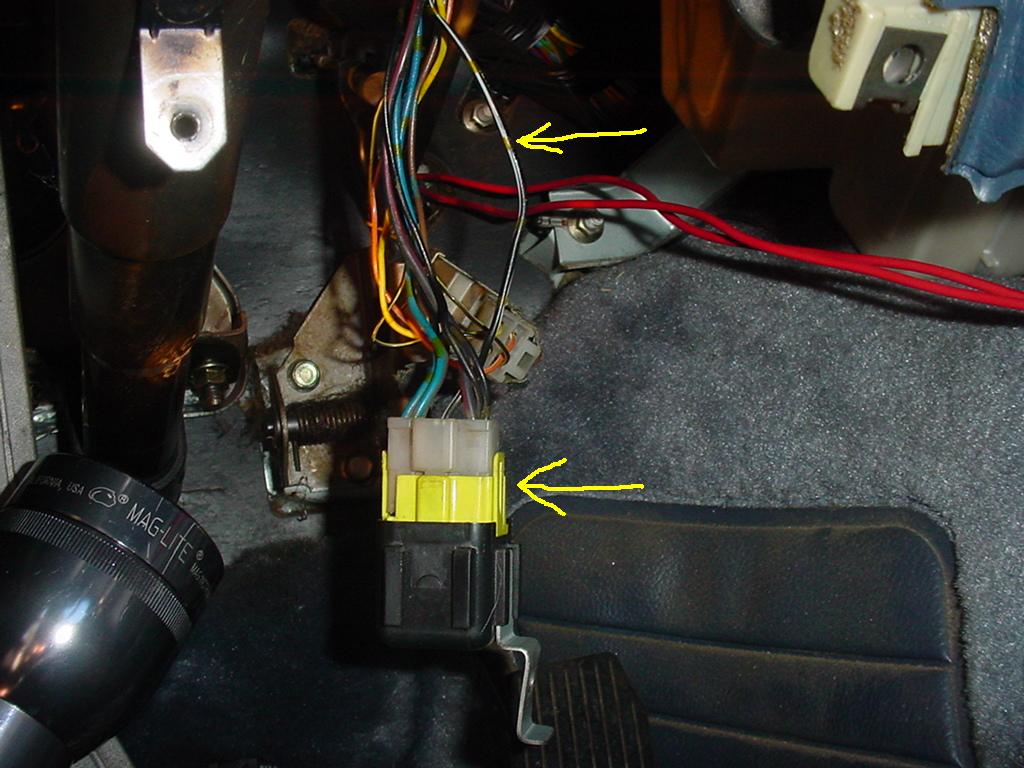

Attached Thumbnails Is this my fuel pump relay?-fuel-pump-relay.jpg
Reply
Old Dec 21, 2005 | 02:38 PM
  #2
SureShot's Avatar
Seduced by the DARK SIDE
Tenured Member 15 Years

Joined: Apr 2001
Posts: 7,323
Likes: 2
From: Orange Park FL (near Jax)
Yes - But it's called the "circuit opening relay" in the manuals.

You can download & print what you need from the on-line manuals at the link in my sig.
Reply
Old Dec 21, 2005 | 02:40 PM
  #3
311unity13B's Avatar
Thread Starter
That's JDM tight, yo
Tenured Member 15 Years

Joined: Nov 2003
Posts: 1,599
Likes: 0
From: Atlanta
thanks, i have a Mazda repair manual i got for $20, no need to look online
Reply
Old Dec 21, 2005 | 02:58 PM
  #4
The Wankler's Avatar
FKITALL
iTrader: (14)

Joined: May 2004
Posts: 3,588
Likes: 2
From: Dublin Ca.
Big difference between the Repair Manual and the FSM.
Reply
Old Dec 21, 2005 | 04:14 PM
  #5
311unity13B's Avatar
Thread Starter
That's JDM tight, yo
Tenured Member 15 Years

Joined: Nov 2003
Posts: 1,599
Likes: 0
From: Atlanta
Originally Posted by The Wankler
Big difference between the Repair Manual and the FSM.

its the FSM i worded it wrong i guess

and I just installed the fuel pump cut off switch, works great
