is my fc an auto to manual swap?
#1
Grabba Dabba Goo!
Thread Starter
is my fc an auto to manual swap?
I've recently noticed that my clutch and brake pedal bracket looks brand new....
So my question: is there anyway to tell an original auto s5 vert ??............I've tried vin but I don't think it tells trans
I'd like to know because I'm doing a tranny swap assuming I need an s5 manual trans and do t want to find out I have a s4 drive shaft or whatever they rigged up during questioned swap.
Thanks in advance
So my question: is there anyway to tell an original auto s5 vert ??............I've tried vin but I don't think it tells trans
I'd like to know because I'm doing a tranny swap assuming I need an s5 manual trans and do t want to find out I have a s4 drive shaft or whatever they rigged up during questioned swap.
Thanks in advance
#3
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
look at the transmission mounts, the automatic is longer, so the mounts are further back, which means a swap takes fabrication.
#4
Grabba Dabba Goo!
Thread Starter
Will Take picture for you guys when It quits storming .......
I know my tranny mounts are shot 1st and 2nd gear are boucy as hell
I also noticed im missing a nut on the main tranny mount towards the back its just a bolt sticking down threw though mount I'm sure that has somthing to do with bouncy-ness...hopefully not a dodgy made mount......
Will take pics either tonight or in morning
I know my tranny mounts are shot 1st and 2nd gear are boucy as hell
I also noticed im missing a nut on the main tranny mount towards the back its just a bolt sticking down threw though mount I'm sure that has somthing to do with bouncy-ness...hopefully not a dodgy made mount......
Will take pics either tonight or in morning
#6
Lives on the Forum
iTrader: (8)
Depends on how thorough of a swap they did. For instance, if I really wanted to, I could weld on the manual trans chassis mounts, recover with undercoating spray and you'd never know it wasn't stock. Most of the time there would be leftover wiring plugs at the shifter area for what used to be the automatic shifter, and there would be the ignition release cable from the shifter to the ignition switch. Most of the time they'd still leave the stock cluster, and the s5 will have the PRND2L and HOLD lights in the 7k tach.
#7
Grabba Dabba Goo!
Thread Starter
Sorry for the wait ive been insane busy busy and it's been raining.......

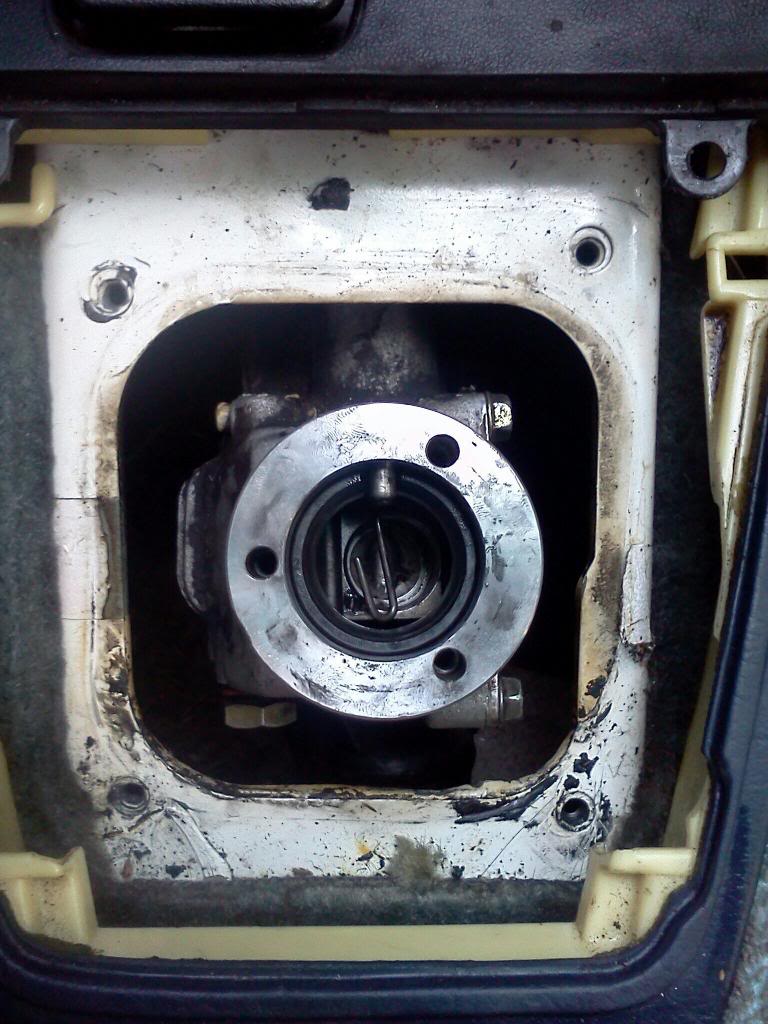

Anyway sorry for the shitty kindle pictures hopefully you guys can still tell ..
[URL=http://s1276.photobucket.com/user/invinciblejets/media/KINDLE_CAMERA_1375269442000_zps82c2b926.jpg.html][/URL[URL=http://s1276.photobucket.com/user/invinciblejets/media/IMG_20130624_181128_zps8cebf629.jpg.html][/URL
Anyway sorry for the shitty kindle pictures hopefully you guys can still tell ..
[URL=http://s1276.photobucket.com/user/invinciblejets/media/KINDLE_CAMERA_1375269442000_zps82c2b926.jpg.html][/URL[URL=http://s1276.photobucket.com/user/invinciblejets/media/IMG_20130624_181128_zps8cebf629.jpg.html][/URL
Trending Topics
#9
Grabba Dabba Goo!
Thread Starter
Nice that what I was hoping hear..
Does drive shaft from what you can see looks stock? PO Said somthing about only things on car not stock are corksport shifter an somthing about drive shaft do I need more pics tell?
Does drive shaft from what you can see looks stock? PO Said somthing about only things on car not stock are corksport shifter an somthing about drive shaft do I need more pics tell?
#10
Moderator
iTrader: (3)
Join Date: Mar 2001
Location: https://www2.mazda.com/en/100th/
Posts: 30,829
Received 2,597 Likes
on
1,845 Posts
me too. needs a trans mount though, and its a bit gooey in there in general...
#11
Grabba Dabba Goo!
Thread Starter
#12
Lives on the Forum
iTrader: (8)
Can't tell anything about the DS from the pics.
Most DS's have a metal dust shield at the front yoke that covers the transmission end for a few inches. Not all stock DS's had that, but most did. Looks like yours is missing that. It doesn't do anything regardless, but it COULD be an indicator of a stock replacement shaft.
Unless it has replaceable ujoints it is nothing special. The stock ujoints are recessed in their holes and staked in 3 or 4 places...replaceable joints would probably sit flush with the edge of the hole, may have writing engraved in them, and may even have a grease fitting in the center of the cross.
Most DS's have a metal dust shield at the front yoke that covers the transmission end for a few inches. Not all stock DS's had that, but most did. Looks like yours is missing that. It doesn't do anything regardless, but it COULD be an indicator of a stock replacement shaft.
Unless it has replaceable ujoints it is nothing special. The stock ujoints are recessed in their holes and staked in 3 or 4 places...replaceable joints would probably sit flush with the edge of the hole, may have writing engraved in them, and may even have a grease fitting in the center of the cross.
#13
Grabba Dabba Goo!
Thread Starter
Well assuming my new trans is the same then drive shaft shouldn't be an issue will check on u joints during swap just out of curiosity.....
Dude who's selling me trans said once he unpacks his stuff he is going to throw in a s5 na DS for free
thanks for everyone help
Dude who's selling me trans said once he unpacks his stuff he is going to throw in a s5 na DS for free
thanks for everyone help
