muffler fitment Q
I dont have access to my 7 right now and need to know widest width muffler that will fit in the stock location. I currently have 3" piping with gutted stock mufflers, I want to cut them off and get the 2 of these mufflers but i dont know if they are too wide. anyone know?
#4
Barrel Roll
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: HI
Posts: 279
Likes: 0
Received 0 Likes
on
0 Posts
http://www.summitracing.com/parts/MPE-14716/

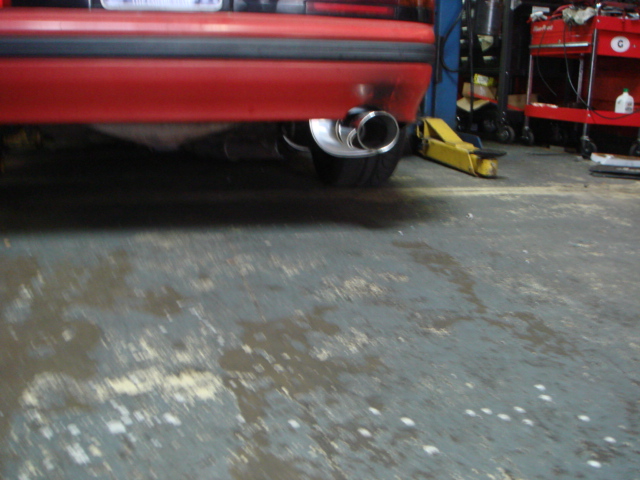

Fit well, and are very quiet with my setup, wouldn't know about a rotary.
Fit well, and are very quiet with my setup, wouldn't know about a rotary.
non rotary 7's ftw...
#5
Senior Member
iTrader: (5)
big mufflers

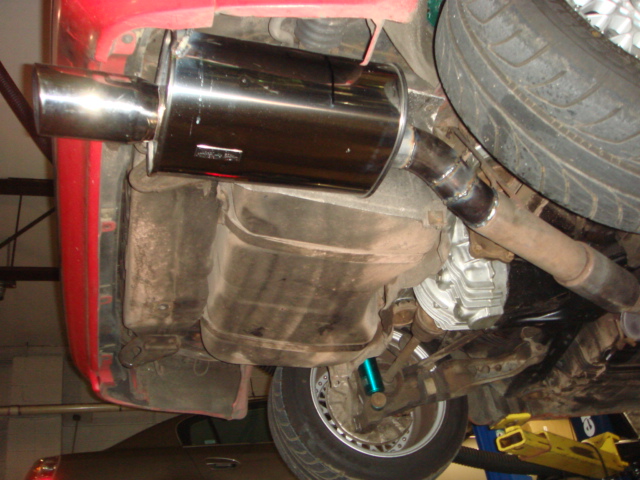

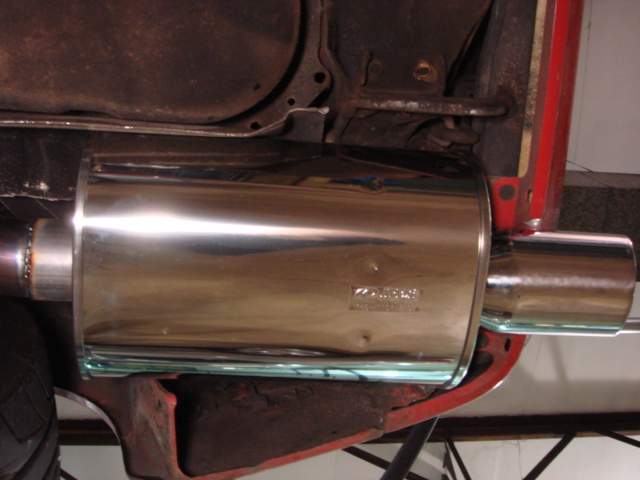

my advise is if you want a bigger muffler, or the look of it buy an oval style muffler. on my car i used an apexi WS II muffler and it was huge. it taps the heat shield sometimes, and the length the tip protrudes needs to be adjusted. remember to measure before you buy. the overall length is from inlet tip to outlet tip, and you can only trim a little off the inlet. overall i like the muffler because it's quiet and it looks nice, but was a pain to fit. the opening for the mufflers on the car is very oval, there's lots of space top to bottom but not side to side or front to back. which means you need something pretty short in overall length, narrow and tall.
#6
Barrel Roll
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: HI
Posts: 279
Likes: 0
Received 0 Likes
on
0 Posts
my advise is if you want a bigger muffler, or the look of it buy an oval style muffler. on my car i used an apexi WS II muffler and it was huge. it taps the heat shield sometimes, and the length the tip protrudes needs to be adjusted. remember to measure before you buy. the overall length is from inlet tip to outlet tip, and you can only trim a little off the inlet. overall i like the muffler because it's quiet and it looks nice, but was a pain to fit. the opening for the mufflers on the car is very oval, there's lots of space top to bottom but not side to side or front to back. which means you need something pretty short in overall length, narrow and tall.
Trending Topics
#9
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 109 Likes
on
92 Posts
Those mufflers might fit, but it will be tight.

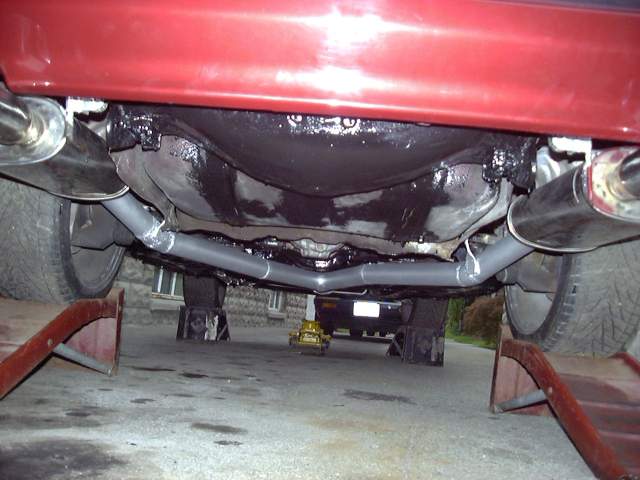

I use oval mufflers, though I doubt they are 18" wide:
I did have to bend the heat shields a little.
Everything fits, as long as you are willing to accommodate it.
I use oval mufflers, though I doubt they are 18" wide:
I did have to bend the heat shields a little.
Everything fits, as long as you are willing to accommodate it.
#11
Barrel Roll
Thread Starter
iTrader: (1)
Join Date: Oct 2009
Location: HI
Posts: 279
Likes: 0
Received 0 Likes
on
0 Posts
my advise is if you want a bigger muffler, or the look of it buy an oval style muffler. on my car i used an apexi WS II muffler and it was huge. it taps the heat shield sometimes, and the length the tip protrudes needs to be adjusted. remember to measure before you buy. the overall length is from inlet tip to outlet tip, and you can only trim a little off the inlet. overall i like the muffler because it's quiet and it looks nice, but was a pain to fit. the opening for the mufflers on the car is very oval, there's lots of space top to bottom but not side to side or front to back. which means you need something pretty short in overall length, narrow and tall.
Apexi WS II- 15" length x 9.6" width x 6.1" height
Megan OE-T- 18" length x 10" width x 6.5" height
#12
Engine, Not Motor
iTrader: (1)
Join Date: Feb 2001
Location: London, Ontario, Canada
Posts: 29,789
Likes: 0
Received 109 Likes
on
92 Posts
My car is at my shop right now and I'm at home. Next time I am there (tomorrow...) I will measure if I remember. 10" wide is not an issue for sure, and I highly doubt 18" long is either. Mine must be at least 18" long. There is quite a lot of space in the FC muffler area.
