Mazda Factory Rebuild = Catastrophic Failure
04-30-05, 01:19 AM
#1
Mazda Factory Rebuild = Catastrophic Failure
OK.... AGAIN... another thread about my goddamn motor from Mazda. Ok, well maybe it wasn't completely their fault, but I can say I wont get another motor from them.
The problem has finally been found. After ripping through the front half and finding a simply beautiful cover, front housing, and rotor, the rear half had to sit... it just wouldnt come apart. Now, i had 3 finals today and a reason to take out some anger over a "bombed" calculus 2 final. I took a sledge to the rear iron, only to break it. However, I did manage to pull the rear apart today.

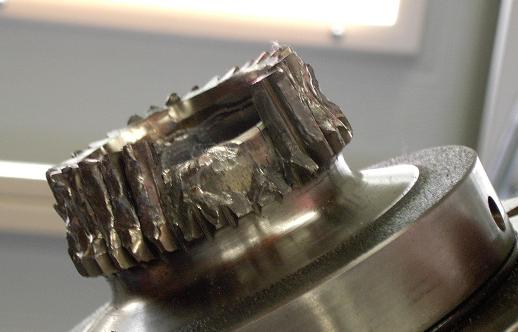

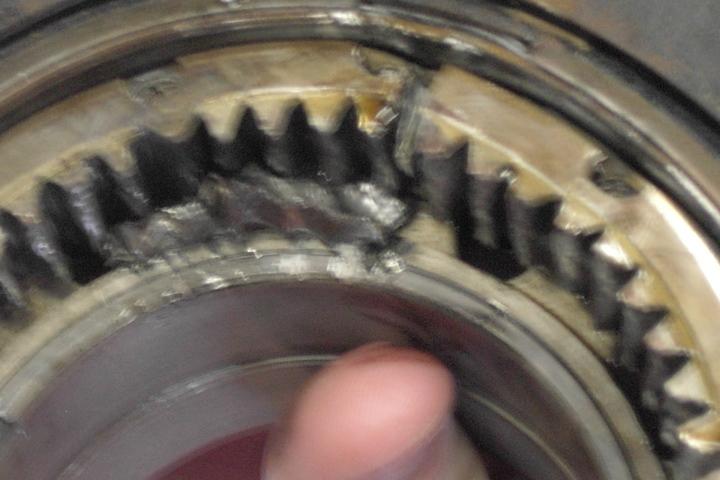

The rear stat gear had fused to the rotor. I destroyed both after tearing down the rear half, and believe me, i WILL post pics later. And think, tis just happened while I was driving.
The problem has finally been found. After ripping through the front half and finding a simply beautiful cover, front housing, and rotor, the rear half had to sit... it just wouldnt come apart. Now, i had 3 finals today and a reason to take out some anger over a "bombed" calculus 2 final. I took a sledge to the rear iron, only to break it. However, I did manage to pull the rear apart today.
The rear stat gear had fused to the rotor. I destroyed both after tearing down the rear half, and believe me, i WILL post pics later. And think, tis just happened while I was driving.
04-30-05, 01:31 AM
#2
Nurse I need 1300cc's NOW
i guess ill start by saying is that these things happen. For example, I had a fuel pump die on me in one of my cars a few years back. well, after about 4 trips back to the store with "junked, but new" pumps i finally got the car to start and run. So just because its a reman doesnt make it protected from flaws. New cars fresh off the trailer from the factory sometimes have to have reflashed ecus, or other types of work.
As for the rear stationary gear seizing up on you . You need to look at it this way. I believe that is the first bearing that sees oil from the cooler . So somehow it might have starved its self of oil. My car ran for about 1 minute with a completly crimped oil cooler line and siezed up from oil starvation. Or simply you spun a bearing. These things do tend to happen. When my front stationary gear fused onto my e-shaft it took Kevin @ rotaryresurrection about 30 minutes to sledge it off. BUt luckly the housing came apart fine and there was no damage to the houseing whats so ever.
As for the rear stationary gear seizing up on you . You need to look at it this way. I believe that is the first bearing that sees oil from the cooler . So somehow it might have starved its self of oil. My car ran for about 1 minute with a completly crimped oil cooler line and siezed up from oil starvation. Or simply you spun a bearing. These things do tend to happen. When my front stationary gear fused onto my e-shaft it took Kevin @ rotaryresurrection about 30 minutes to sledge it off. BUt luckly the housing came apart fine and there was no damage to the houseing whats so ever.
04-30-05, 01:55 AM
#3
... I'm interested in seeing pics. But that sucks. :-/
I no longer will take an alternator out of a parts store without having them test it. You only have to install a reman alternator a few times and then pull it back out again because it's not charging... you learn. And not all cars are as easy to change an alternator on as an RX-7.
-=Russ=-
I no longer will take an alternator out of a parts store without having them test it. You only have to install a reman alternator a few times and then pull it back out again because it's not charging... you learn. And not all cars are as easy to change an alternator on as an RX-7.
-=Russ=-
04-30-05, 07:13 AM
#4
Lives on the Forum
Sounds like rear stat gear bearing seized.
This means it was oil starvation.
DO YOU HAVE THE REAR / MAIN OIL PRESSUR REGULATOR INSTALLED???
It's the hex long thingy underneath in the oil pan area on the rear housing.
If it is, Mazda is going to blame you for the oil starvation.
-Ted
This means it was oil starvation.
DO YOU HAVE THE REAR / MAIN OIL PRESSUR REGULATOR INSTALLED???
It's the hex long thingy underneath in the oil pan area on the rear housing.
If it is, Mazda is going to blame you for the oil starvation.
-Ted
04-30-05, 10:14 AM
#5
Former Moderator. RIP Icemark.
Originally Posted by RETed
Sounds like rear stat gear bearing seized.
This means it was oil starvation.
DO YOU HAVE THE REAR / MAIN OIL PRESSUR REGULATOR INSTALLED???
It's the hex long thingy underneath in the oil pan area on the rear housing.
If it is, Mazda is going to blame you for the oil starvation.
-Ted
This means it was oil starvation.
DO YOU HAVE THE REAR / MAIN OIL PRESSUR REGULATOR INSTALLED???
It's the hex long thingy underneath in the oil pan area on the rear housing.
If it is, Mazda is going to blame you for the oil starvation.
-Ted
04-30-05, 11:00 AM
#6
hmmm... yeah, it was there, but mazda wont be blaming me, because it wasnt under warranty anymore, and im going to rebuild it. To tell you the truth, I would rather have mark or ted do it than get another one from mazda. hell, id even pay the 2700 i payed mazda for their work.
04-30-05, 11:00 AM
#7
IFO Forced Induction Slo
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by RETed
Sounds like rear stat gear bearing seized.
This means it was oil starvation.
DO YOU HAVE THE REAR / MAIN OIL PRESSUR REGULATOR INSTALLED???
It's the hex long thingy underneath in the oil pan area on the rear housing.
If it is, Mazda is going to blame you for the oil starvation.
-Ted
This means it was oil starvation.
DO YOU HAVE THE REAR / MAIN OIL PRESSUR REGULATOR INSTALLED???
It's the hex long thingy underneath in the oil pan area on the rear housing.
If it is, Mazda is going to blame you for the oil starvation.
-Ted
Trending Topics
................lol.........how long ago did you do yours?
04-30-05, 03:20 PM
#12
No money. No love.
iTrader: (12)
Join Date: Jul 2004
Location: SACRAMENTO
Posts: 2,807
Likes: 0
Received 0 Likes
on
0 Posts
wow...that really sucks man. I NEVER order anything from Mazda unless it's the absolute last place on earth..they steal your money and don't even give you that great of parts. I'm glad I live by Karack..if mine blows I can have him rebuild mine
Again sorry to hear your engine is so fucked up
Again sorry to hear your engine is so fucked up
04-30-05, 06:45 PM
#14
Full Member
Join Date: Apr 2002
Location: Hawaii
Posts: 96
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by bigdv519
Alright, Icemark and RETed, I hope I'm wrong in saying this. IF the main oil psi regulator IS installed, then Mazda IS NOT going to blame him for the oil starvation. If it WASNT installed, then, I think they will blame him.
Umm if the oil pressure regulator IS installed, then it wasn't Mazda's fault there for they would blame him. But if it ISN'T installed, then it was their error for not installing it when rebuilding there for it would be totally their fault.
04-30-05, 07:35 PM
#15
well, if it wasnt installed, would it have lasted 40k? if it would, i dont think it would be a needed part. but then... what do i know, this is the first time ive ever worked on one of these, but hey im only 20. anyone want to get me a rear rotor housing for my bday? may 23... the big 21... a case of beer would be cool too!
04-30-05, 08:48 PM
#16
IFO Forced Induction Slo
iTrader: (3)
Join Date: Mar 2004
Location: Houston
Posts: 1,315
Likes: 0
Received 0 Likes
on
0 Posts
Originally Posted by StonedDrone
Umm if the oil pressure regulator IS installed, then it wasn't Mazda's fault there for they would blame him. But if it ISN'T installed, then it was their error for not installing it when rebuilding there for it would be totally their fault.
I now see my mis-understanding. I was under the impression that the client was to install the oil psi gauge. I assumed he ordered the engine without the oil pan on, which doesn't make too much sense any more. I then assumed that if the client applied the oil pan, and by some small chance, forgot to install the oil psi gauge, then it would be the clients fault.
Assumption, is the Mother of all F***ups.
04-30-05, 10:21 PM
#18
Senior Member
Join Date: Sep 2002
Location: Southern California
Posts: 262
Likes: 0
Received 0 Likes
on
0 Posts
It’s confusing to me what an engine builder could have done wrong to the oiling system that takes forty thousand miles for the engine to seize. Oiling problems usually manifest themselves very early in the life of a rebuild. Did the engine have abnormal oil pressure? If so, when did it start?
04-30-05, 10:32 PM
#19
Often bearings are changed during rebuilds, and though most people would think this is a good thing, it can often be worse than leaving the originals in place if they weren't worn much. The reason being is that for some reason, many find it hard to properly install new bearings, and actually do more harm than good by installing them improperly, leading to an increased likelihood that they'll spin later on. However, a spun bearing alone isn't responsible for that stat gear damage...I've only seen that a couple of times on abused motors. It takes a LOT of force to break stat gears. I've seen irons cracked, rotors dented in, seals destroyed, bearings locked and spun, rotorhousings gouged, and still no sign of wear or trauma to the stat gears. It'd almost take an overrev situation or a foreign object inside the engine to cause that damage.

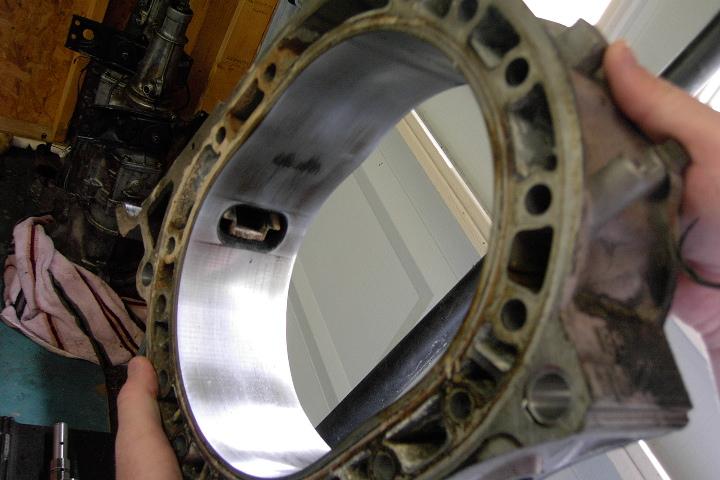

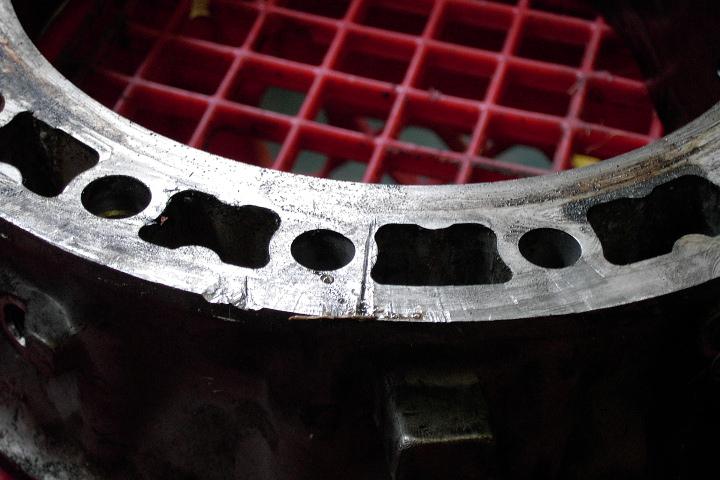

BTW, whoever tore up that damn-near-perfect rotorhousing in an effort to get the motor apart is...not the brightest. That cost you a few hundred bucks right there. What do you think that big chunk of aluminum casting on top of the rotorhousing is for? IT's used to hit on if you need to seperate stubborn stuck housings.
BTW, whoever tore up that damn-near-perfect rotorhousing in an effort to get the motor apart is...not the brightest. That cost you a few hundred bucks right there. What do you think that big chunk of aluminum casting on top of the rotorhousing is for? IT's used to hit on if you need to seperate stubborn stuck housings.
05-01-05, 03:15 AM
#22

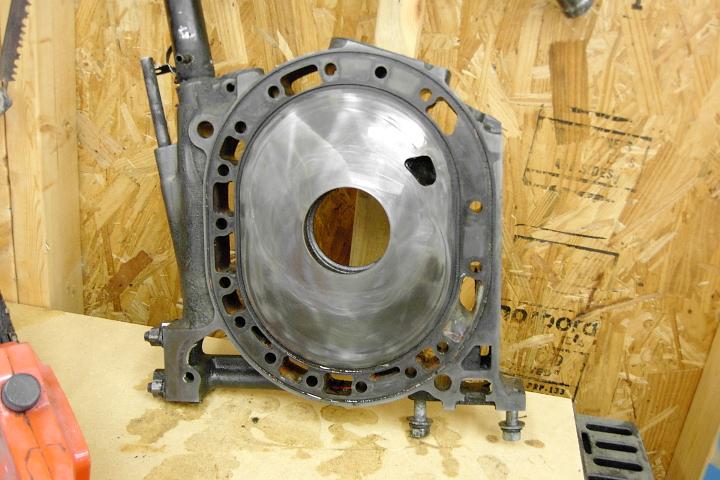

The problem is that eshafts and NA int housings are worth anywhere from $25-50 each, and readily available...meanwhile an s5 rotorhousing in that condition would go for $150-300 and will be a bit harder to come by.
IF you didnt disturb the material where the coolant seal mates to the housing, it might be okay still. It looks like it's gone, though. Perhaps someone very skilled could weld AL back on there and bring it back smooth, but itd be hard not to warp it, so I doubt so.
IF you didnt disturb the material where the coolant seal mates to the housing, it might be okay still. It looks like it's gone, though. Perhaps someone very skilled could weld AL back on there and bring it back smooth, but itd be hard not to warp it, so I doubt so.
05-01-05, 12:42 PM
#25
You wouldnt want to use an s4 because the plugholes are slightly relocated/retimed.
Any housing *in that condition* is hard to come by. From the pic of the surface area, that one looks pretty much perfect with no wear patterns, chrome flaking on the back edge, grooving, or chattering. This is rare to find, and indicative of a housing with less than 50k miles on it. Any housing with much more mileage than that WILL have some wear, and therefore will not be quite as good for a rebuild...still useable, but might make a few less psi compression when broken in than the perfect housing would have made.
Any housing *in that condition* is hard to come by. From the pic of the surface area, that one looks pretty much perfect with no wear patterns, chrome flaking on the back edge, grooving, or chattering. This is rare to find, and indicative of a housing with less than 50k miles on it. Any housing with much more mileage than that WILL have some wear, and therefore will not be quite as good for a rebuild...still useable, but might make a few less psi compression when broken in than the perfect housing would have made.
