Mazda Camber Adjuster No-No
hey guys,
Last year i bought the mazdatrix rear camber adjuster(04-7421-0000), put it in, had it aligned and nothing else. Last week I take it off and both sides of the heim joints are seized up. One side I was able to free up, but the other side is completely locked.
They used an Aluminum Body with a Steel thread causing Galvanic corrosion inside of the threads where the two dissimilar metals touch. I live in Phoenix too so its never been in the rain and its as dry a climate as could be.
To sell it without anti-seize is just not thinking ahead.
so if you have one of these i would suggest taking it off and checking it out and putting some Anti-seize onto both threads.
For Mazdatrix (me the customer) 30 cents worth of anti-seize could have saved a $130 part. I'm hoping that they'll step up to the plate to give me a free/discounted one and start putting little things of anti-seize in the new ones they're selling to protect future owners.
Last year i bought the mazdatrix rear camber adjuster(04-7421-0000), put it in, had it aligned and nothing else. Last week I take it off and both sides of the heim joints are seized up. One side I was able to free up, but the other side is completely locked.
They used an Aluminum Body with a Steel thread causing Galvanic corrosion inside of the threads where the two dissimilar metals touch. I live in Phoenix too so its never been in the rain and its as dry a climate as could be.
To sell it without anti-seize is just not thinking ahead.
so if you have one of these i would suggest taking it off and checking it out and putting some Anti-seize onto both threads.
For Mazdatrix (me the customer) 30 cents worth of anti-seize could have saved a $130 part. I'm hoping that they'll step up to the plate to give me a free/discounted one and start putting little things of anti-seize in the new ones they're selling to protect future owners.
#2
Lives on the Forum
Hmmm...interesting info.
I guess most of these things are adjusted and forgotten under there, so most would not notice a problem like yours.
I run a Ground Control unit, and it's basically the same thing - guess mine is no good too.
-Ted
I guess most of these things are adjusted and forgotten under there, so most would not notice a problem like yours.
I run a Ground Control unit, and it's basically the same thing - guess mine is no good too.
-Ted
#6
Saiga-12 Power!
iTrader: (4)
Join Date: Oct 2004
Location: N of Chicago
Posts: 4,384
Likes: 0
Received 0 Likes
on
0 Posts
Wow, you would think that mazdatrix thought of this. But I guess they slipped on this one. Maybe they usually put anti seize on them but you got one that didn't have any for some unknown reason.
Good catch though. Very good to know.
Good catch though. Very good to know.
Trending Topics
#14
Lives on the Forum
Originally Posted by Sideways7
I have a ground control unit as well, but the bottom bolt is missing altogether, it appears. I always wondered why I had crazy rear camber.
Wasn't the rear subframe banging underneath on the chassis whenever you hit a bump?
-Ted
#15
Lives on the Forum
Originally Posted by CyborgRyu
the ball is suppose to spin freely? Mine isn't....
If it spins freely by hand, it's no good, actually.
Brand new, the spherical bearing is supposed to be pretty tight.
-Ted
#17
Lives on the Forum
iTrader: (7)
Originally Posted by RETed
Wow, that's crazy.
Wasn't the rear subframe banging underneath on the chassis whenever you hit a bump?
-Ted
Wasn't the rear subframe banging underneath on the chassis whenever you hit a bump?
-Ted
That said, the car handled amazingly well. Even in the wet you could get the tail out as far as you wanted and control it 100% of the time. I actually had to work very hard to make it fishtail at all.
While I'm at it, does anyone know of a part number (or where to find it) for that bolt? Is it just the stock bolt?
Edit: assuming its the stock bolt, and I'm looking at the right part, its 2.80 from mazdamotorsports. I'm gonna have to run down to the mazda dealership to get them to sort it out for me, cause the parts catalog is a giant clusterfuck of stuff.
Last edited by Sideways7; 04-20-06 at 12:00 AM.
#18
Senior Member
Thread Starter
Join Date: Feb 2001
Location: Glendale, AZ
Posts: 337
Likes: 0
Received 0 Likes
on
0 Posts
Dang Its crazy to talk to some people and see how much this has actually happened to people other than me on both this forum and others.
I emailed Mazdatrix so hopefully this helps them out in the future.
It will be interesting to see what they say.
I emailed Mazdatrix so hopefully this helps them out in the future.
It will be interesting to see what they say.
#19
Senior Member
Thread Starter
Join Date: Feb 2001
Location: Glendale, AZ
Posts: 337
Likes: 0
Received 0 Likes
on
0 Posts
Geoff at Mazdatrix sent an email back to me saying that if i send my faulty piece back to Jay at Ground Control they will either try and fix it or replace it. Once again i'm happy that mazdatrix has shown me their great PR skills.
Jay @
Ground Control
3885 Dividend Dr
Shingle Springs CA 95682
530-677-8600 business
530-677-9090 fax
Jay @
Ground Control
3885 Dividend Dr
Shingle Springs CA 95682
530-677-8600 business
530-677-9090 fax
#21
It's only Rock and Roll
iTrader: (1)
Join Date: Sep 2004
Location: In a house...
Posts: 2,509
Likes: 0
Received 0 Likes
on
0 Posts

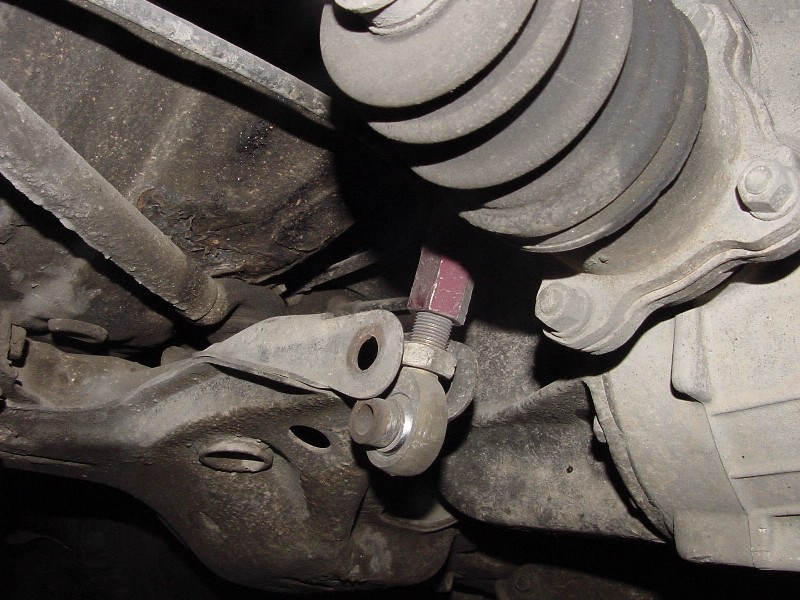

When you lower the car from new springs it throws off the camber which can't be adjusted with the fixed arm. You put this in instead and dial back in the camber as needed so your tires wear correctly. It can be lengthend or shortend by turning the unit one way or another as needed to make the adjustment. Look at the 1st pic in the thread and the other later on where it's hanging loose to see where it goes.
