Magnetic Oil Plug - Anyone use this?
#1
Magnetic Oil Plug - Anyone use this?

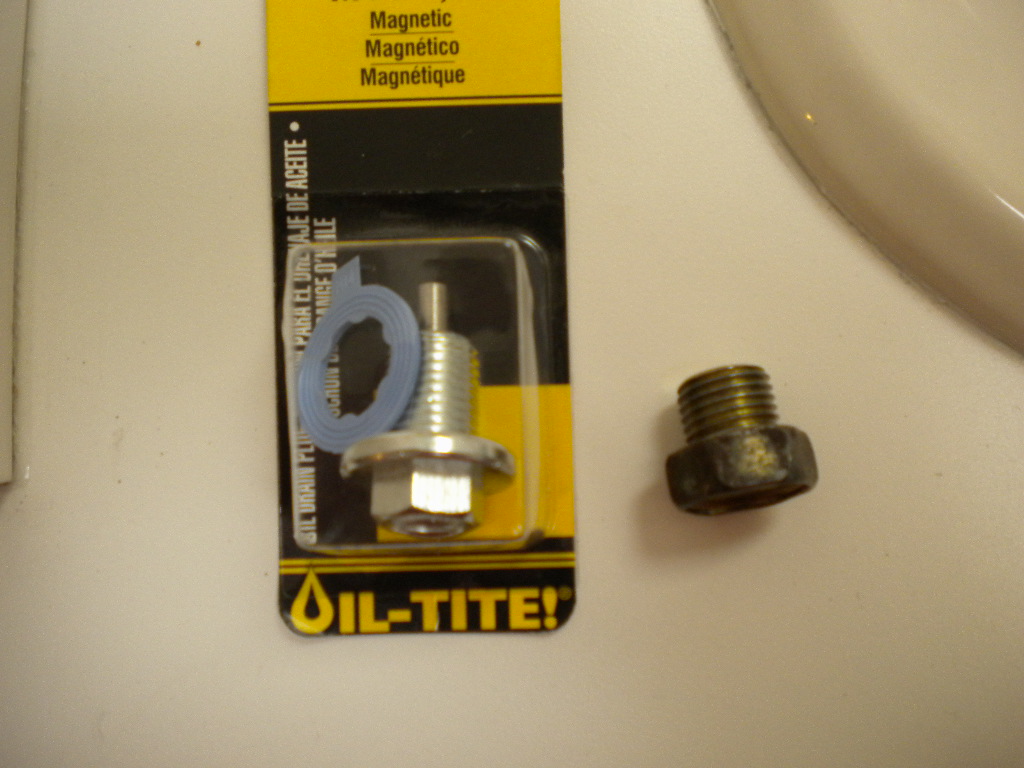

Anyone use this? I bought it but it looks Chinese cheap and I wondered if anyone has had any problems with this, like for example the magnet becoming loose, etc.? Part number is Dorman #65216. The OEM plug is next to it in the picture for comparison.
#3
Turbo power, activate!
iTrader: (7)
I used the Dorman magnetic plug for a year and I had no problem. I only took the plug out 3 times in the course of one year, the seal that comes with it isnt leaking.
If the magnet does come loose, the oil pickup filter will block it if anything. I have the same model as the picture, and from looking at it, doesnt seem like the magnet will fall out. Overtime, the magnets might get weaker which is the only downside I see.
If the magnet does come loose, the oil pickup filter will block it if anything. I have the same model as the picture, and from looking at it, doesnt seem like the magnet will fall out. Overtime, the magnets might get weaker which is the only downside I see.
#6
Dragons' Breath
Join Date: Sep 2010
Location: Pump Handle, SK. Canada
Posts: 1,129
Likes: 0
Received 2 Likes
on
2 Posts
any kind of magnet helps , If it does come loose it will just stick to the pan rifgt at the drain plug , If there is anything in the oil it will pick it up .. We use to just throw a couple in the pan before bolting it on , only thing is you can't see what it might be collecting but they do the job 24-7
Trending Topics
#10
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
I prefer aircraft-style drain valves.
http://www.quickoildrainvalve.com/
http://www.quickoildrainvalve.com/
#13
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
A rock could not open the Fumoto valve because the spring-loaded safety catch operates 90 degrees to the angle of rotation required to open the valve. The valve also takes a fair amount of force to rotate. The only way I see it accidentally opening if you are driving off-road in tall vegetation.
Other advantages of the Fumoto (or similar) valves:
- Can easily drain out some oil if you accidentally over-fill the engine.
- Easy to take a small oil sample for testing.
- If you have a low-profile drain pan, you can change the engine oil without jacking up the car.
- Never again replace the crush washer, strip the plug, fish the plug out of the oil pan, get hot oil dribbled all over your hand when removing the plug, or bash your knuckles in the ground during removal.
Aircraft valves for comparison:
http://www.aircraftspruce.com/menus/..._oildrain.html
Fram also makes a valve, but I don't like it as much because it is a 3-component design that requires more work to use.
http://www.carpictures.com/FRAM/-Sur...02LQF345838026
#14
Rotary $ > AMG $
iTrader: (7)
I think the magnet is overrated. Most aircraft don't have them, and I have been using the Fumoto valves in all of my vehicles for over 20 years with no problems. The portions of engine wear particles that are magnetic will get caught in the oil filter along with all of the non-magnetic particles. However, I think that those who like the magnet should stick with what they like, as I doubt that it hurts anything.
A rock could not open the Fumoto valve because the spring-loaded safety catch operates 90 degrees to the angle of rotation required to open the valve. The valve also takes a fair amount of force to rotate. The only way I see it accidentally opening if you are driving off-road in tall vegetation.
Other advantages of the Fumoto (or similar) valves:
- Can easily drain out some oil if you accidentally over-fill the engine.
- Easy to take a small oil sample for testing.
- If you have a low-profile drain pan, you can change the engine oil without jacking up the car.
- Never again replace the crush washer, strip the plug, fish the plug out of the oil pan, get hot oil dribbled all over your hand when removing the plug, or bash your knuckles in the ground during removal.
A rock could not open the Fumoto valve because the spring-loaded safety catch operates 90 degrees to the angle of rotation required to open the valve. The valve also takes a fair amount of force to rotate. The only way I see it accidentally opening if you are driving off-road in tall vegetation.
Other advantages of the Fumoto (or similar) valves:
- Can easily drain out some oil if you accidentally over-fill the engine.
- Easy to take a small oil sample for testing.
- If you have a low-profile drain pan, you can change the engine oil without jacking up the car.
- Never again replace the crush washer, strip the plug, fish the plug out of the oil pan, get hot oil dribbled all over your hand when removing the plug, or bash your knuckles in the ground during removal.
I am ordering one for everything.
#16
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
LOL, you may want to try one to see how you like it first. One of my friends actually likes the Fram drain valve better. I don't know of anybody who prefers the OEM plug, but I am sure that such people exist.
The F106 Regular Valve. It installs with an open-end wrench, I think 19mm.
The F106 Regular Valve. It installs with an open-end wrench, I think 19mm.
#19
Red Pill Dealer
iTrader: (10)
I've used the magnetic drain plug for years in my DD's. It does pick stuff up. Very fine stuff. But the amount is minimal. Possibly, negligible.
After extended runs, using synthetic oil, there would be a gray mud like film on the magnet one would almost overlook in the coating of well used oil. It becomes evident after wiping with a clean paper towel. There was always some on the plug every time I changed oil, and in all the cars I used them on.
After extended runs, using synthetic oil, there would be a gray mud like film on the magnet one would almost overlook in the coating of well used oil. It becomes evident after wiping with a clean paper towel. There was always some on the plug every time I changed oil, and in all the cars I used them on.
#20
Trunk Ornament
iTrader: (11)
Many vehicle manufacturers utilize magnetic oil plugs. There can really be no harm possible, only benefit. I've changed oil in many cars, and have definitely removed a fair amount of crud from each one. Not as much as a transmission pan magnet collects, but it's enough for me to not want to not use one.... if that makes sense.
#22
Rabbit hole specialist
iTrader: (11)
The Fumoto valves are awesome. I can also vouch for them. I installed one in my TII as soon as I got it. Oil changes are super quick and now require absolutely zero tools. It has never leaked on me. I have a low profile drain pan and jacking the car is unnecessary. Your mileage may vary there depending on how low your car is.
Edit: As a side note, in their FAQ, they recommend a simple hose clip in serious off road applications in which accidental opening may be a concern.
http://www.quickoildrainvalve.com/Se...ts.asp?Cat=305
Edit: As a side note, in their FAQ, they recommend a simple hose clip in serious off road applications in which accidental opening may be a concern.
http://www.quickoildrainvalve.com/Se...ts.asp?Cat=305
Last edited by JerryLH3; 03-01-12 at 10:31 AM.
#24
Rotorhead
Join Date: Feb 2001
Location: Charlottesville, Virginia, USA
Posts: 9,136
Likes: 0
Received 39 Likes
on
33 Posts
Sometimes.
