low fuel light prob solved
hello all,
I recently did a great repair on my 88 turbo 2, I had an inop fuel light.
This is a common prob on many cars.
The low fuel light does not come on.
What I did was first grounded the wire to check if the circuit worked, without
using the sensor/fuel sending unit in the equation.
My light came on in the warning cluster so I knew I had a bad sensor.
Having never checked the sensor out or knowing what type/principal it was,
I pulled the sending unit out and with a few ohms checks, figured out the culprit.
Its the shiny little silver can in the sending unit, and its a thermistor.
It provides continuity to ground when it is out of the flow of gasoline-wet.
The thermistors just turn to powder, disenegrate and wear away over time.
Mine was totally crumbled inside.
I checked every vendor I could find to see who still made the sensors.
Panasocnic made one similar. however they recently discontinued it.
However I found an exact replacement, and they are used on yamaha motorcycles.
They use the same sensor can, a virtually identical part.
So I bought an 8 year old one off ebay for 18 bucks.
It was a very simple repair, I just removed the old can, and soldered on the new one.
It is a one wire setup. Now my fuel light works perfectly.
I took a few pics of the process and may post them.
I recently did a great repair on my 88 turbo 2, I had an inop fuel light.
This is a common prob on many cars.
The low fuel light does not come on.
What I did was first grounded the wire to check if the circuit worked, without
using the sensor/fuel sending unit in the equation.
My light came on in the warning cluster so I knew I had a bad sensor.
Having never checked the sensor out or knowing what type/principal it was,
I pulled the sending unit out and with a few ohms checks, figured out the culprit.
Its the shiny little silver can in the sending unit, and its a thermistor.
It provides continuity to ground when it is out of the flow of gasoline-wet.
The thermistors just turn to powder, disenegrate and wear away over time.
Mine was totally crumbled inside.
I checked every vendor I could find to see who still made the sensors.
Panasocnic made one similar. however they recently discontinued it.
However I found an exact replacement, and they are used on yamaha motorcycles.
They use the same sensor can, a virtually identical part.
So I bought an 8 year old one off ebay for 18 bucks.
It was a very simple repair, I just removed the old can, and soldered on the new one.
It is a one wire setup. Now my fuel light works perfectly.
I took a few pics of the process and may post them.
03-29-10, 06:23 PM
#4
Senior Member
Thread Starter
iTrader: (4)
Join Date: Apr 2004
Location: omaha
Posts: 304
Likes: 0
Received 0 Likes
on
0 Posts
There were a few other applications where the identical silver can thermistor are used.
A few were in riding lawn mowers to intermediate tractors, and the other was yamaha motorcycles. The other bike makes did have a similar sensor, but the yamaha one looked a
little better in the pics.
The most widely used one I found was off the 1998-2003 series street bikes.
They all seemed to use the same one.

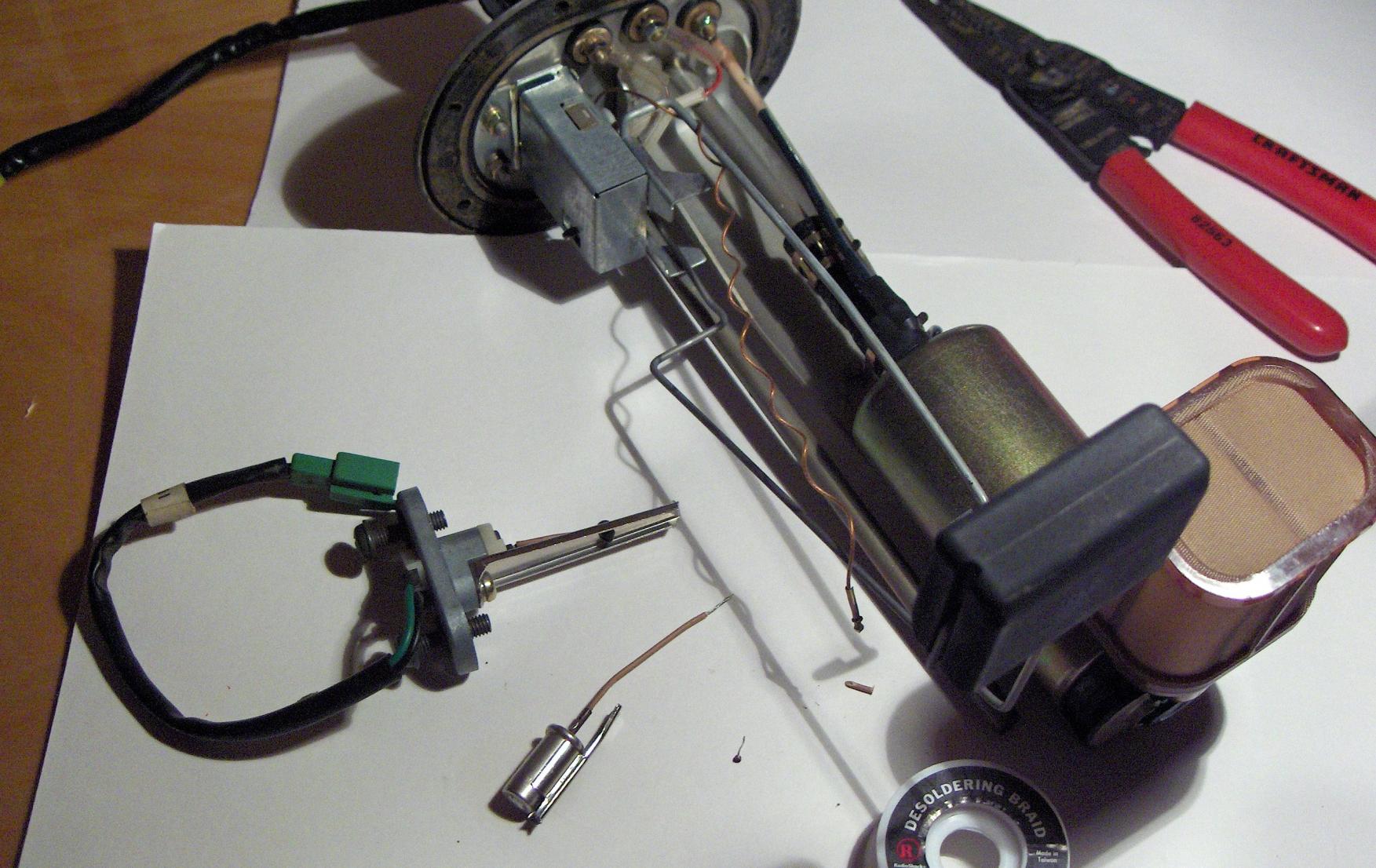

Below is a picture of the turbo sending unit and the replacement sensor I found.
